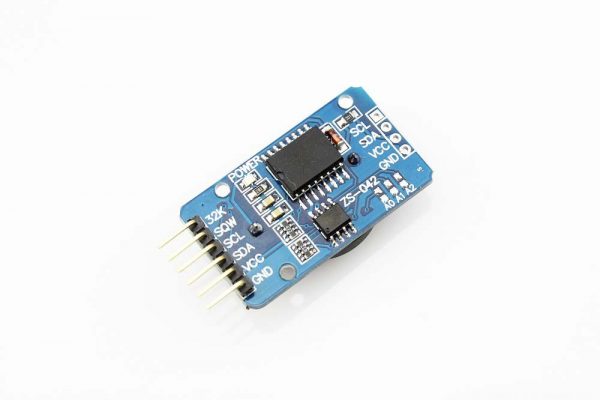

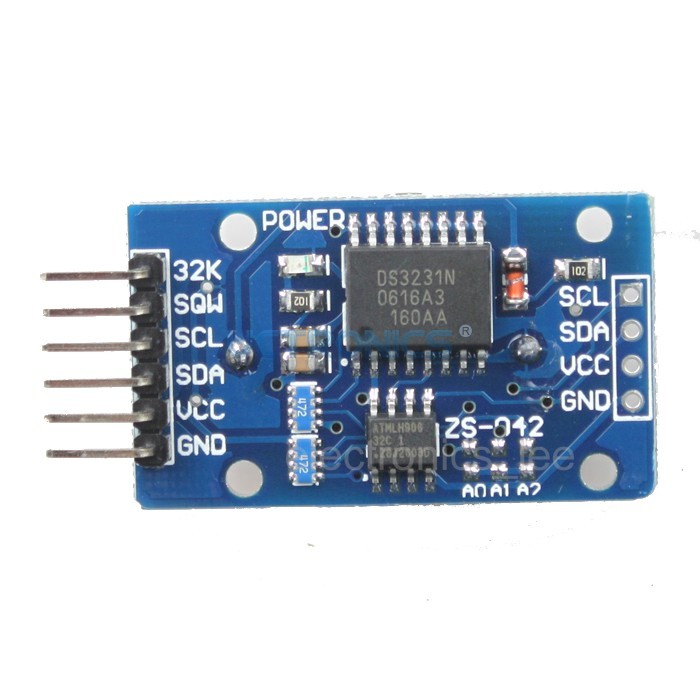

DS3231 AT24C32 高精度時鐘模組 for Arduino IIC 儲存模組

DS3231是低成本、高精度I2C即時時鐘(RTC)，具有集成的溫補晶振(TCXO)和晶體。該器件包含電池輸入端，斷開主電源時仍可保持精確的計時。集成晶振提高了器件的長期精確度，並減少了生產線的元件數量。DS3231提供商用級和工業級溫度範圍，採用16引腳300mil的SO封裝。

尚有庫存

Add to Wishlist

貨號： 967443221 分類：用戶介面/輸入輸出標籤： DS3231, RTC, 時鐘模組

商品說明
評論 (0)
交流討論

商品說明

新款 DS3231 AT24C32 高精度時鐘模組 for Arduino IIC 儲存模組

RTC保存秒、分、時、星期、日期、月和年資訊。少於31天的月份，將自動調整月末的日期，包括閏年的修正。時鐘的工作格式可以是24小時或帶/AM/PM指示的12小時格式。提供兩個可設置的日曆鬧鐘和一個可設置的方波輸出。位址與資料通過I2C雙向匯流排序列傳輸。

精密的、經過溫度補償的電壓基準和比較器電路用來監視VCC狀態，檢測電源故障，提供重定輸出，並在必要時自動切換到備份電源。另外，/RST監視引腳可以作為產生μP復位的手動輸入。

除計時精度高之外，DS3231還具有一些其它功能,這些功能擴展了系統主機的附加功能和選擇範圍。該器件內部集成了一個非常精確的數位溫度感測器，可通過I2C*介面對其進行訪問(如同時間一樣)。這個溫度感測器的精度為±3°C。片上控制電路可實現自動電源檢測，並管理主電源和備用電源(即低壓電池)之間的電源切換。如果主電源掉電，該器件仍可繼續提供精確的計時和溫度，性能不受影響。當主電源重新加電或電壓值返回到容許範圍內時，片上重定功能可用來重新開機系統微處理器。

模組參數

■尺寸：38mm(長)*22mm(寬)*14mm(高)
■重量：8g
■工作電壓：3.3–5.5V
■時鐘晶片：高精度時鐘晶片DS3231
■時鐘精度：0-40℃範圍內,精度2ppm,年誤差約1分鐘
■帶2個日曆鬧鐘
■可程式設計方波輸出
■即時時鐘產生秒、分、時、星期、日期、月和年計時，並提供有效期到2100年的閏年補償
■晶片內部自帶溫度感測器,精度為±3℃
■存儲晶片：AT24C32(存儲容量32K)
■IIC匯流排介面,最高傳送速率400KHz(工作電壓為5V時)
■可級聯其它IIC設備,24C32位址可通過短路A0/A1/A2修改,默認地址為0x57
■帶LIR2032電池,保證系統斷電後,時鐘任然正常走動
■接線說明(以Arduino uno r3為例)

VCC -> Arduino 5V

GND -> Arduino GND

SCL -> SCL or A5

SDA -> SDA or A4

Tronixlabs Arduino tutorial
Raspberry Pi tutorial
Maurice Castro’s Pi tutorial
You can use this DS3231 Arduino library
DS3231 product page
DS3231 data sheet
Atmel AT24C32 home page
Equivalent to adafruit 3013

函數庫下載 http://www.rinkydinkelectronics.com/library.php?id=73

// DS3231_Serial_Easy
