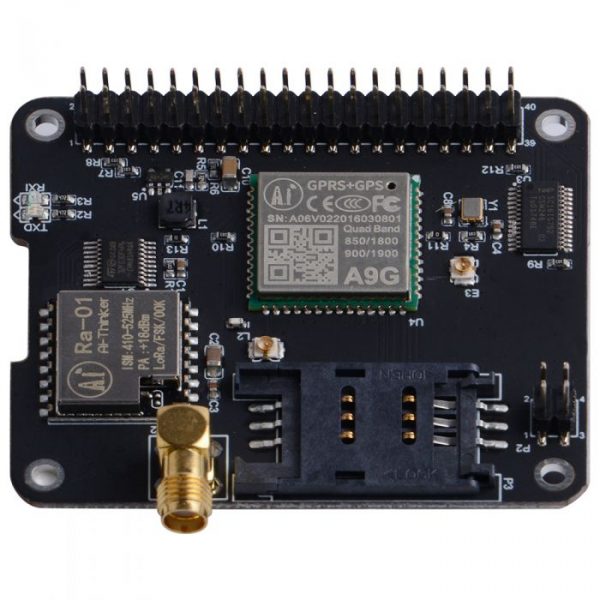

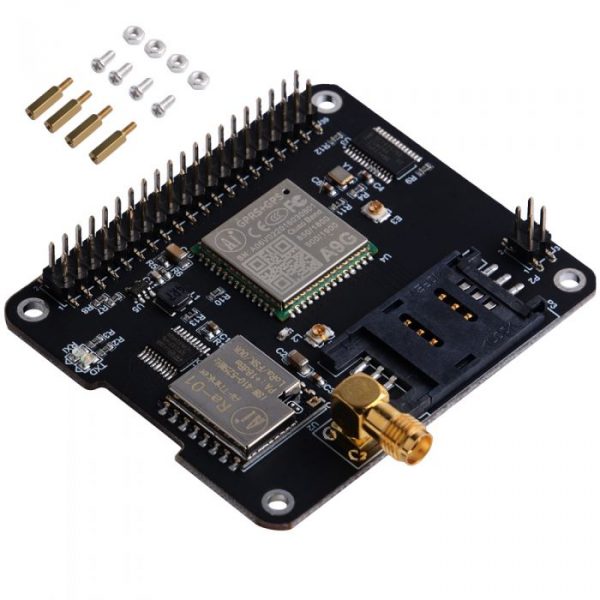

DockerPi IoT Node(A) GPS / BDS + GSM + Lora 模組 for Raspberry Pi

規格參數

GPRS部分

• 低功耗，待機休眠電流<1mA
• 支持GSM / GPRS，四個頻段，包括850,900,1800,1900MHZ;
• GPRS Class 10;
• 支持GPRS數據業務，最大數據速率，下載85.6Kbps，上傳42.8Kbps;
• 支持標準GSM07.07,07.05 AT命令，並通過I2C接口轉換訪問串口。
• AT命令支持標準AT和TCP / IP命令端口

GPS部分

• 支持BDS / GPS聯合定位
• 支持A-GPS，A-BDS
• 支持標準SIM卡

LORA部分

• 傳輸距離：500米（射頻參數：0x50 @中國城）
• 支持FSK，GFSK，MSK，GMSK，LoRaTM和OOK調製方法
• 超高接收靈敏度低至-141 dBm
• 支持前導碼檢測
• 具有CRC的分組引擎，最多256個字節
• LORA收發器指示燈
• Docker Pi的簡易TX / RX

尺寸

Description

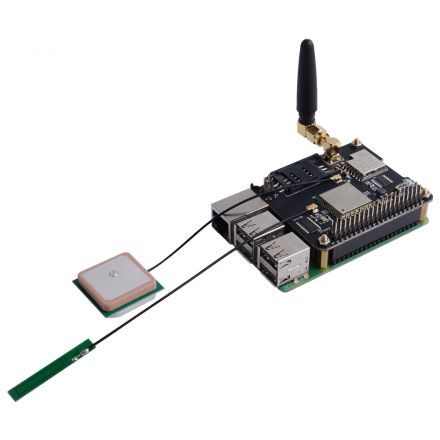

IoT Node(A) is one of Docker Pi series modules.
IoT Node(A) = GPS/BDS + GSM + Lora.
I2C directly controls Lora, sends and receives data, controls the GSM/GPS/BDS module through SC16IS752, the mainboard only needs I2C support.

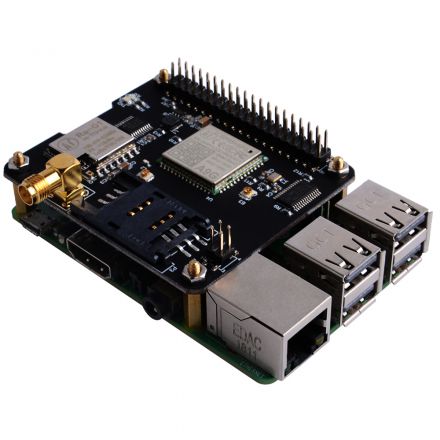

Support Raspberry Pi and other similar products.

Features

• Docker Pi Series
• Programmable
• Control directly(without programming)
• Extend the GPIO Pins
• GPS/BDS Support
• GSM Support
• Lora Support
• Can Stack with other Stack board
• Independent of the mainboard hardware (require I2C support)

Specifications

GPRS section

• 1. Low power consumption, standby sleep current <1mA
• 2. Support GSM/GPRS, four frequency bands, including 850, 900, 1800, 1900MHZ;
• 3. GPRS Class 10;
• 4. Support GPRS data service, maximum data rate, download 85.6Kbps, upload 42.8Kbps;
• 5. Support standard GSM07.07, 07.05 AT commands, and access the serial port through I2C interface conversion.
• 6. AT commands support standard AT and TCP/IP command ports

GPS section

• 1. Support BDS/GPS joint positioning
• 2. Support A-GPS, A-BDS
• 3. Support standard SIM card

LORA section

• 1. Transmission distance:500 Meters (RF parameters: 0x50 @ China City)
• 2. Support FSK, GFSK, MSK, GMSK, LoRaTM, and OOK modulation methods
• 3. Ultra-high receiver sensitivity as low as -141 dBm
• 4. Support preamble detection
• 5. Packet engine with CRC, up to 256 bytes
• 6. LORA transceiver indicator
• 7. Easy TX/RX by Docker Pi

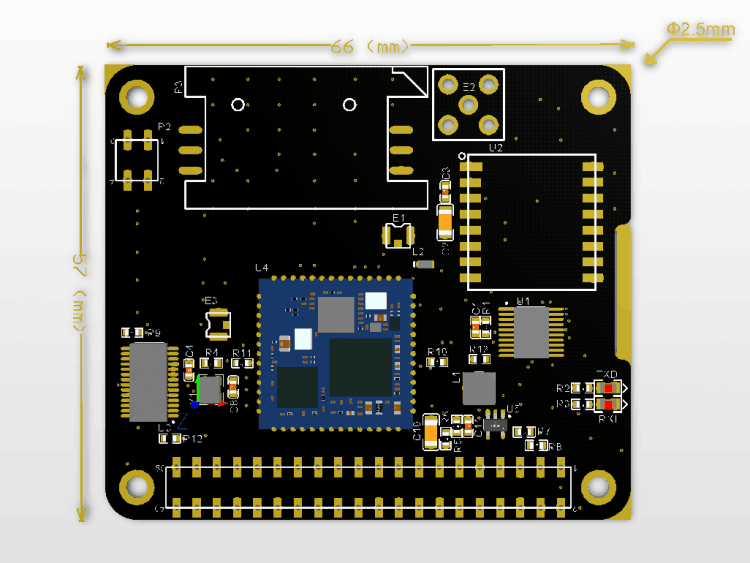

Mechanical Drawing
