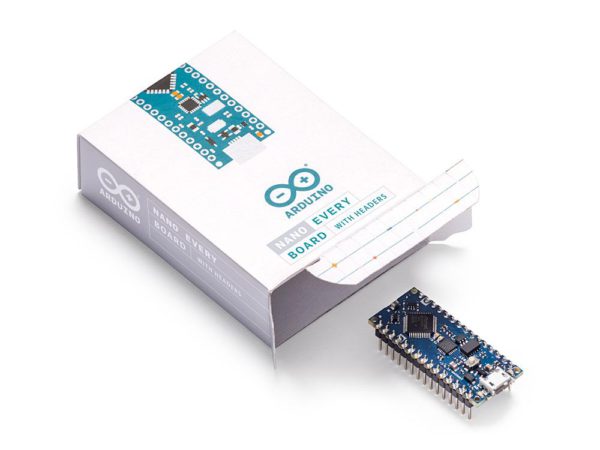

Arduino Nano Every 原廠公司貨 ATMega4809 已焊針腳
NT$762 NT$600 未稅
尚有庫存
- 商品說明
商品說明

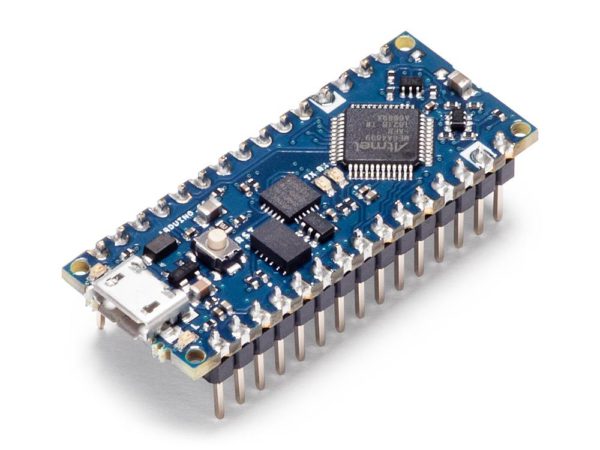

Nano Every 是 Arduino 相容5V開發板,尺寸最小:45 * 18 mm
Arduino Nano 是許多需要小型且易於使用的微控制器板的項目的首選板。 佔地面積小和價格低廉,使 Nano Every 特別適合可穿戴發明、低成本機器人、電子樂器以及控制大型項目中較小部分的一般用途。
Arduino Nano Every 是傳統 Arduino Nano 板的演變,但具有更強大的處理器 ATMega4809。 這將允許您製作比 Arduino Uno 更大的程序(它的程序內存多 50%),並且有更多的變量(RAM 大 200%)。
改進的 Arduino Nano
如果您過去在項目中使用過 Arduino Nano,那麼 Nano Every 是一個相同引腳定義的替代品。 主要區別在於有更好的處理器和微型 USB 連接器。

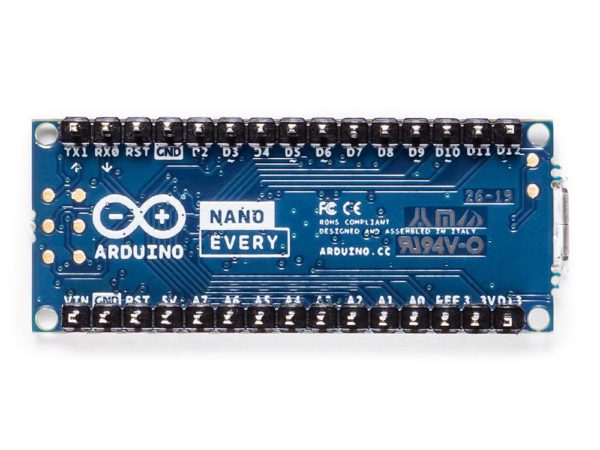

該板有兩種選擇:帶或不帶接頭,允許您將 Nano Every 嵌入任何類型的發明中,包括可穿戴設備。 該板帶有鑲嵌的連接器,B 側沒有組件。 這些功能允許您將電路板直接焊接到您自己的設計上,從而最大限度地降低整個原型的高度。
技術規格:

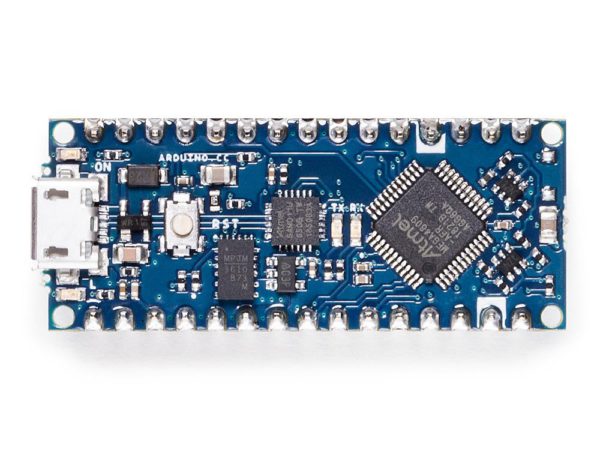

The Arduino Nano Every is based on the ATMega4809 microcontroller.
Microcontroller | ATMega4809 (datasheet) |
Operating Voltage | 5V |
VIN min-MAX | 7-21V |
DC Current per I/O Pin | 20 mA |
DC Current for 3.3V Pin | 50 mA |
Clock Speed | 20MHz |
CPU Flash Memory | 48KB (ATMega4809) |
SRAM | 6KB (ATMega4809) |
EEPROM | 256byte (ATMega4809) |
PWM Pins | 5 (D3, D5, D6, D9, D10) |
UART | 1 |
SPI | 1 |
I2C | 1 |
Analog Input Pins | 8 (ADC 10 bit) |
Analog Output Pins | Only through PWM (no DAC) |
External Interrupts | all digital pins |
LED_BUILTIN | 13 |
USB | Uses the ATSAMD11D14A (datasheet) |
Length | 45 mm |
Width | 18 mm |
Weight | 5 gr (with headers) |
文件檔案:
https://content.arduino.cc/assets/NanoEveryV30.zip
https://content.arduino.cc/assets/NANOEveryV3.0_sch.pdf

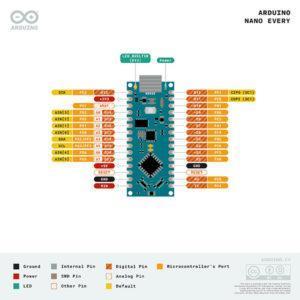

問題:關於電路板之電池引腳和LED解說
電池:Nano Every 沒有電池連接器,也沒有充電器。 只要您遵守電路板的電壓限制,您就可以連接任何您喜歡的外部電池。
Vin:此引腳可用於通過直流電壓源為電路板供電。 如果通過該引腳供電,則 USB 電源斷開。 該引腳是一個輸入。 遵守 7-21V 的電壓限制,以確保電路板的正常功能。
5V:當從 USB 連接器或電路板的 VIN 引腳供電時,此引腳從電路板輸出 5V。
3.3V:該引腳通過板載穩壓器輸出3.3V。
LED 亮起:此 LED 連接到來自 USB 或 VIN 的 5V 輸入。
Batteries, Pins and board LEDs
Batteries: the Nano Every has no battery connector, nor charger. You can connect any external battery of your liking as long as you respect the voltage limits of the board.
Vin: This pin can be used to power the board with a DC voltage source. If the power is fed through this pin, the USB power source is disconnected. This pin is an INPUT. Respect the voltage limits of 7-21V to assure the proper functionality of the board.
5V: This pin outputs 5V from the board when powered from the USB connector or from the VIN pin of the board.
3.3V: This pin outputs 3.3V through the on-board voltage regulator.
LED ON: This LED is connected to the 5V input from either USB or VIN.
