Gravity: Analog Turbidity Sensor 水濁度感測器 水質檢測 養殖環境監測 For Arduino DFRobot原廠

NT$648 NT$552 未稅

濁度感測器利用光學原理,通過測量溶液中的透光率和散射率來綜合判斷溶液濁度情況,從而達到檢測水質的目的。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

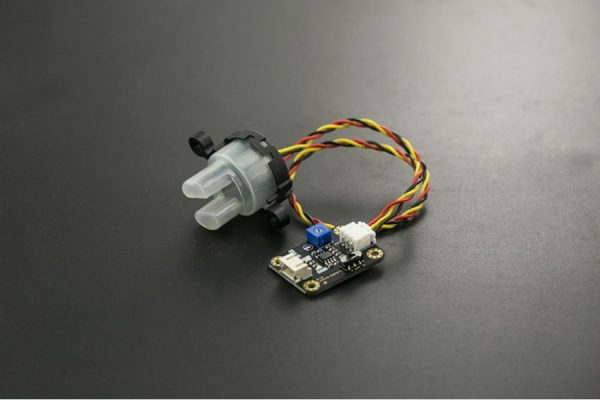

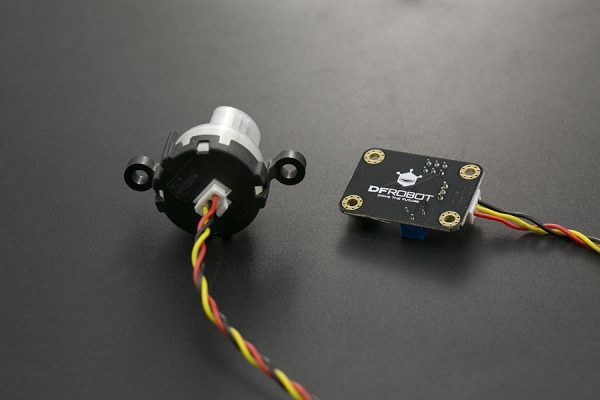

Gravity: Analog Turbidity Sensor For Arduino 水濁度感測器 水質 養殖環境監測 DFRobot原廠

濁度感測器利用光學原理,通過測量溶液中的透光率和散射率來綜合判斷溶液濁度情況,從而達到檢測水質的目的。

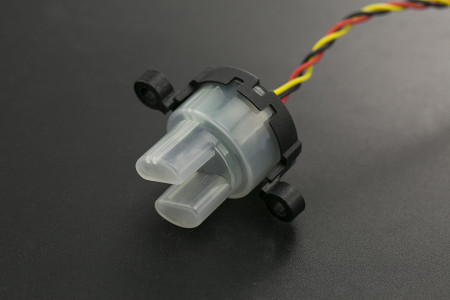

感測器內部是一個紅外線對管,當光線穿過一定量的水時,光線的透過量取決於該水的污濁程度,水越污濁,透過的光就越少。

感測器可以用於洗衣機、洗碗機,魚缸等產品的水污濁程度的測量。通過測量水的污濁程度來判斷溶液的潔淨程度,確定換水時間,達到減少能耗和節約用水的目的。也可以用於河流,污水的測量,澄清池檢測和水質研究等等。

感測器提供類比信號和數位信號兩種輸出模式。相容Gravity 3-Pin介面,可直連Arduino擴展版,免除二次接線的麻煩,簡單實用。

注意:感測器探頭頂端不防水,請勿浸沒使用,切記!

規格參數

  • 工作電壓:5VDC
  • 工作電流:40mA (MAX)
  • 回應時間:<500ms
  • 絕緣電阻:100MΩ (Min)
  • 模擬量輸出:0-4.5V
  • 數位量輸出:高/低電平信號(可以通過調節電位器選擇對應閾值)
  • 操作溫度:-30℃~80℃
  • 存儲溫度:-10℃~80℃
  • 重量:30g
  • 轉接板尺寸:38mm*28mm*10mm

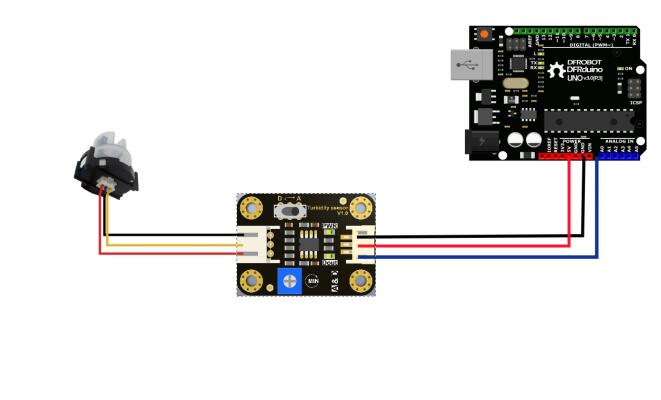

接線圖

Arduino 水濁度感測器 水質 養殖環境監測



出貨清單

  • Turbidity sensor adapter x1
  • Turbidity sensor probe x1
  • Turbidity sensor cable x1
  • Gravity analog sensor cable x1



Documents



=========================================================



Gravity: Analog Turbidity Sensor For Arduino

The arduino turbidity sensor detects water quality by measuring level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. You may also check Liquid Sensor Selection Guide to get better familar with our liquid sensor series.

This arduino turbidity sensor have both analog and digital signal output modes. You can select the mode according to the MCU as threshold is adjustable in digital signal mode.

Turbidity sensors can be used in measurement of water quality in rivers and streams, wastewater and effluent measurements, sediment transport research and laboratory measurements.

SPECIFICATION

  • Operating Voltage: 5V DC
  • Operating Current: 40mA (MAX)
  • Response Time: <500ms
  • Insulation Resistance: 100M (Min)
  • Output Method:Analog
  • Analog output: 0-4.5V
  • Digital Output: High/Low level signal (you can adjust the threshold value by adjusting the potentiometer)
  • Operating Temperature: 5℃~90 ℃
  • Storage Temperature: -10℃~90℃
  • Weight: 30g
  • Adapter Dimensions: 38mm*28mm*10mm/1.5inches *1.1inches*0.4inches

DOCUMENTS

SHIPPING LIST

  • Turbidity sensor adapter x1
  • Turbidity sensor probe x1
  • Turbidity sensor cable x1
  • Gravity analog sensor cable x1
