5KG 微型秤重感測器 / 電子秤 微型重量傳感器

NT$140 未稅

尚有庫存

貨號: 274514118(B5-1) 分類: 標籤: ,
  • 商品說明

商品說明

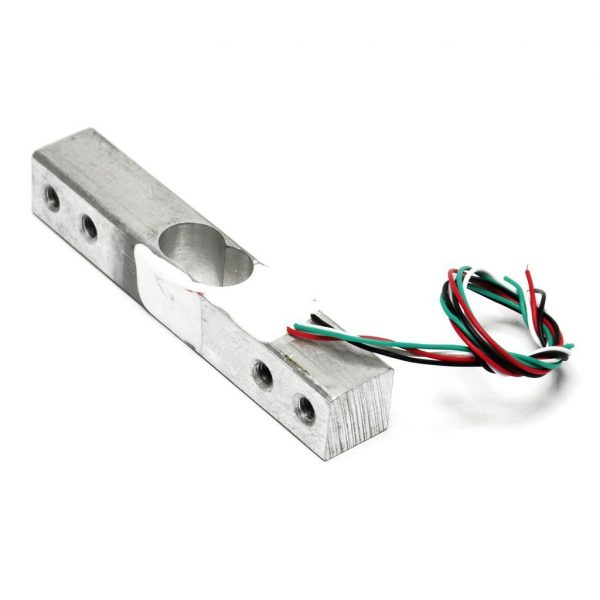

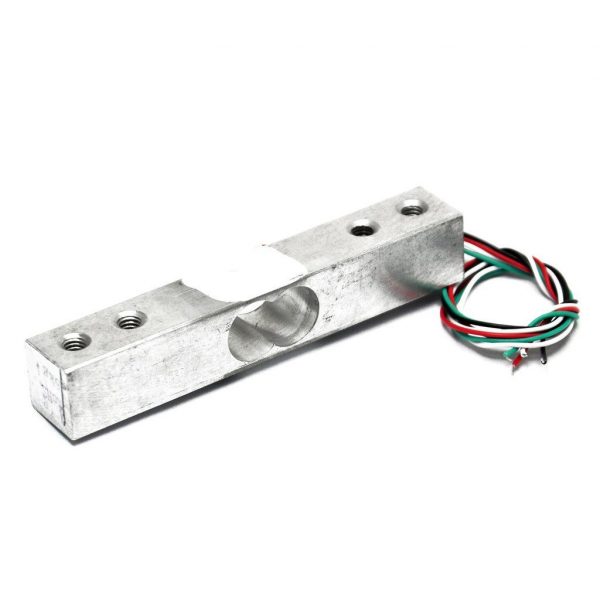

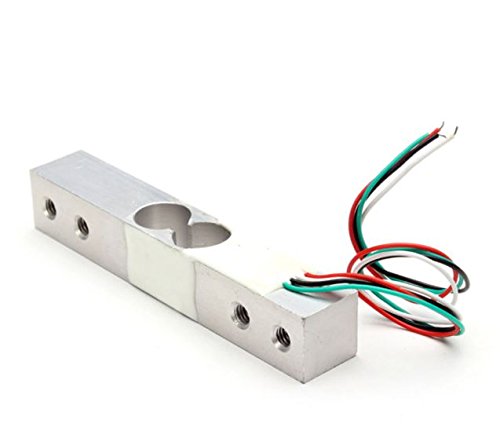

5KG 微型秤重感測器 / 電子秤  微型重量傳感器

5Kg Weighing Scale Pressure Sensor for Arduino Load Cell

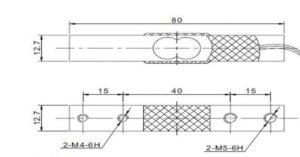

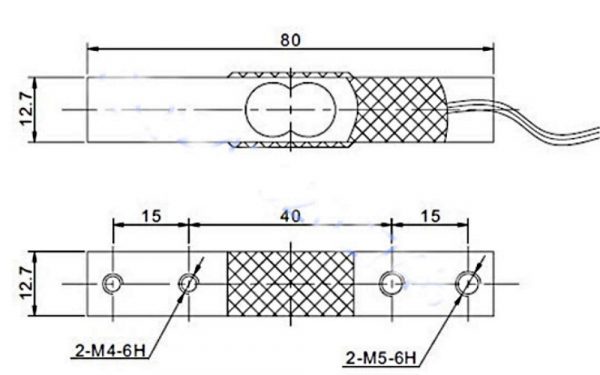

四引線,使用簡單,加5-10V驅動電壓,受力變化直接輸出為電壓信號. 5KG 尺寸:80*12.7*12.7MM

接線方式:紅:電源+,黑:電源-,綠:輸出信號+,白:輸出信號。傳感器一端通過螺絲孔固定,另一端保持懸空狀態,按標籤指示方向施加重力. 特別要注意,一定不要直接按壓白色覆膠部分,以免破壞本傳感器.

The sensor is fixed at one end through the screw hole, and the other end left floating state, applied according to label directions direction of gravity. In particular, note that you must not directly push the white plastic cover part, in order to avoid damage of the sensor.
