4路 雙電平轉換模組 邏輯準位轉換 Logic Level Converter 3.3V 5V 互轉

商品說明

4路 雙電平轉換模組 邏輯準位轉換 Logic Level Converter 3.3V <-> 5V 互轉

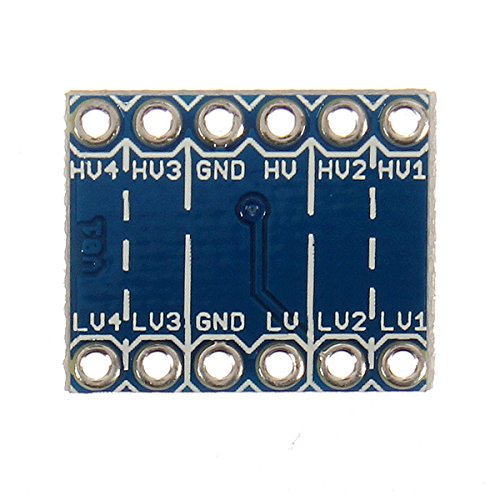

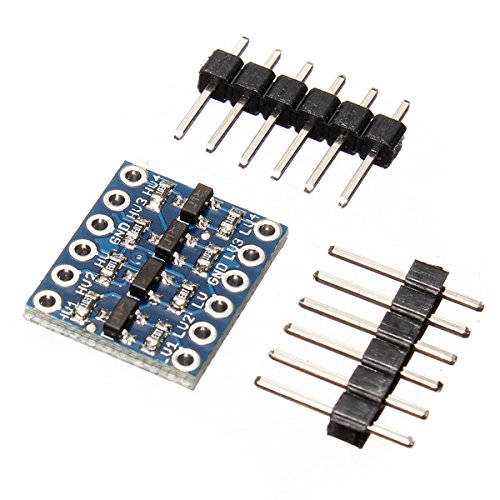

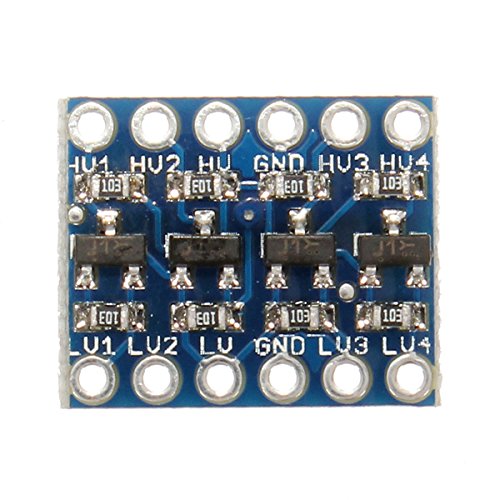

4路雙向電平轉換模組 (BSS138方案) Logic Level Converter Bi-Directional,  5/3.3V 邏輯準位互轉 (最低可轉至1.8V) , 通用任何數位訊號轉換, SPI, I2C, UART …

產品特性：

1、4個High Speed MOSFET(BSS138)實現四路高電平和低電平的邏輯準位雙向轉換(3.3V/5V 輕鬆互轉)

2、 邏輯準位轉換輕鬆互轉 (最高可到轉40V最低可轉至1.8V)

3、通用任何數位訊號轉換 如:UART、IIC、1-wire，SPI等匯流排信號3.3V/5V電平的快速雙向轉換

• HV接5V電源
• LV接3.3V電源
• GND接電源負極，兩個電源公地
• LVx輸入輸出3.3V TTL ，HVx輸入輸出5V TTL， LVx與TVx雙向互轉

If you’ve ever tried to connect a 3.3V device to a 5V system, you know what a challenge it can be. The bi-directional logic level converter is a small device that safely steps down 5V signals to 3.3V AND steps up 3.3V to 5V at the same time. This level converter also works with 2.8V and 1.8V devices. What really separates this Logic level converter from our previous versions is that you can successfully set your high and low voltages and step up and down between them safely on the same channel. Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

The level converter is very easy to use. The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the ‘HV’ pin, low voltage (3.3V for example) to ‘LV’, and ground from the system to the ‘GND’ pin.
