新版 3.6V Micro hydro generator – 微型水輪發電機 seeed原廠

商品說明

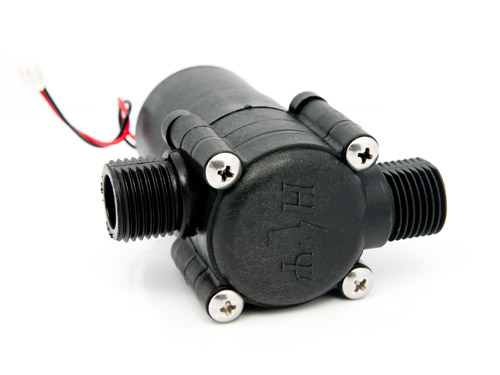

3.6V Micro hydro generator – 微型水輪發電機

這 G1 /2 微型水輪發電機為您提供最環保的再生能源發電機制，本發電機的輸出是在3.6V穩定。和電池的容量是相對於舊版本從300mAh到700mAh的改善。

特徵

• 內置鋰電池
• 內置Lipo充電電路
• 穩定的電壓輸出
• 高電池容量



規格參數

• 工作壓力：<2KGF
• 壓降：0.4巴（3.0升/分鐘）
• 峰值電流：1.4 A.
• 待機電流：最大值 1.4A
• 電壓輸出：3.6VDC — 700mAh
• 功率輸出：125mW（4LPM）
• 電池容量：300mAh
• 最大。流量：20 L / Min（2KGF）
• 防水性：IP4
• 高限電壓：4.3VDC
• 尺寸：L 84.5 mm – W 64.5 mm – H 81 mm
• 線長：84毫米
• 插座類型：JWT C2521端子插頭
• 連接螺紋量規：G 1/2“
• 重量：165±5克
• 爆破壓力：20KGF
• 正常運行溫度 4°C~80°C
• 最大。間歇性工作溫度 最高110°C 30分鐘
• 生成模型：NACuM核心（PAT NO.DE202006004800）
• 電池類型：帶PCM的鋰聚合物電池
• 出入水口管徑：0.8inch



出貨清單

• 3.6V發電機 x1



Documents

• Wiki
• British Standard Pipe (BSP)



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



3.6V Micro hydro generator

This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside, the output of this generator is stable at 3.6V. And the capacity of battery is improved from 300mAh to 700mAh compared to the old version.

Time to replace the Li-po batteries in your waterside projects with the green and more accessible hydro power.

FEATURES

• ŸBuilt-in Lithium Battery
• Ÿ• ŸBuilt-in Lipo Charging Circuit
• Ÿ• ŸStabilized Voltage Ouput
• Ÿ• ŸHigh Battery Capacity

SPECIFICATION

• Ÿ• ŸWorking Pressure: < 2KGF
• Ÿ• ŸPressure Drop: 0.4 Bar (3.0 L / Min )
• Ÿ• ŸPeak Current: 1.4 A
• Ÿ• ŸStand-by Current: Max. 1.4A
• Ÿ• ŸVoltage Output: 3.6VDC — 700mAh
• Ÿ• ŸPower Output: 125mW (4LPM)
• Ÿ• ŸBattery Capacity: 300mAh
• Ÿ• ŸMax. Flow: 20 L / Min ( 2KGF)
• Ÿ• ŸWater-resistance: IP4
• Ÿ• ŸHigh limited voltage: 4.3VDC
• Ÿ• ŸDimensions: L 84.5 mm – W 64.5 mm – H 81 mm
• Ÿ• ŸWire Length: 84 mm
• Ÿ• ŸJack Type: JWT C2521 Terminal Plug
• Ÿ• ŸConnect Thread Gauge: G 1/2″
• Ÿ• ŸWeight: 165 ± 5g
• Ÿ• ŸBurst Pressure: 20KGF
• Ÿ• ŸNormal Operation Temp. 4 °C~80 °C
• Ÿ• ŸMax. Intermittent Operating Temp. 110 °C max. 30 min
• Ÿ• ŸGenerating Model: NACuM Core (PAT NO.DE202006004800)
• Ÿ• ŸBattery Type: Li-polymer Battery with PCM

DOCUMENTS

• Ÿ• ŸWiki Page
• Ÿ• ŸBritish Standard Pipe (BSP)



This G1/2 micro hydro generator provides you clean and renewable electricity. With the help of the regulator circuit inside, the output of this generator is stable at 3.6V. And the capacity of battery is improved from 300mAh to 700mAh compared to the old version.
