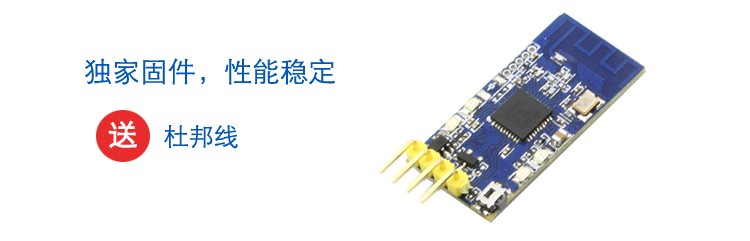

2.4G zigbee CC2530 無線串口收發模組 DL-20 250米長距離

NT$476 NT$333 未稅

2.4G zigbee CC2530 無線串口收發模組 CC2530 數據透傳 支援點對點廣播模式 TTL

本模組可以實現串口資料透傳,使用它就像使用一個串口模組一樣簡單。你無需瞭解複雜的ZigBee協定,卻擁有ZigBee網路的優勢。

  • TI CC2530 完全相容符合2.4G IEEE 802.15.45之規範
  • TI CC2530 完全符合ZigBee PRO(ZigBee 2007)協議規範
  • 支援 UART 串口介面

尚有庫存

貨號: DL-20(A4-14) 分類: 標籤: , , , , ,
  • 商品說明

商品說明

2.4G zigbee CC2530  DL-20 無線串口收發模組 CC2530 數據透傳 支援點對點廣播模式 TTL 250米長距離

本模組可以實現串口資料透傳,使用它就像使用一個串口模組一樣簡單。你無需瞭解複雜的ZigBee協定,卻擁有ZigBee網路的優勢。

  • TI CC2530 完全相容符合2.4G IEEE 802.15.45之規範
  • TI CC2530 完全符合ZigBee PRO(ZigBee 2007)協議規範
  • 支援 UART 串口介面

 USB接口的用戶,可選配USB轉TTL線   PL2303HX USB 轉 TTL 序列傳輸線

無線串口配置視頻: http://www.tudou.com/programs/view/gJOcbx7MX4w/

Zigbee CC2530 2.4G Wireless Serial Transceiver Module Point to Point Broadcast 250m

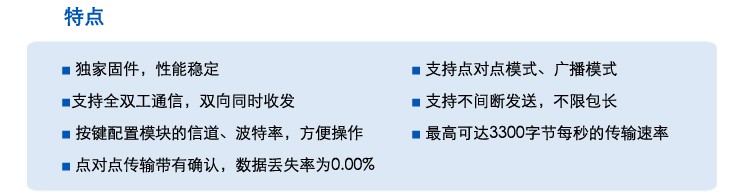

Product Features

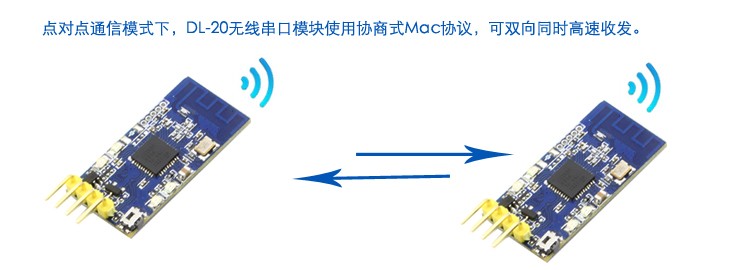

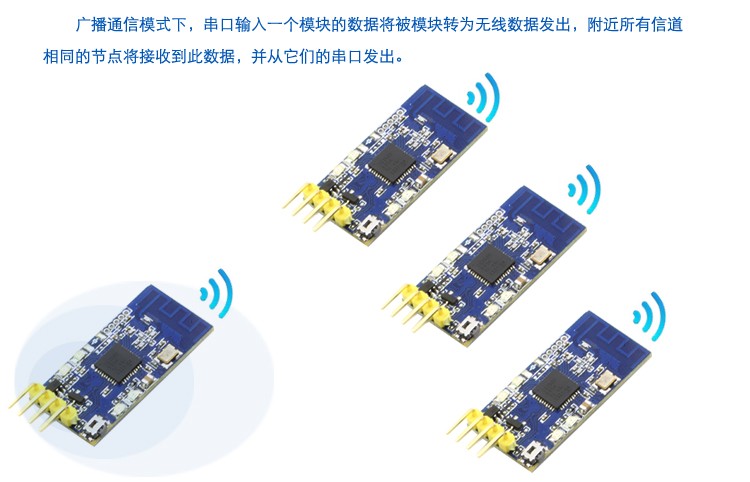

  • CC2530 2.4G serial to wireless transceiver module supporting point to point and boardcast working mode

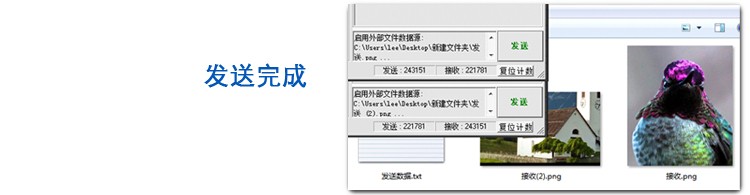

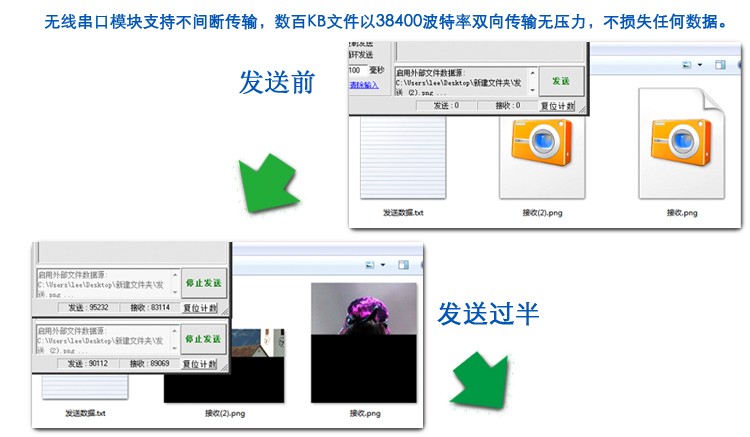

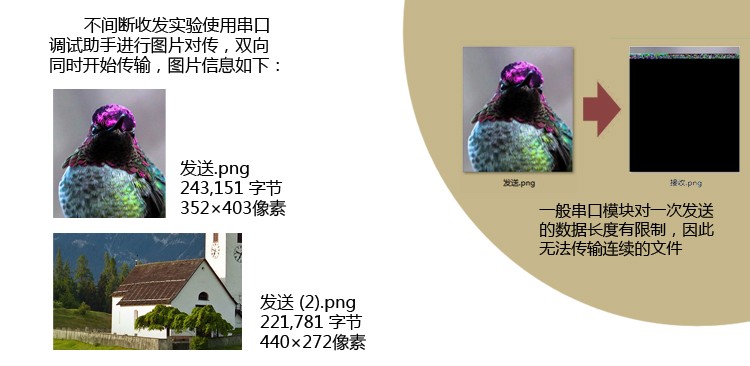

  • Support full-duplex serial continuously transmitting and bi-direction transceiving,no packet length limitation

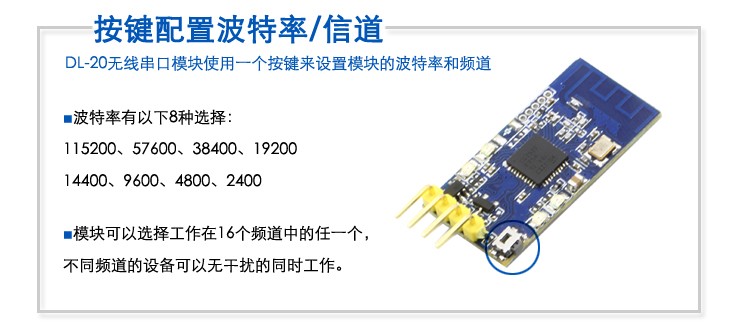

  • On-board control button support working mode,baud rate and communication channel setting ,easy to operation
  • Support 8 type baud rate and 16 communication channel with maximum 250m transmission distance ideal for short distance wireless communication

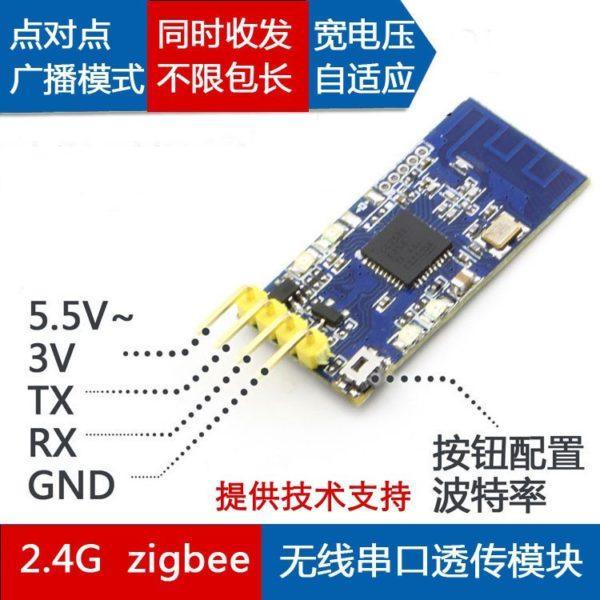

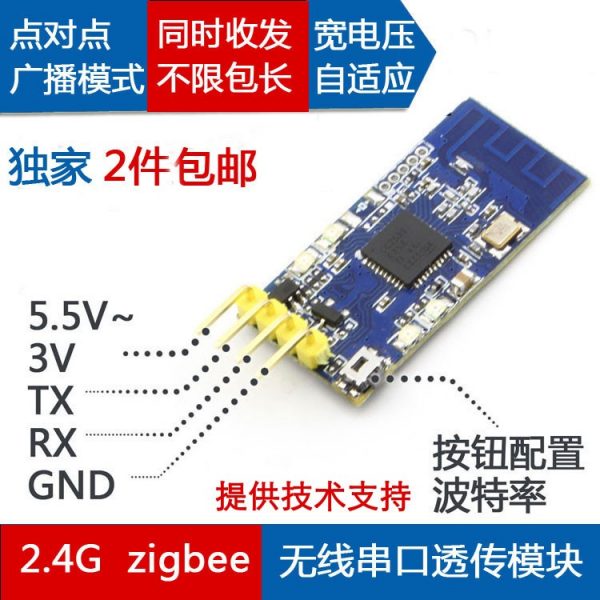

  • Working Voltage:3-5.5V, Module Size:16X32mm/0.63X1.26inch

Product Description

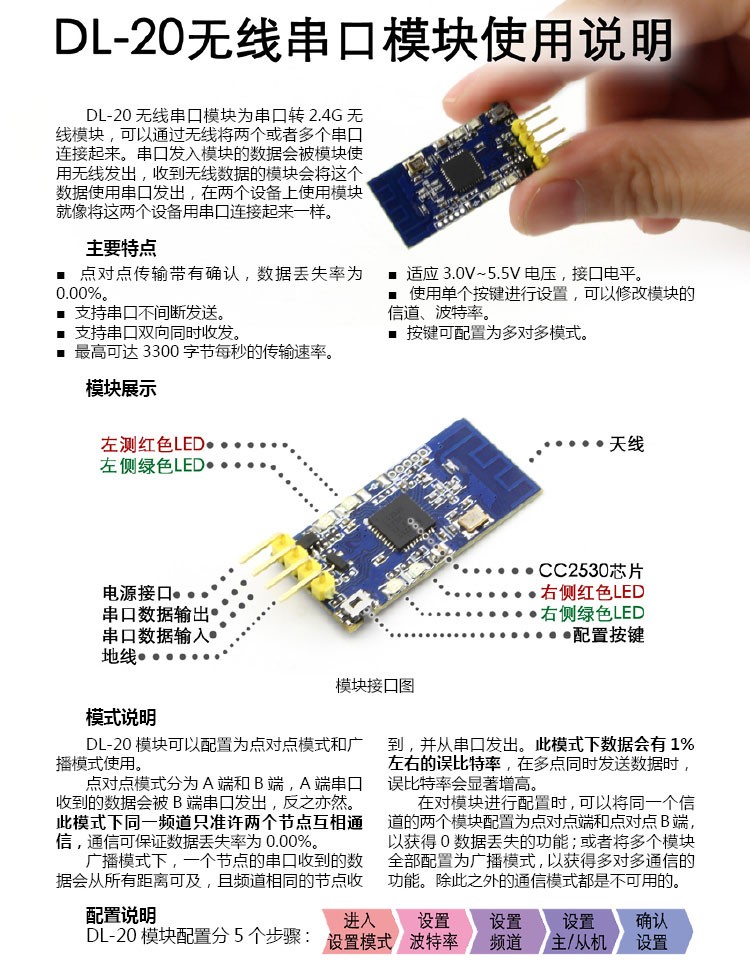

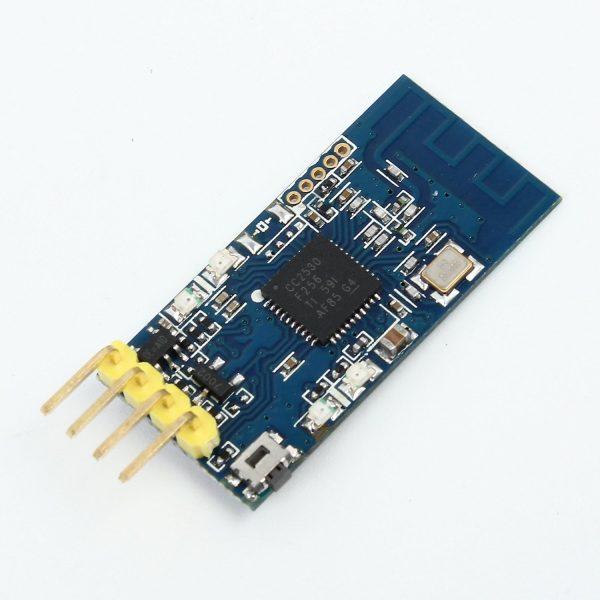

This is a serial to 2.4G wireless transceiver module which can connect two or multi-serial module together to achieve the wireless data communication mutually. On-board antenna and setting button can set baud rate,communication channel and working mode supporting point to point and broadcast communication mode, transceiving at the same time and full-duplex transmitting continuously with maximum 250m transmission distance ideal for short distance wireless communication.

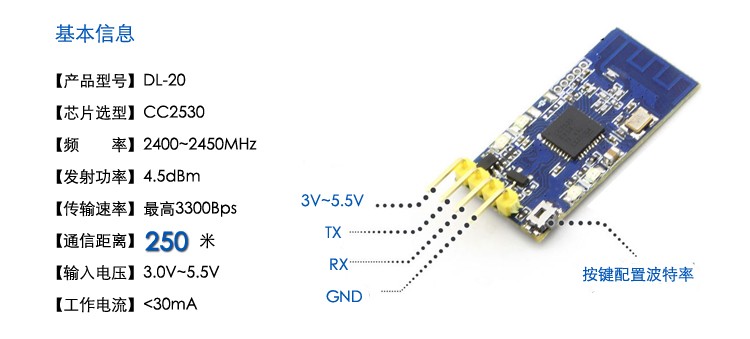

Specifications:

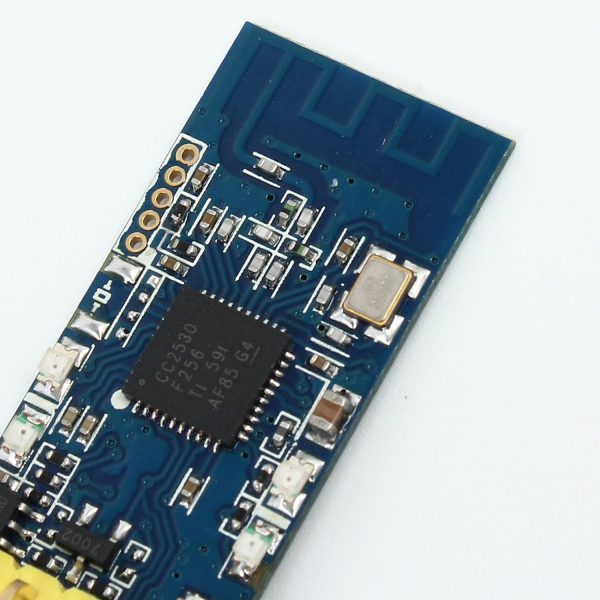

Chip:CC2530
Working Voltage:3-5.5V
Working Current:<30mA
Transmission Speed(Point to Point): 3300bps(maximum)
transmission Distance:250m(maximum)
Working Frequency:2.4GHz
Transmitting Power:4.5dBm
Receiving Sensitivity: -97dBm
BER(bit error ratio):0.00%(point to point),0.5%(boardcast)
Buad Rate:2400/4800/9600/14400/19200/38400/57600/115200
Communication Channel:16
Module Size:16X32mm/0.63X1.26inch
