XBee Sensor Shield 感測器擴展板 帶 XBee/ RS485 接口

商品說明

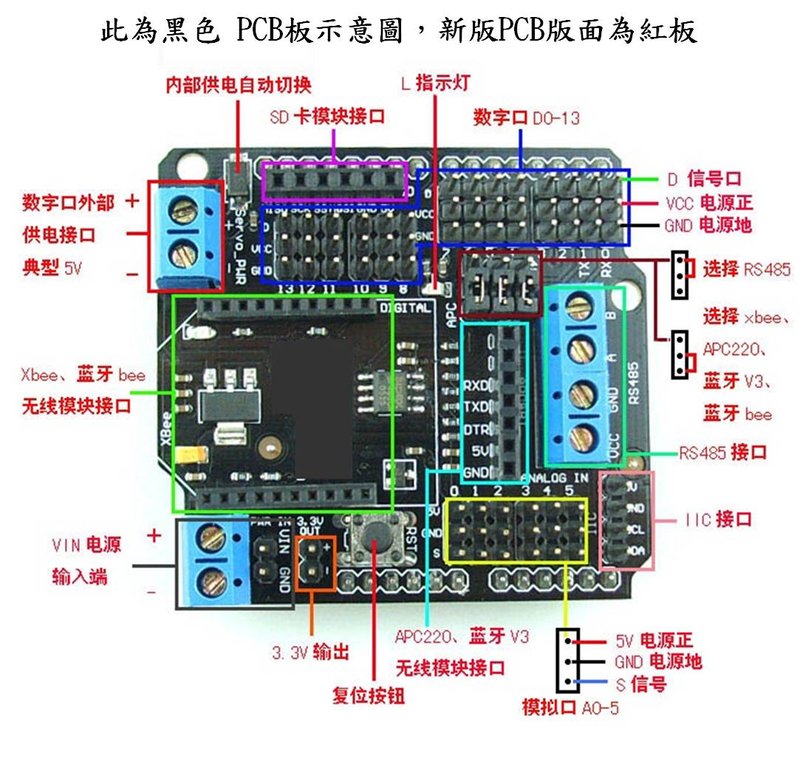

Arduino XBee Sensor Shield 感測器擴展板 帶 XBee/ RS485 接口

1. 擴展 14 個數字 IO 口（ 12 個舵機接口）及電源
2. 6 個模擬 IO 口及電源
3. 1 個數字端口外接電源接線柱；
4. 數字端口外部供電和板載電源自動切換；
5. 1 個外接電源輸入接線柱和 1 個輸入插針；
6. RS485 接口；
7. 復位按鈕；
8. xbee/Bluetooh Bee 藍牙無線數傳接口 ;
9. APC220/Bluetooh V3 藍牙無線數傳接口 ;
10. IIC/I2C/TWI 接口 ;
11. 3.3V 輸出端口 ;
12. SD 卡模塊接口 ;

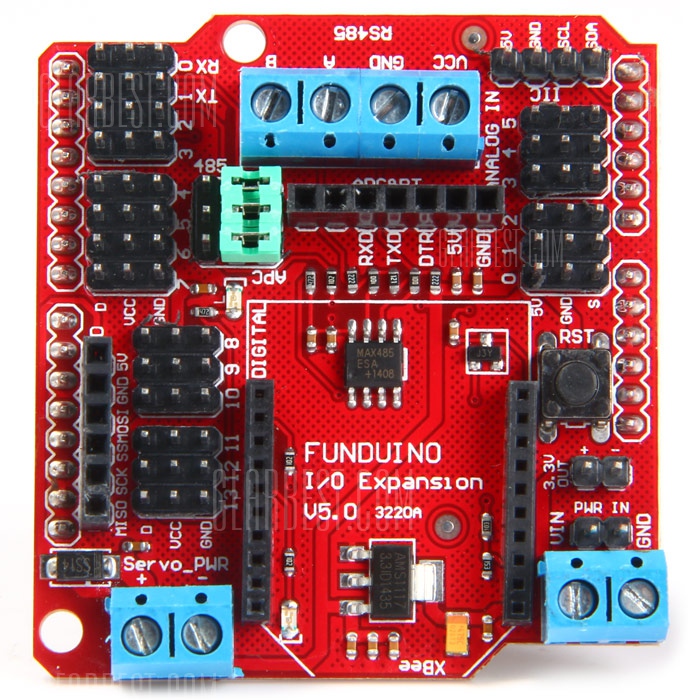

XBee Sensor Shield V5 Expansion Board

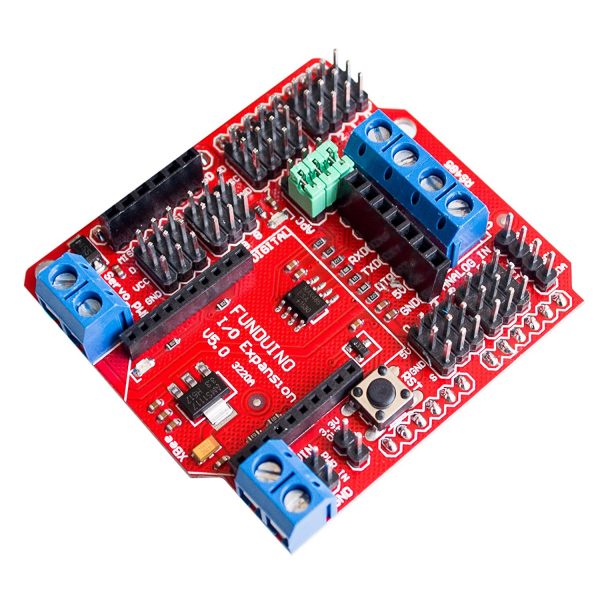

XBee Sensor Shield I/O Expansion Board V5 Bluetooth Bee RS485 Interface For Arduino

The XBee Sensor Expansion Board is designed for easy connecting of Arduino, sensor module, Bluetooth module. Reducing the trouble of connecting with Arduino.

Feature:

Digital I/O pins: 14 (of which 12 for servo)
Analog I/O pins: 6
Digital power pins: 1
Power input pins
3.3V output interface
Auto-switching between digital external power and on-board power
RS485 interface
Reset button
IIC / I2C / TWI interface
SD card interface
APC220 / Bluetooth V3 interface
XBee / Bluetooth Bee interface
