XBee Explorer USB Xbee USB 連結板 XBee FT231X 適配器 SparkFun原廠

商品說明

XBee Explorer USB  Xbee連結板  FT231X 適配器 SparkFun原廠

XBee Explorer USB 是一個簡單易用的，用於Digi XBee線路的USB到串行基本單元。該單元適用於所有XBee模塊，包括Series 1和Series 2.5，Standard和Pro版本。將本機插入XBee Explorer中，連接上mini-usb傳輸線，您將可以直接訪問XBee設備上的串行和編程引腳。該板的亮點是FT231X USB到串行轉換器。這就是您的計算機和XBee之間的數據轉換。還有一個複位按鈕和一個穩壓器來為XBee提供充足的電力。此外，如果您需要調試XBee：RX，TX，RSSI（信號強度指示器）和電源指示燈，則有四個LED可以幫助您。

XBee Explorer USB 還將每個XBee的I / O引腳分解成一對麵包板兼容的接頭。所以如果你想使用XBee的擴展功能，你可以將一些插頭引腳焊接到這些插頭，甚至焊接一些電線。



Documents

• 概要
• 鷹檔案
• X-CTU軟件
• XBee簡介和購買指南
• XBee和X-CTU連接指南
• XBee WiFi連接指南
• GitHub（設計文件）



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



SparkFun XBee Explorer USB

XBee Explorer USB This is a simple to use, USB to serial base unit for the Digi XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

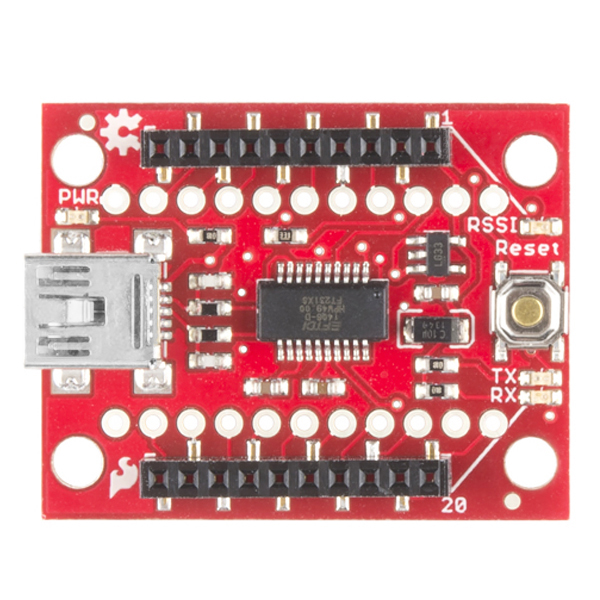

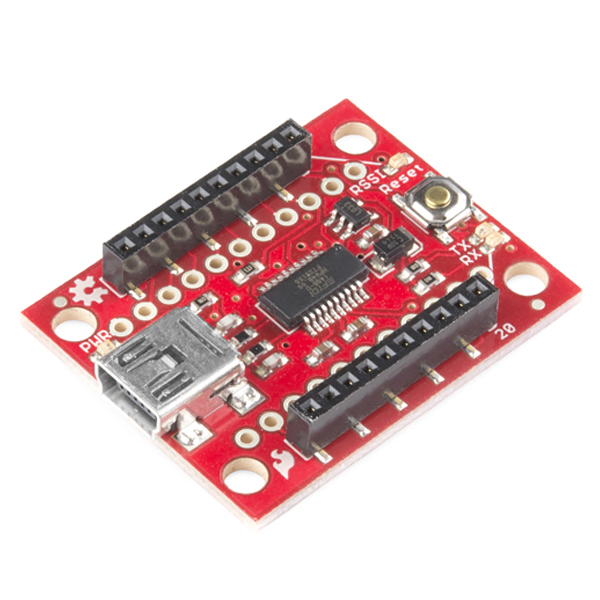

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

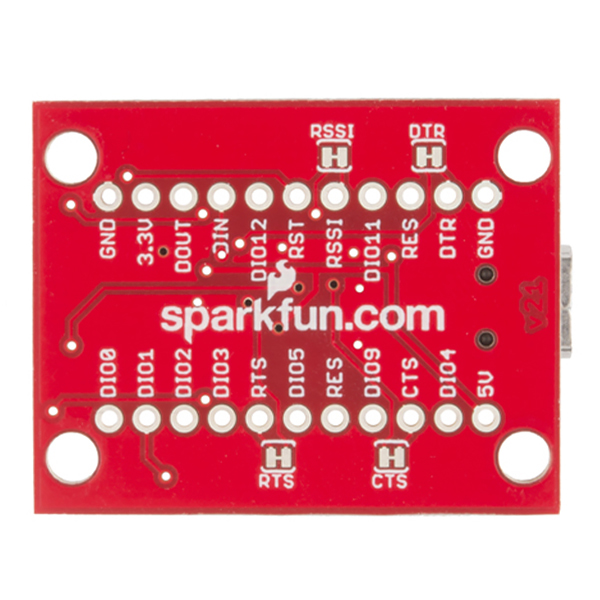

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: There is no XBee included with this Explorer USB. Check the Recommended Products section below for different options.

Documents

• XBee Explorer USB Schematic
• Eagle Files
• X-CTU Software
• XBee Introduction and Buying Guide
• XBee and X-CTU Hookup Guide
• XBee WiFi Hookup Guide
• GitHub (Design Files)
