XBee Explorer Dongle sparkfun 原廠代理進口

商品說明

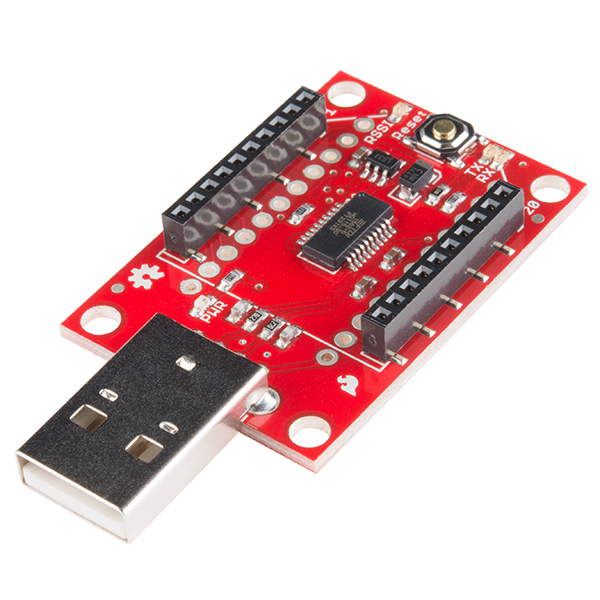

這是Digi XBee模塊系列的SparkFun XBee Explorer Dongle單元。使用XBee Explorer Dongle，您可以將設備直接插入USB端口，並將其作為計算機和XBee之間的網關。不需要電纜！本機適用於所有XBee模塊，包括1系列和2.5系列，標準版和專業版。板載穩壓器最高可達500mA。

該主板的亮點是FT231X USB轉串口轉換器。這就是在您的計算機和XBee之間轉換數據的原因。還有一個複位按鈕和一個電壓調節器，為XBee提供充足的電力。此外，如果您需要調試XBee，有四個LED可以提供幫助：RX，TX，RSSI（信號強度指示器）和電源指示燈。

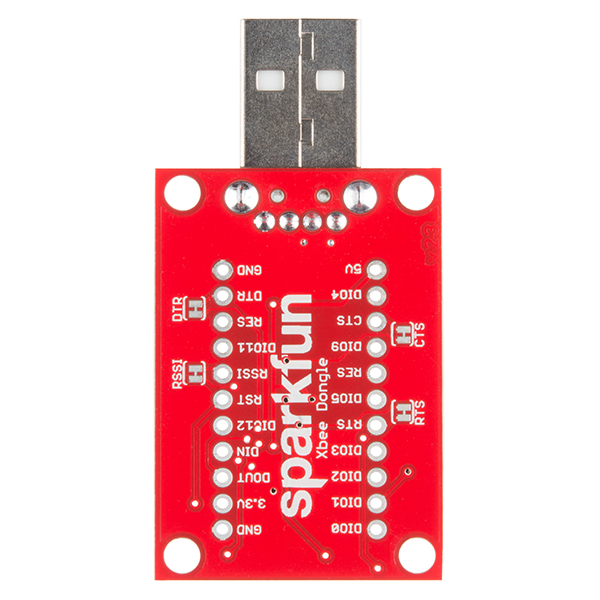

該板還將每個XBee的I / O引腳分成一對麵包板兼容的接頭。因此，如果您想要使用XBee的擴展功能，您可以將一些插頭引腳焊接到那些，甚至只需焊接一些電線。

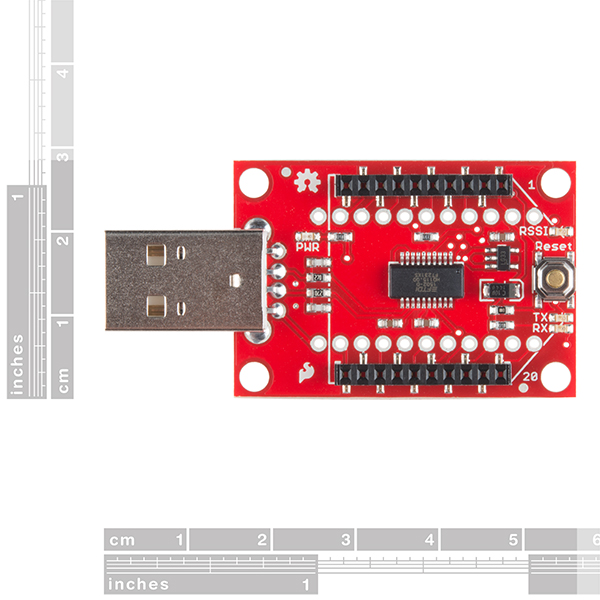

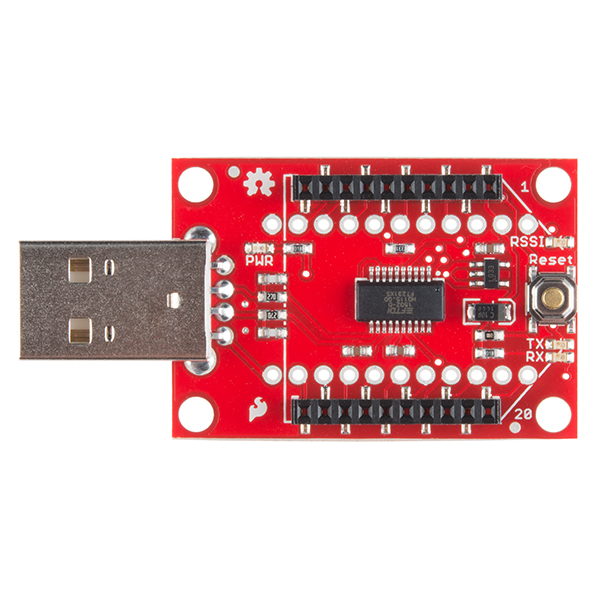

This is the SparkFun XBee Explorer Dongle unit for the Digi XBee module line. With the XBee Explorer Dongle you can plug the unit directly into your USB port and have it act as a gateway between your computer and the XBee. No cables needed! This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. The on-board voltage regulator is good up to 500mA.

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Documents:

• Schematic
• Eagle Files
• X-CTU Software
• XBee Introduction and Buying Guide
• XBee and X-CTU Hookup Guide
• XBee WiFi Hookup Guide
• GitHub (Design Files)
