WiPy 2.0 藍芽 / Wi-Fi 開發板 Pycom seeed原裝進口

商品說明

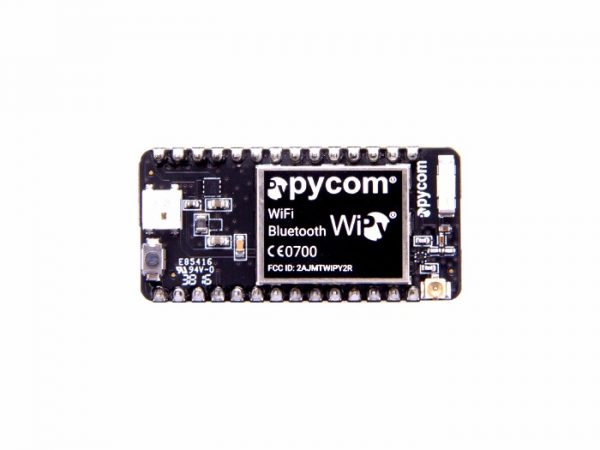

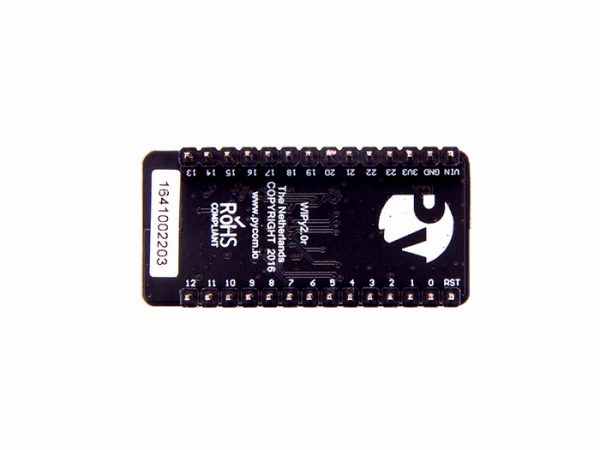

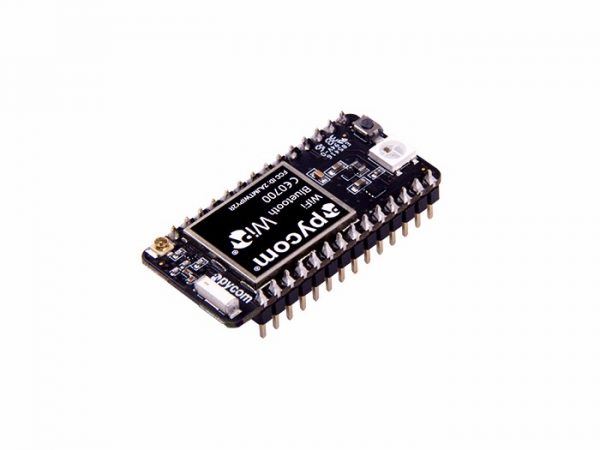

WiPy 2.0 藍芽 / Wi-Fi 開發板 Pycom 原裝進口 Pycom WiPy MicroPython WiFi/藍牙開發板

WiPy 2.0是MicroPython啟用WiFi和藍牙開發板，專門設計用於物聯網應用。其核心在於Espressif ESP32片上系統(SoC)，具有雙核微控制器、WiFi、藍牙和512 KB RAM。所有這些集成在一個板中，測量尺寸僅為42 x 20 x 3.5 mm！

易於使WiPy脫穎而出。您在PC或Mac上使用Python的知識將直接傳輸用於使用MicroPython和WiPy，因此，學習曲線最小。Pycom開發了直觀的API，有助於充分利用板。

• 集成式SoC，帶強大的CPU，藍牙（經典和BLE）和WiFi
• 遠達1 km WiFi範圍
• 與使用管座的標準試驗電路板兼容(RS 102-9147 )。Pycom提供具有微型USB連接器、按鈕、LED和電池連接器的擴展板(RS 125-9534 )。
• 超低電源使用量
• 網絡處理器可處理WiFi連接性和IPv6堆棧，從而可使主處理器自由運行用戶應用程序。
• ULP協處理器監控GPIO、ADC通道並控制大多數內部外圍設備（在深度睡眠模式下），且僅消耗25 uA

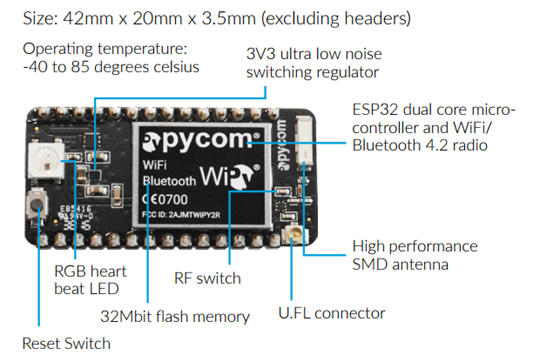

特點

• 尺寸：42 x 20 x 3.5 mm（不包括管座）
• 工作溫度： -40°C至85°C
•  3V3超低噪聲開關調節器
• 電源– 3.3 V至5.5 V
•  ESP32雙核微控制器和WiFi/藍牙4.2無線電
• 重置開關
•  RGB心跳LED
• 32 Mbit閃存存儲器
• 射頻開關
• SMD天線和U.FL連接器

接口

• -2個UART、2個SPI、I2C、I2S、微型SD卡
• 模擬通道：8個12位ADC
• 計時器：4個16位，帶PWM和輸入捕獲
• 所有外圍設備上帶DMA
• GPIO：高達24

原廠技術文件 DataSheet https://www.amazon.com/clouddrive/share/kci3wASmh2R0RmBRSnG8oIeZ1VEh1IZ7MQ9GUcUocBS?ref_=cd_ph_share_link_copy



WiPy 2.0, The tiny Micro Python enabled WiFi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy is all about taking the Internet of Things to the next level.

• Powerful CPU, BLE and state of the art WiFi radio
• 1KM Wi Range
• MicroPython enabled, the Linux of IoT for fast deployment
• Fits in a standard breadboard (with headers)
• Ultra-low power usage: a fraction compared to other connected micro controllers
• Hardware floating point acceleration
• Python multi-threading

Processing

• Espressif ESP32 chipset
• Dual processor + WiFi radio System on Chip.
• Network processor handles the WiFi connectivity and the IPv6 stack.
• Main processor is entirely free to run the user application.
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.

Interfaces

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8×12 bit ADCs
• Timers: 4×16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

Security and Certifications

• SSL/TLS support
• WPA Enterprise security
• FCC – 2AJMTWIPY2R
• CE 0700

Memory

• RAM: 512KB
• External flash 4MB
• Hardware floating point acceleration
• Python multi-threading

Hash / encryption

• SHA, MD5, DES, AES

Wifi

• 802.11b/g/n 16 mbps

Bluetooth

• Low energy and classic

RTC

• Running at 32KHz

Power

• Input: 3.3V – 5.5V

Mechanical

Part List

1 x WiPy 2.0

Documents

Pycom  Github

Documents  download
