WCS1800 霍爾電流感測器 35A 短路/過流保護模組

商品說明

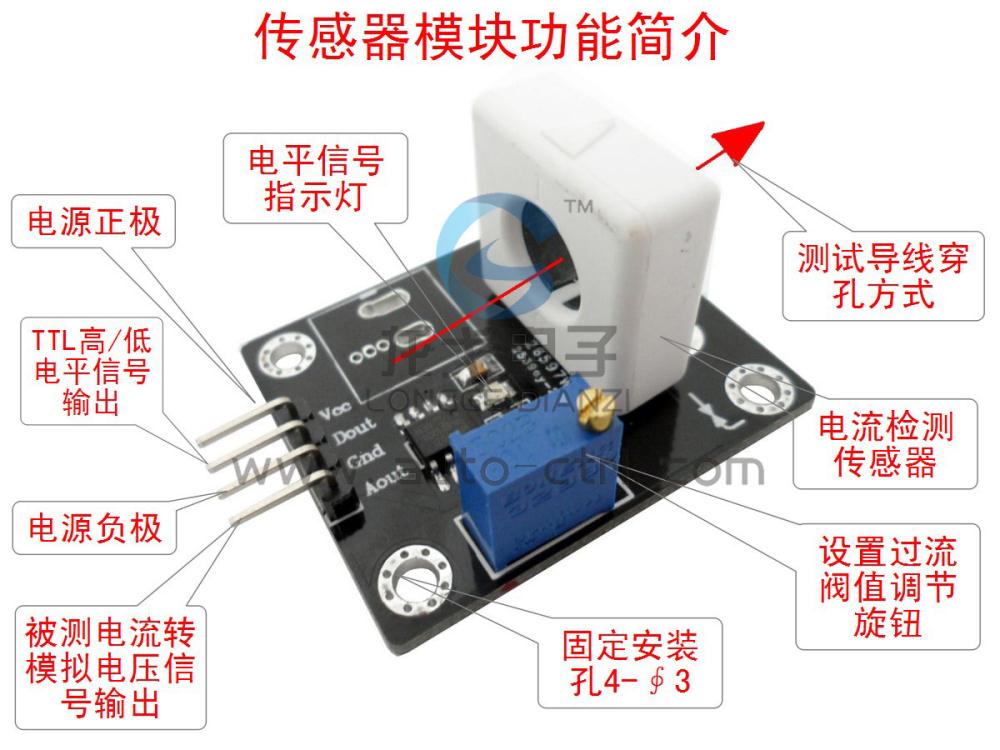

WCS1800 霍爾電流感測器 產品介紹

產品規格

尺寸：長37mmX寬31mmX高16.5mm
主要晶片：LM393運放，WCS1800
工作電壓：直流 DC5V

產品特點

1. 具有信號輸出指示燈
2. 電流檢測範圍寬DC± 0-35A  /  AC：25A
3. 電流檢測解析度60mV/A
4. 輸出過流信號指示
5. 過流信號設置臨界點可調，設置解析度1.5A
6. 帶安裝孔，方便固件安裝
7. 採樣電流轉換類比信號輸出，可接ADC，TTL電平信號輸出，可接單片機IO口控制。
8. 輸出信號為：類比信號和電平信號。



產品應用

智慧小車電機過流檢測、堵轉保護電流檢測、短路保護檢測、演示教學實驗等場合，方便二次開發。

技術教學

原廠技術文件下載

WCS1800 Holzer current sensor detects 35A short circuit / over current protection module sensor

Product Name: WCS1800 over current detection sensor over current / short circuit protection detection moduleFirst, size: long 37mmX wide 31mmX high 16.5mmTwo, working voltage: DC DC5VThree, characteristics:1, with signal output indicator;2, the current detection range of DC + 35A;3, the current detection resolution 60mV/A;4, the output of the flow signal;5, the flow signal is set to adjust the critical point, set the resolution of 1.5A;6, with the installation hole, to facilitate the installation of the firmware;7, sampling current conversion analog signal output, can be connected to the ADC, TTL level signal output, can be connected to the microcontroller IO port control.
8, the output signal is: analog signal and level signal. Application: intelligent car motor over current detection, blocking to protect current detection, short circuit protection detection, demonstration teaching experiments and other occasions, to facilitate the development of two times;
