VGA666 DPI dtoverlays Module 樹莓派 VGA 端子模組

商品說明

VGA666 DPI dtoverlays Module 樹莓派 VGA 端子模組

樹莓派只有一個HDMI端口連接顯示器，如果您的只有VGA螢幕，您可以使用 VGA666 DPI dtoverlays Module 讓您的樹莓派使用這些 VGA 類型的顯示器。

• 支持Raspberry Pi A +，Raspberry Pi B +，Raspberry Pi Zero，Raspberry Pi 2，B型，Raspberry Pi 3 B型
• VGA輸出支持分辨率：從800×600到30fps。
• 每通道6位，最多可以有262144種顏色。
• 易於設置。
• 易於配置。
• 尺寸：64.00mm x 32.24mm
• 重量：16.48克

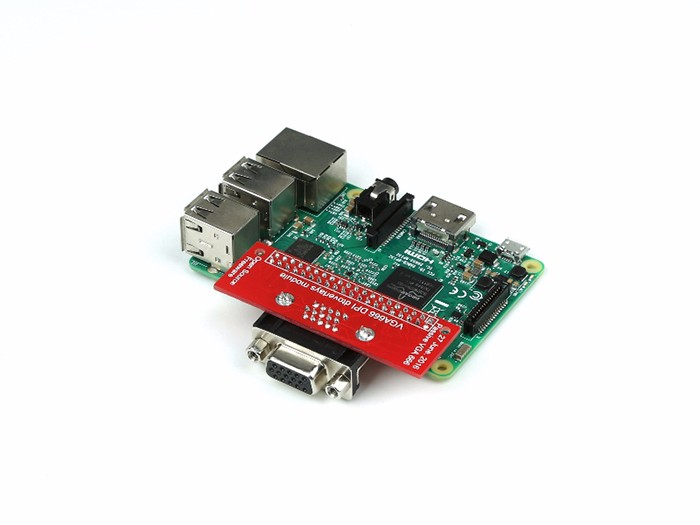

注意本商品不包含樹莓派主板，使用本模組與樹莓派銜接的示意圖

Raspberry PI VGA666 DPI dtoverlays Module

• This Module has another name: Gert-VGA-adapter, or Passive VGA adapter 666 for Raspberry Pi A+/B+/2B/3B/Zero
• The Raspberry Pi has an HDMI port to connect a display.
• If your monitor only has VGA, you have to use an adapter.

This Module has another name: Gert-VGA-adapter, or Passive VGA adapter 666 for Raspberry Pi A+/B+/2B/3B/Zero
The Raspberry Pi has an HDMI port to connect a display.
If your monitor only has VGA, you have to use an adapter.
Because this requires a digital-to-analogue conversion, those adapters can be quite pricey, and they can draw lots of power.
As well as just allowing you to connect a VGA monitor natively.
And unlike composite video, the DPI interface can be run independent of the HDMI.
The software for dual screens is still under development.
Running two screens at maximum resolution will depend on the speed of GPIO.
This wasn’t possible on the Model A or B.
And there’s a catch: as the board uses most of your GPIO pins, you lose access to them.

All above are from raspberry pi official website.
