UHF RFID Antenna (TNC)天線 30cm SparkFun原廠

UHF RFID Antenna ( TNC ) 天線 30cm

當您需要充分利用天線進行RFID項目時，這是您的解決方案。 這款超高頻UHF RFID天線的頻率範圍為860-960 MHz，增益為6dBi。 這是我們用於RFID閱讀器的相同外置天線，因為它具有高品質的功能。

該UHF RFID天線使用30cm長的TNC Female RP電纜進行端接。 如果您需要延長連接到天線的電纜，您需要購買額外的UHF RFID 電纜線來連接延長！

特徵

• 頻率範圍：860-960 MHz
• 增益：6 dBi
• VSWR：<1.6：1
• 阻抗：50Ω
• 極化：線性垂直
• 天線連接器：TNC Female RP
• 最大功率：100W
• 223毫米x 200毫米x 60毫米

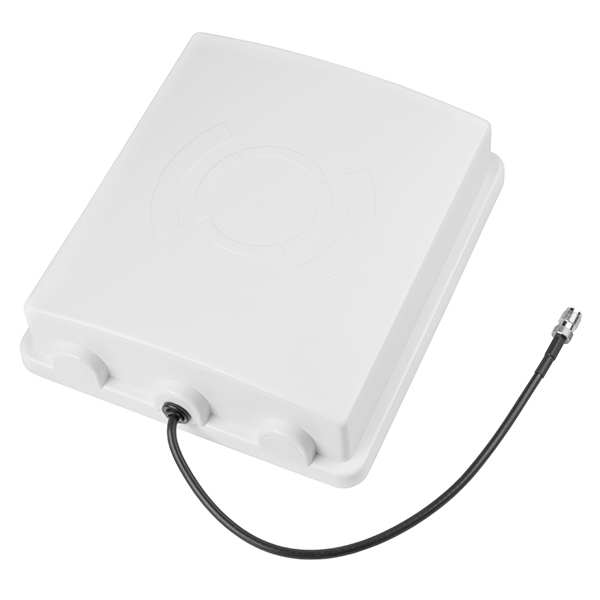

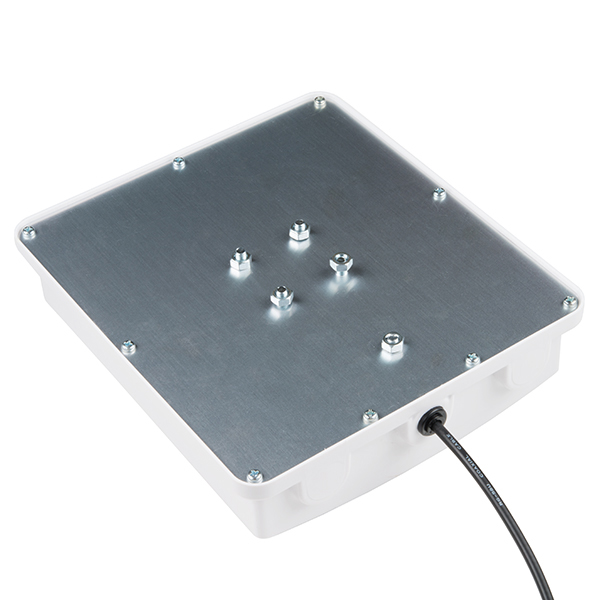

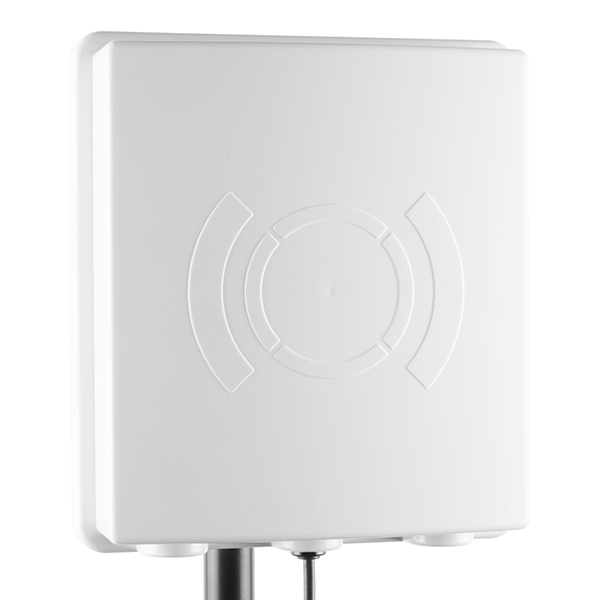

This is your solution when you absolutely, positively need to get the most out of an antenna for your next RFID project. This ultra high-frequency (UHF) RFID Antenna boasts a frequency range of 860-960 MHz with a gain of 6dBi. This is the same external antenna we use for our Simultaneous RFID Reader due to its high-quality features.

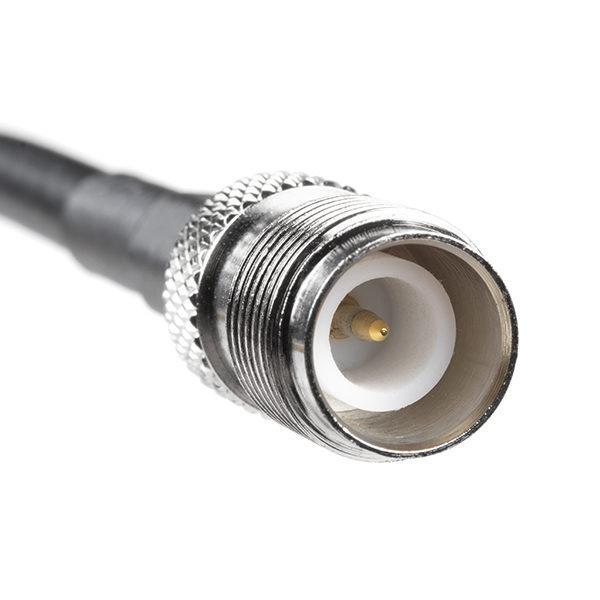

Each UHF RFID Antenna is terminated with a 30cm long TNC Female RP cable. If you need to extend the cable attached to the antenna, we offer additional cords to help you out!

Features

• Frequency Range: 860-960 MHz
• Gain: 6 dBi
• VSWR: < 1.6 : 1
• Impedance: 50Ω
• Polarization: Linear Vertical
• Antenna Connector: TNC Female RP
• Max Power: 100W
• 223mm x 200mm x 60mm
