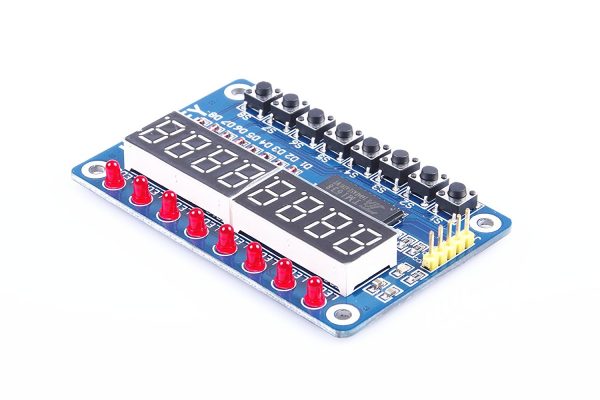

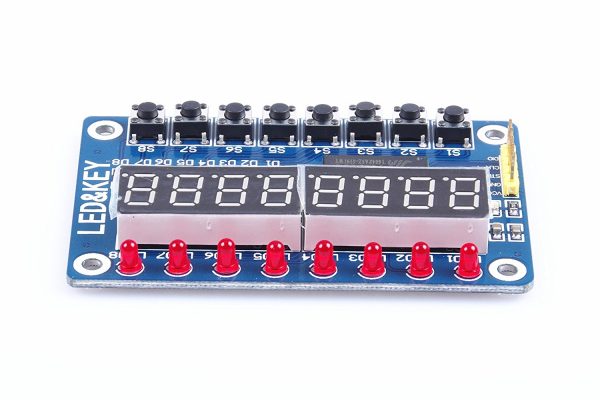

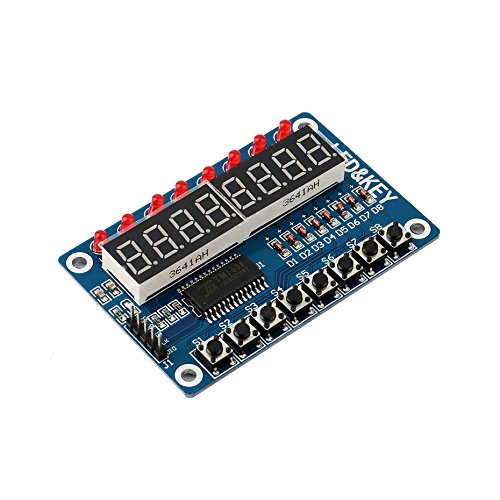

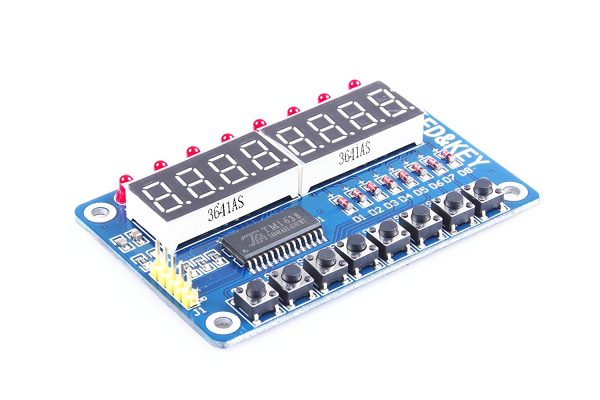

TM1638 按鍵數碼管LED顯示模組 8位元七段顯示器 LED 按鍵

商品說明

• 8個按鍵
• 8個LED
• 8位元數碼管，共陰極LED數碼管
• 可以和STC等單片機直接連接
• 提供ardiuno驅動程式

TM1638 模組所用晶片為TM1638，集合了以上三種單片機常見週邊電路，最大特點是只需佔用單片機三個IO口即可驅動，掃描顯示和按鍵掃描不需要單片機干預，只需要讀寫相關寄存器送顯示資料或檢測按鍵，節省MCU資源。購買該模組提供實例程式。

接線方法：

VCC GND接5V電源， STB CLK DIO接單片機IO口。

Arduino 範例與函數庫

https://github.com/rjbatista/tm1638-library/

技術補充（英文）

以下為原廠英文技術說明，提供使用者參考。
