Teensy 排針套件 Teensy Header Kit SparkFun原廠

商品說明

Teensy 排針套件 Teensy Header Kit

適用於Teensy 4.0，Teensy 3.2和Teensy LC開發板。每個接頭連接器套件都可使您的Teensy麵包板兼容，並允許堆疊Teensy和Teensy兼容的屏蔽板。該套件包括五個接頭連接器（兩個13針，一個7針，一個3針和一個2×7直角SMT），足以以所需的任何配置連接所選的Teensy！

注意：此接頭連接器套件還可以用於Teensy 3.0和3.1，因為這三個版本之間的引腳佈局沒有改變。



規格

• 2個13針可堆疊接頭
• 1個7針母接頭（用於端頭）
• 1個3-pin針座（用於3-off網格孔）
• 1個2×7直角SMT接頭連接器，用於Teensy 3.2背面的表面安裝墊



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Teensy Header Kit

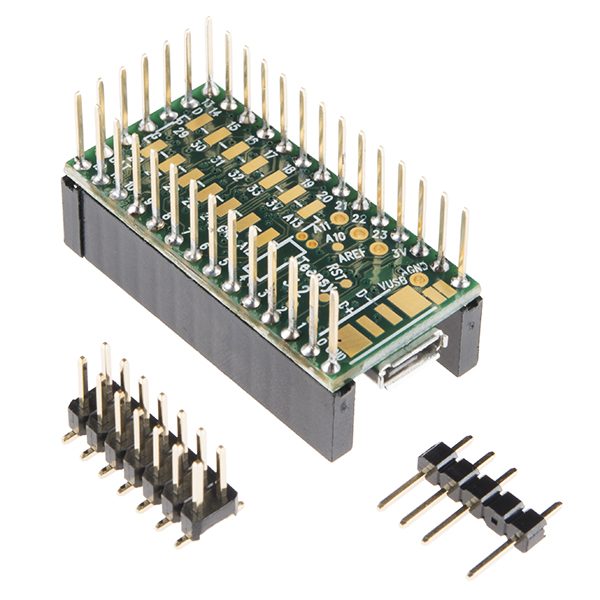

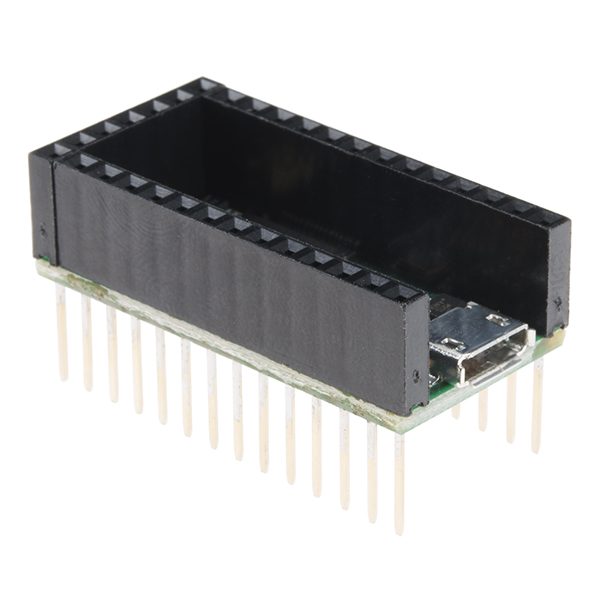

These headers are made to work with the Teensy 4.0, Teensy 3.2, and Teensy LC development boards. Each kit of headers makes your Teensy breadboard compatible and will allow for stacking a Teensy and Teensy-compatible shield board. This kit includes five headers (two 13-pin, one 7-pin, one 3-pin, and one 2×7 right-angle SMT), enough to connect your chosen Teensy in any configuration you need!

Note: This Header Kit can also be used for the Teensy 3.0 and 3.1, as the pin layout has not changed between the three versions.

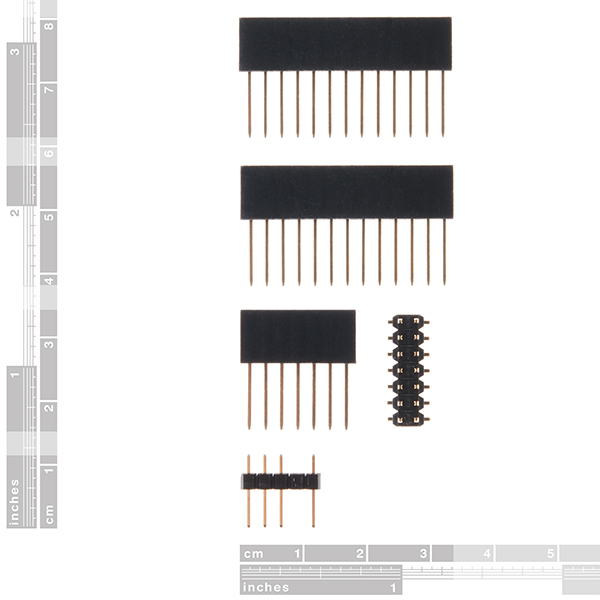

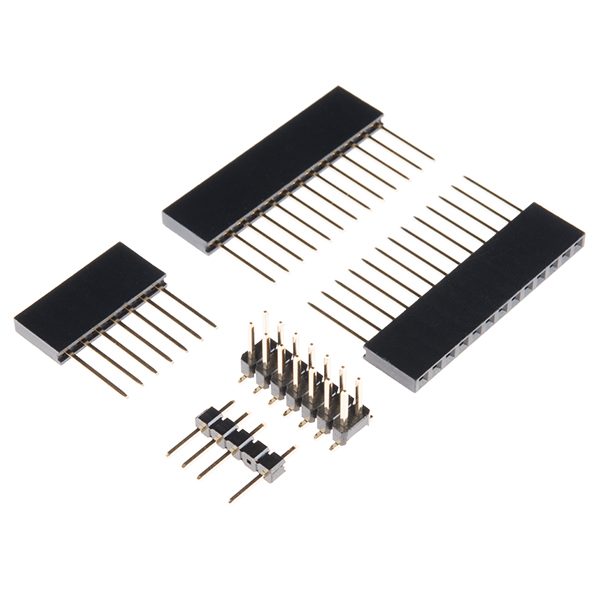

Includes

• 2x 13-pin stackable header
• 1x 7-pin female header (for pins on end)
• 1x 3-pin header (for 3-off grid holes)
• 1x 2×7 right-angle SMT header, for the surface mount pads on the back of the Teensy 3.2
