SparkFun moto:bit 電機腳位引出擴展板 Micro:bit 專用擴展板

商品說明

SparkFun moto:bit 電機腳位引出擴展板 Micro:bit 專用擴展板板

為您提供功能全面的機器人平台。moto:bit 供了一個簡單的，初學者友好的機器人控制器，能夠操作基本的機器人底盤。 在每個 moto:bit 能夠掛接伺服舵機，傳感器和其他電路的多個I / O引腳。 在開關翻轉時，你可以得到你的 Micro:bit 更方便運用與學習。SparkFun moto:bit 通過板頂部的邊緣連接器連接微處理器：使設置變得簡單。 這樣可以方便地 Micro:bit 用於編程，同時仍然提供與Micro:bit  上所有不同引腳的擴展與銜接。

SparkFun 原廠線上教學

範例文件 https://github.com/sparkfun/Micro_Bit_Moto_Bit

SparkFun moto:bit

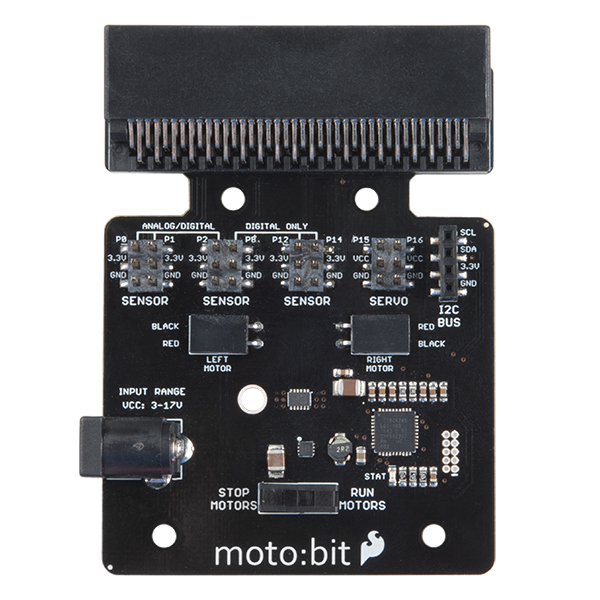

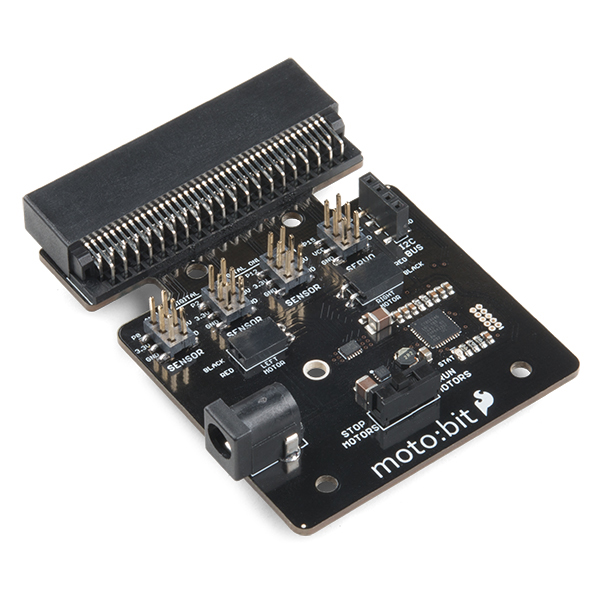

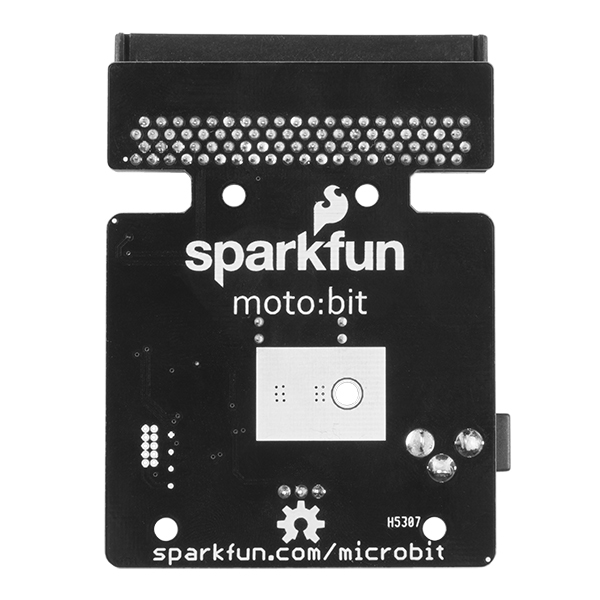

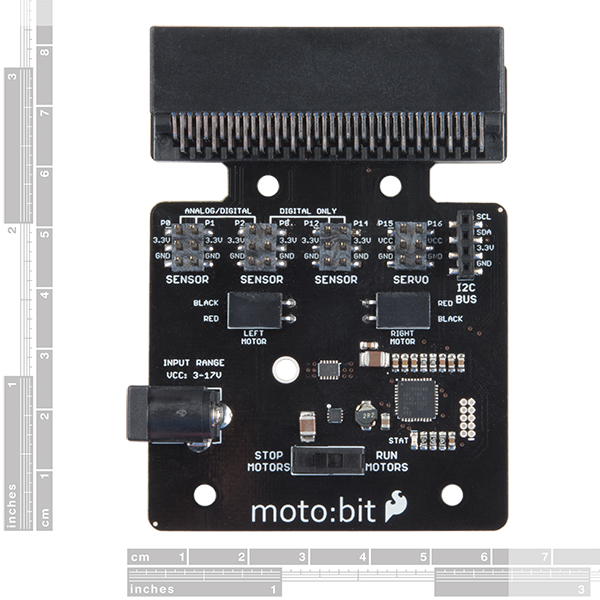

The SparkFun moto:bit is a fully loaded “carrier” board for the micro:bit that, when combined with the micro:bit, provides you with a fully functional robotics platform. The moto:bit offers a simple, beginner-friendly robotics controller capable of operating a basic robotics chassis. Onboard each moto:bit are multiple I/O pins capable of hooking up servos, sensors and other circuits. At the flip of the switch you can get your micro:bit moving!

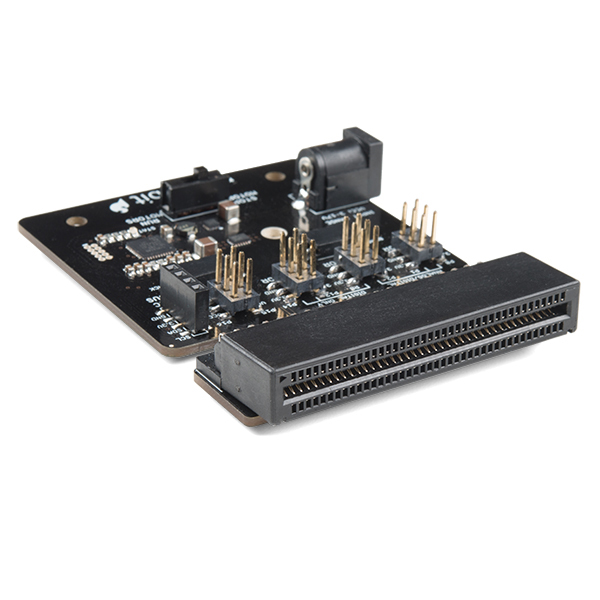

The moto:bit connects to the micro:bit via an edge connector at the top of the board, making setup easy. This creates a handy way to swap out micro:bits for programming, while still providing reliable connections to all of the different pins on the micro:bit. We have also included a basic barrel jack on the moto:bit that is capable of providing power to anything you connect to the carrier board.

The micro:bit is a pocket-sized computer that lets you get creative with digital technology. Between the micro:bit and our shield-like bit boards you can do almost anything while coding, customizing and controlling your micro:bit from almost anywhere! You can use your micro:bit for all sorts of unique creations, from robots to musical instruments and more. At half the size of a credit card, this versatile board has vast potential!

Features:

• Edge connector for easy use with the micro:bit
• Full H-Bridge for control of two motors
• Control servo motors
• I²C port for extending functionality
• Power and battery management onboard for the micro:bit

Documents:

• Schematic
• Eagle Files
• Experiment Guide
• micro:bit Getting Started Guide
• micro:bit Getting Started Videos
• About micro:bit Page
• micro:bit Apps
• GitHub
