RedBear RB Link RedBear DUO 專用 Grove 擴充燒錄底座

商品說明

RedBear RB Link RedBear DUO 專用 Grove 擴充燒錄底座

RBLink是為使用Broadcom WICED SDK的RedBear Duo開發應用而設計的，它支持調試。您可以輕鬆地將Seeed’s Grove系統中的模塊連接到您的項目中。如果您擁有MFi許可證和協處理器（認證芯片），您可以使用RBLink開發MFi項目（例如HomeKit）。

Apple Home Kit支持

規格參數

• 運行ST-LINK / V2
• 適用於物聯網的Broadcom WICED SDK兼容
• Apple MFi身份驗證協處理器支持（需要** MFi許可證）
• USB MSD接口 – 通過拖放bin文件啟用Duo編程
• USB CDC虛擬串口
• STM32 ST-LINK Utility軟件兼容
• 8x Seeed Grove兼容連接器
• 53.5mm x 53.5mm

出貨清單

• RedBear RB Link x1

Documents

• 有關庫和文檔，請訪問GitHub頁面。

該產品由Redbear設計

• 如需技術支持，請訪問https://redbear.cc/contact-us/

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

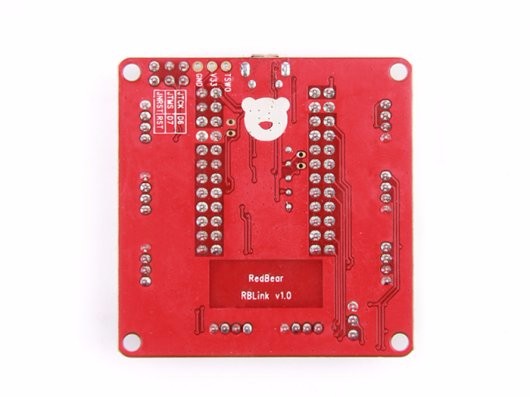

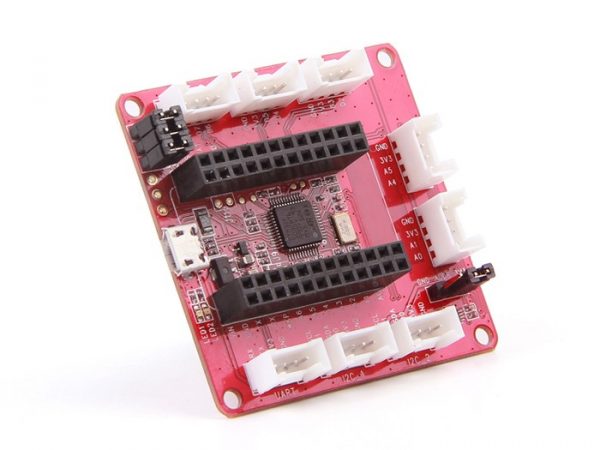

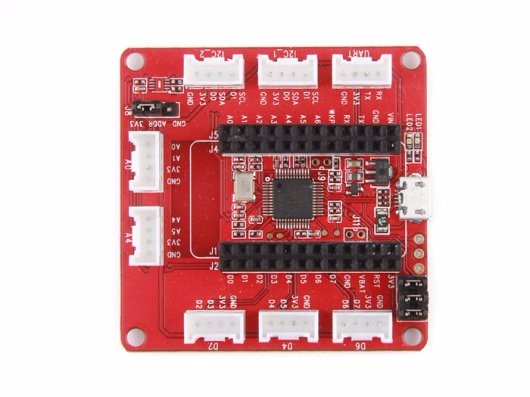

RedBear RB Link

RBLink is designed for development application for RedBear Duo using Broadcom WICED SDK, it supports debugging. You can easily attach modules from the Seeed’s Grove System to your project. If you have MFi license and the co-processor (authentication chip), you can use RBLink to develop MFi projects (e.g. HomeKit).

Apple Home Kit Support

SPECIFICATION

• Running ST-LINK/V2
• Broadcom WICED SDK for Internet of Things compatible
• Apple MFi authentication coprocessor support (**MFi license is required)
• USB MSD interface – enabling programming Duo by drag and drop of bin file
• USB CDC Virtual Serial port
• STM32 ST-LINK Utility software compatible
• 8x Seeed Grove compatible connectors
• 53.5mm x 53.5mm

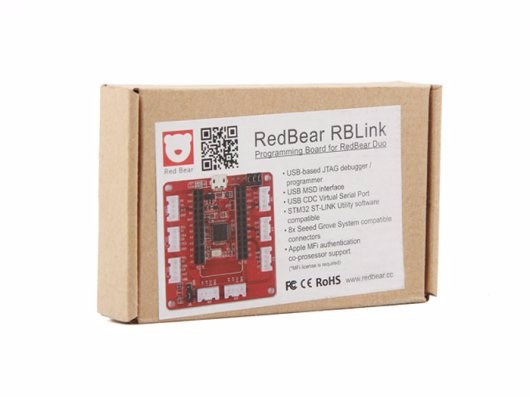

PART LIST

• 1 x RedBear RB Link

DOCUMENTS

• For libraries and documents, please visit GitHub page.

TechSupport

This product is designed by Redbear

• For technical support, please visit https://redbear.cc/contact-us/.
