Raspberry Pi Compute Modules 3+ 8GB eMMC (CM3+) 樹莓派運算模組 英國製

NT$1,448 未稅


  • 商品說明

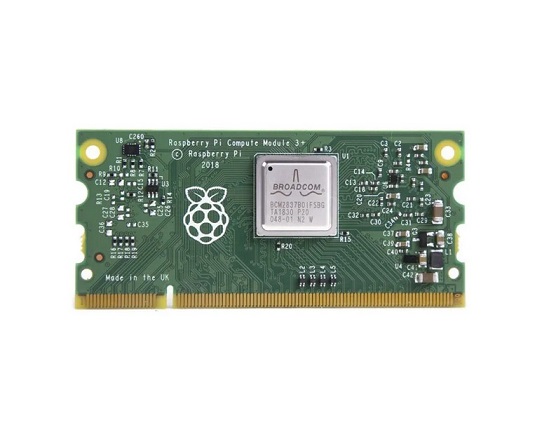

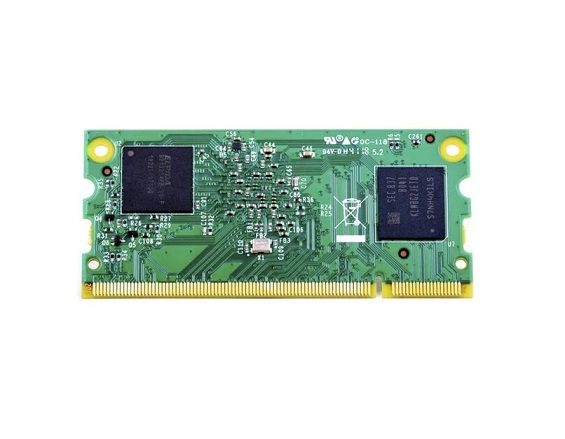

Raspberry Pi Compute Modules 3+ 8GB eMMC (CM3+) 樹莓派運算模組

Raspberry Compute Modules 3+ 適用於對Raspberry Pi3功能感到滿意但需要更小尺寸(67.6 mm x 31 mm)的嵌入式設計的設計人員。

這些模塊是DDR2-SODIMM,機械兼容的模塊化系統(SoM),包含BCM2837處理器片上系統(SoC),帶有1 GB的LPDDR2 RAM和8GB的eMMC閃存。 除Raspberry Pi型號A / B板外,這些模塊還具有額外的輸入/輸出(I / O)接口。

計算模塊3 – 使用eMMC Flash和SD。

The Raspberry Pi Compute Module 3 + (CM3+) are DDR2-SODIMM-mechanically-compatible System on Modules (SoMs) containing a processor, memory, eMMC Flash (except “Lite” version) and supporting power circuitry. These modules allow a designer to leverage the Raspberry Pi hardware and software stack in their own custom systems and form factors. In addition the modules have extra I/O interfaces over and above what is available on the Raspberry Pi model A/B boards, providing more options and fostering rapid development for the designer. The Compute Module 3 + 8GB has a 200 pin SODIMM design and contains 8GB of on-board eMMC flash memory.
  • Broadcom BCM2837B0 Cortex-A53 64-bit 1.2GHz SoC
  • 1GB LPDDR2 SDRAM Memory
  • 8GB eMMC flash memory storage on-board
  • Production life guaranteed until January 2025
  • H.264, MPEG-4 decode (1080p30), H.264 encode (1080p30), OpenGL ES 1.1, 2.0 graphics
  • Compatible with NOOBS_3_0_0


Embedded Design & Development, Electronics Design, Industrial, IIoT (Industrial Internet of Things), IoT (Internet of Things)

技術資料表: CM3+/8GB   Datasheet

Raspberry Pi Version CM3+
Product Name Raspberry Pi Compute Module 3+ 8GB (CM3+)
Processor Part Number BCM2837
RAM Size 1 GB
