Qwiic 專用連接線 – 麵包板跳線 (4針) SparkFun原廠

商品說明

Qwiic 專用連接線 – 麵包板跳線 (4針)

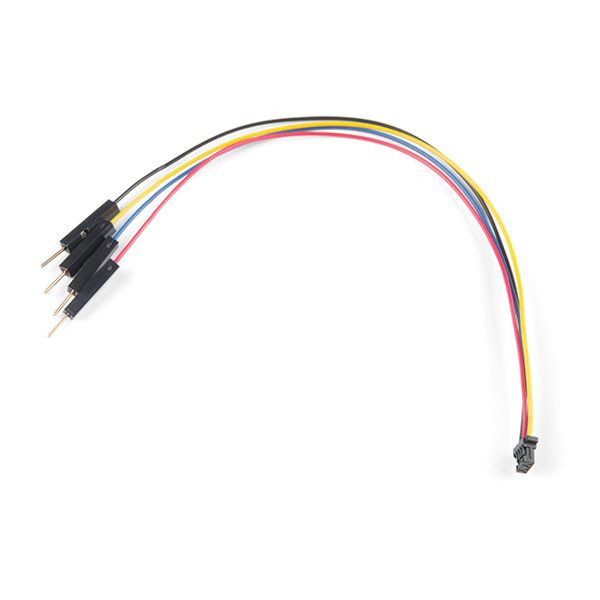

這是一根跳線適配器電線，其一端端接Qwiic JST凹形連接器，另一端端接麵包板連接尾纖。通過該電線，可以輕鬆地將具有Qwiic連接器的組件連接到麵包板或基於Arduino的設備的引腳上。

28AWG電線的長度為150mm（約5.9英寸）。適配器的電線已顏色編碼為紅色，黑色，藍色和黃色。此外，Qwiic母連接器的基本間距為1mm，而公連接銷可以輕鬆插入標準的0.1“連接器中。

所有Qwiic電纜均具有以下配色方案和佈置：

• 黑色= GND
• 紅色= 3.3V
• 藍色= SDA
• 黃色= SCL



特徵

• 尺寸：150毫米（5.9英寸）長



Documents

• 尺寸圖
• Qwiic登陸頁面



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Qwiic Cable – Breadboard Jumper (4-pin)

This is a jumper adapter cable that comes pre-terminated with a female Qwiic JST connector on one end and a breadboard hookup pigtail on the other. This cable makes it easy to connect components with a Qwiic connector to a breadboard or an Arduino-based device’s pins.

The 28AWG wire’s length is 150mm (about 5.9 inches). The adapter’s wires have been color coded to red, black, blue and yellow. Additionally, the female Qwiic connector features a basic 1mm pitch, while the male hookup pins can easily insert into a standard 0.1″ connector.

All Qwiic cables have the following color scheme and arrangement:

• Black = GND
• Red = 3.3V
• Blue = SDA
• Yellow = SCL

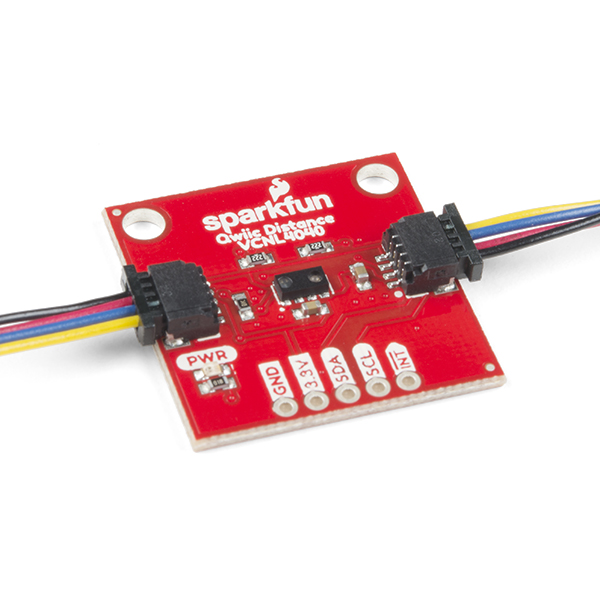

The SparkFun Qwiic connect system is an ecosystem of I²C sensors, actuators, shields and cables that make prototyping faster and less prone to error. All Qwiic-enabled boards use a common 1mm pitch, 4-pin JST connector. This reduces the amount of required PCB space, and polarized connections mean you can’t hook it up wrong.

Features

• Dimensions: 150mm (5.9″) Length

Documents

• Dimensional Drawing
• Qwiic Landing Page
