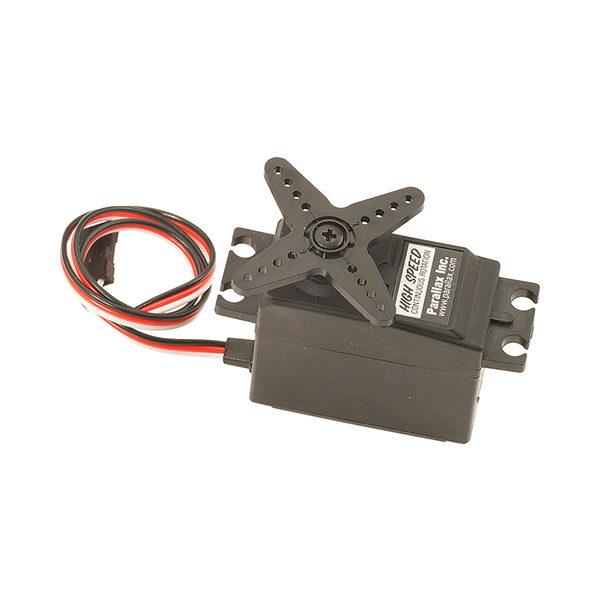

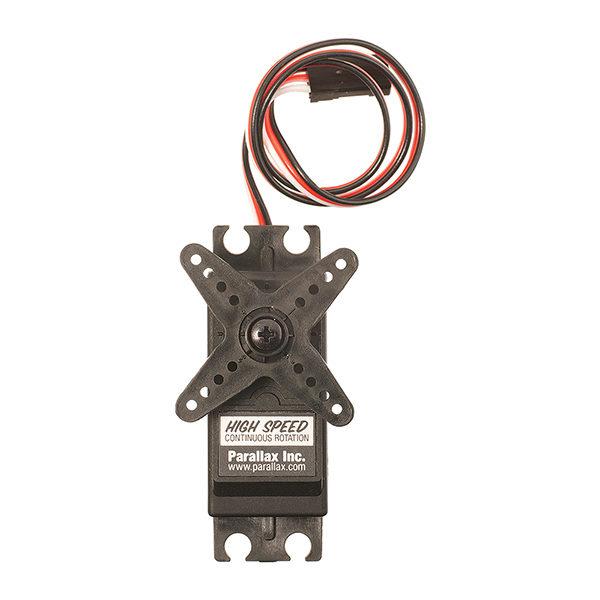

Parallax High Speed Continuous Rotation Servo

商品說明

Parallax High Speed Continuous Rotation Servo 產品介紹

已停產，點擊此處可參考其他同類型產品

Parallax’s High Speed Continuous Rotation Servo offers easily controlled bi-directional rotation via simple pulse-width modulation.

Note: This servo is not compatible with the ActivityBot 360 Robot which uses Feedback 360 High Speed servos featuring internal encoder sensors.



Features

• Bidirectional continuous rotation, from 0 up to 180 RPM
• Linear response to pulse-width modification for easy ramping
• 6 to 8 VDC input range is compatible with 5-cell AA battery packs
• Accepts four mounting screws, and fits easily into our small robot chassis
• Access port for adjusting “idle” pulse width
• Torque: 22 +/-11 oz-in (1.6 +/- 0.8 kg-cm) @ 7.4 V
• Speed: 0.30 +/- 0.06 sec/360°
• Weight: 1.5 oz (42 g)
• Gear material: Acetal copolymer
• Power requirements: 6.0 to 8.0 VDC; 15 mA idle, 130 +/- 50 mA full speed no load @ 7.4 V
• Communication: pulse-width modulation, 1.3 to 1.7 ms high pulse, 20 ms intervals
• Dimensions: 2.2 x 0.8 x 1.6 in (56 x 19 x 41 mm) excluding servo horn
• Operating temperature: 14 to 113 °F (-10 to +45 °C)



Documents

• Datasheet
