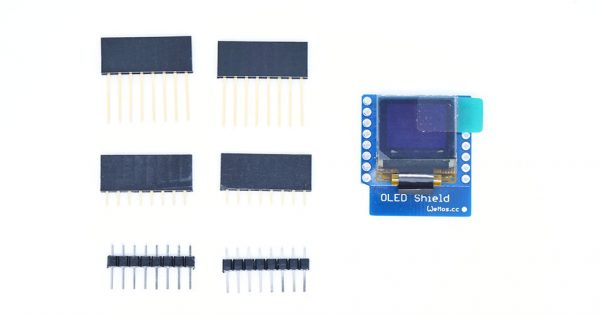

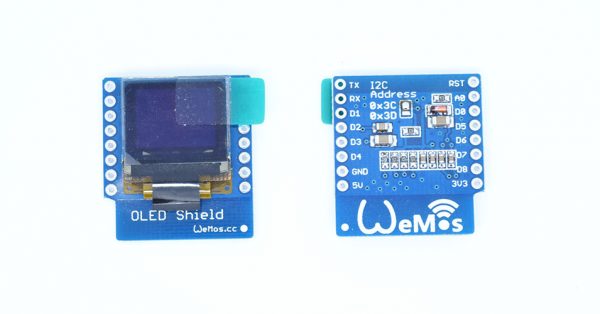

OLED Shield for WeMos D1 mini 0.66″ inch 64X48 IIC I2C 擴展板

商品說明

OLED Shield  for WeMos D1 mini 0.66″ inch 64X48 IIC I2C 擴展板

64×48像素（0.66“交叉）OLED屏蔽帶 I2C

• 屏幕尺寸：  64×48像素（0.66“橫向）
• 工作電壓：  3.3V
• 驅動IC：  SSD1306
• 接口：  IIC（I2C）
• IIC地址：  0x3C或 0x3D

Description: 64×48 pixels (0.66” Across) OLED Shield with I2C

Features:

• Screen Size: 64×48 pixels (0.66” Across)
• Operating Voltage: 3.3V
• Driver IC: SSD1306
• Interface: IIC(I2C)
• IIC Address: 0x3C or 0x3D

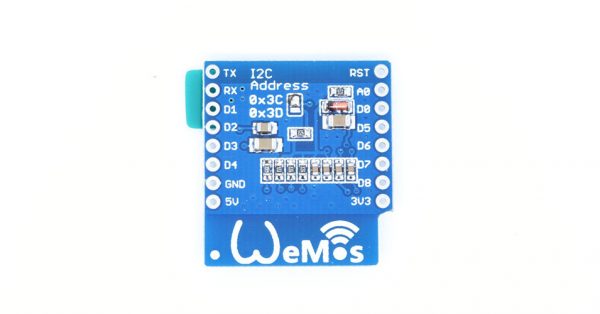

Pins:

Arduino Code:

SparkFun Library

• Install SparkFun_Micro_OLED_Arduino_Library
• Test Code

Adafruit SSD1306 Library

• Install Adafruit_SSD1306_Library (Add support by @mcauser)
• Test Code

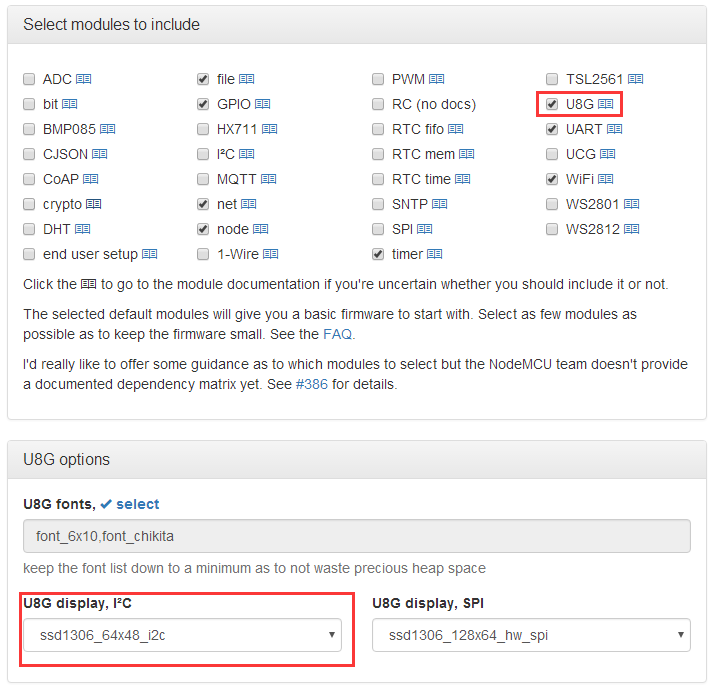

Arduino Code:

• Test code: oled_test.lua
