NUCLEO-F401RE STM32F401RE 開發板 原裝意法半導體進口

-24%

NUCLEO-F401RE STM32F401RE 開發板 原裝意法半導體進口

NT$810 NT$619 未稅

NUCLEO-F401RE  STM32F401RE 開發板 原裝意法半導體進口

STM32 Nucleo開發板具有mbed功能,支持Arduino接口,同時還提供ST Morpho擴展排針,可連接微控制器的所有周邊外設。作為一個具有mbed功能的電路板,STM32 Nucleo開發板讓開發人員能夠利用mbed開源軟件平台、在線工具和mbed.org的合作基礎設施開發創新應用。

尚有庫存

貨號: NUCLEO-F401RE(C3-4) 分類: , 標籤: , , , , , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

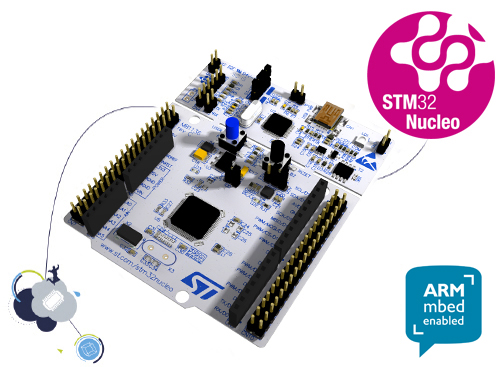

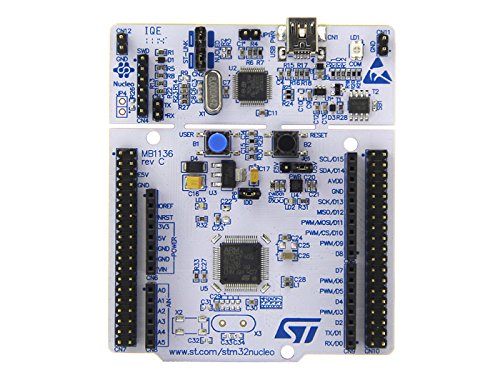

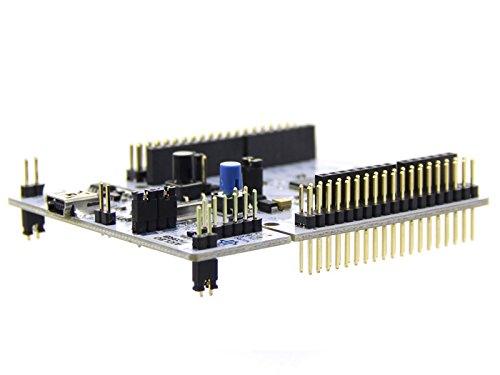

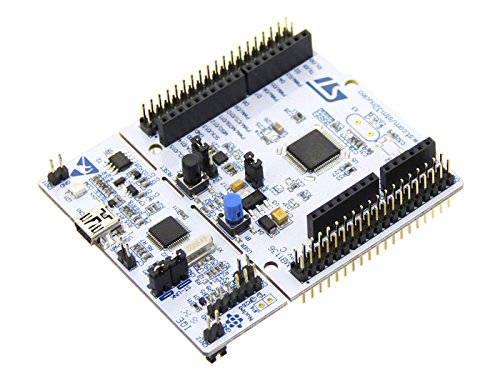

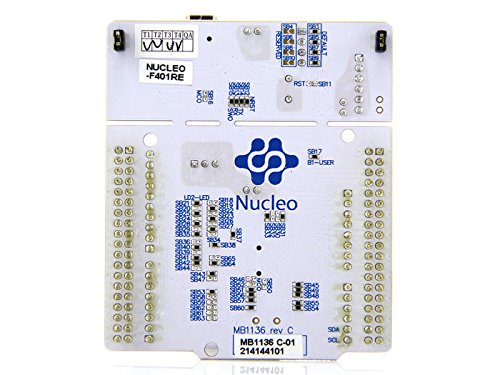

NUCLEO-F401RE  STM32F401RE 開發板 原裝意法半導體進口

STM32 Nucleo開發板具有mbed功能,支持Arduino接口,同時還提供ST Morpho擴展排針,可連接微控制器的所有周邊外設。作為一個具有mbed功能的電路板,STM32 Nucleo開發板讓開發人員能夠利用mbed開源軟件平台、在線工具和mbed.org的合作基礎設施開發創新應用。這塊板子的Arduino排針兼容Arduino巨大生態系統的各種Shield擴展板,讓設計人員能夠輕鬆快速增加特殊功能。意法半導體還利用公司的MEMS微加工技術、距離傳感器和無線控制產品,推出自主開發的支持Bluetooth® LE或Wi-Fi®接口、GPS和錄音的Shield專用功能擴展板。

STM32 Nucleo對STM32系列的全面支持讓設計人員能夠靈活地開發原型設計,在各個開發階段動態微調軟硬件。此外,每塊擴展板都可以配合STM32 Nucleo開發板重複用於在多個不同的項目中,從而保護客戶在專用電路板上的投資。

意法半導體微控制器產品部總經理Michel Buffa表示:“STM32 Nucleo將易用性、靈活性、連接功能和主流工具資源兼容性完美地融合在一起,是當今的嵌入式開發人員的理想的開發平台。STM32 Nucleo還為開發人員在各種不同項目中重新定位設計、再用硬件和軟件IP帶來更多靈活性,充分發揮STM32系列出色的外設多元化和系統擴展性優勢。”

ARM物聯網平台總監Simon Ford補充說:“這款具有mbed功能的STM32 Nucleo硬件讓意法半導體的客戶有機會利用龐大的mbed開發軟件、工具和社區生態系統,並支持新一代智能電子產品開發。”
四款STM32 Nucleo開發板支持STM32 F1、L1、F4和F0超值型系列,意法半導體預計將在2014年第二季度推出支持STM32 F3、L0和F0三個系列的後續產品。

Download Databrief

Mbed 原廠介紹 https://developer.mbed.org/platforms/ST-Nucleo-F401RE/

ST 原廠網頁 http://www.st.com/en/evaluation-tools/nucleo-f401re.html

NUCLEO-F401RE



The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features.

The Arduino™ connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer.

Microcontroller features

  • STM32F401RET6 in LQFP64 package
  • ARM®32-bit Cortex®-M4 CPU with FPU
  • 84 MHz max CPU frequency
  • VDD from 1.7 V to 3.6 V
  • 512 KB Flash
  • 96 KB SRAM
  • GPIO (50) with external interrupt capability
  • 12-bit ADC with 16 channels
  • RTC
  • Advanced-control Timer
  • General Purpose Timers (7)
  • Watchdog Timers (2)
  • USART/UART (4)
  • I2C (3)
  • SPI (3)
  • SDIO
  • USB 2.0 OTG FS

NUCLEO-F401RE Board features

  • Two types of extension resources
    • Arduino Uno Revision 3 connectivity
    • STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
  • On-board ST-LINK/V2-1 debugger/programmer with SWD connector
    • Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
  • Flexible board power supply
    • USB VBUS or external source (3.3 V, 5 V, 7 – 12 V)
    • Power management access point
  • User LED (LD2)
  • Two push buttons: USER and RESET
  • USB re-enumeration capability: three different interfaces supported on USB
    • Virtual Com port
    • Mass storage (USB Disk drive) for drag’n’drop programming
    • Debug port

Board pinout

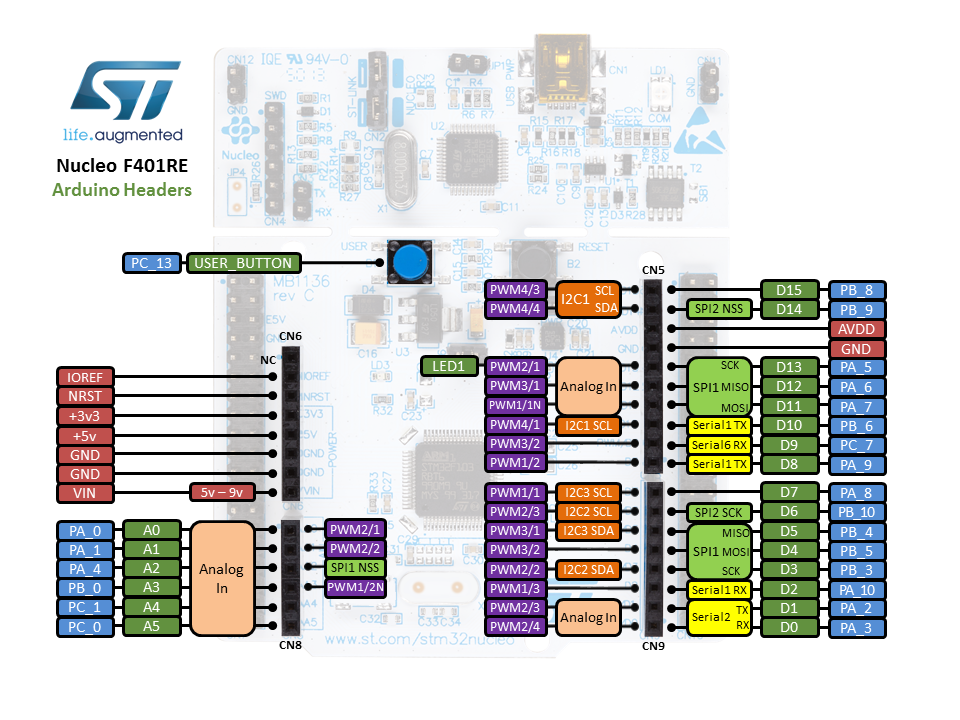

Arduino-compatible headers

/media/uploads/bcostm/nucleo64_revc_f401re_mbed_pinout_v3_arduino.png

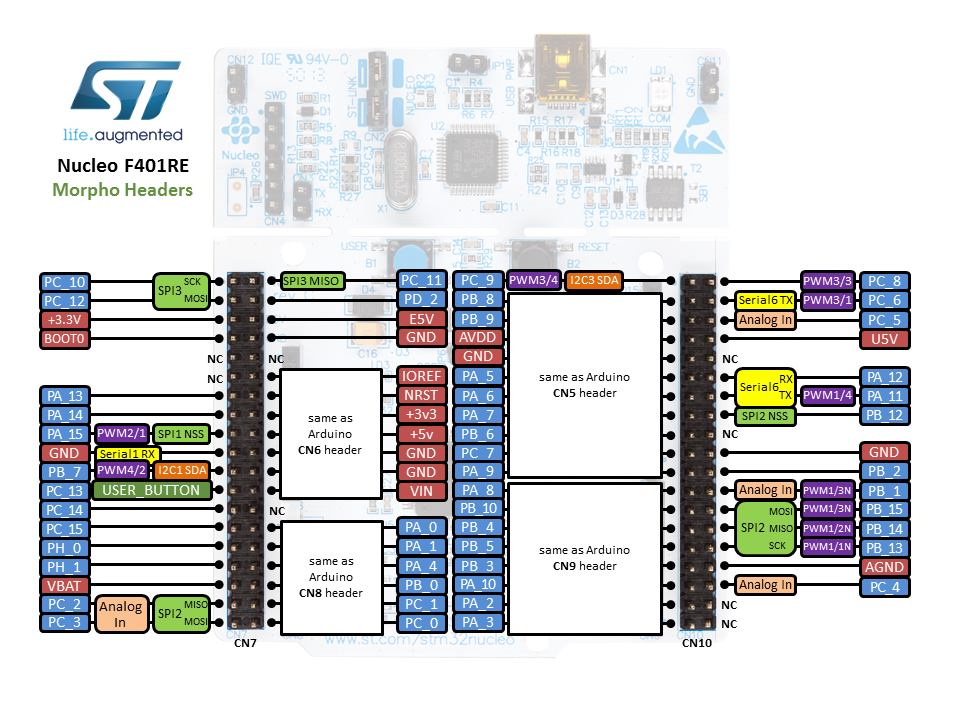

Morpho headers

These headers give access to all STM32 pins.NUCLEO-F401RE

Technical Documentation

Product Specifications
Description Version Size
DB2196 DB2196: STM32 Nucleo-64 board 8.0 257 KB
Technical Notes & Articles
Description Version Size
TN1235 TN1235: Overview of the ST-LINK embedded in STM32 MCU Nucleo, Discovery Kits and Eval Boards 1.0 155 KB
User Manuals
Description Version Size
UM1727 UM1727: Getting started with STM32 Nucleo board software development tools 5.0 2 MB
UM1724 UM1724: STM32 Nucleo-64 board 11.0 3 MB
Design Notes & Tips
Description Version Size
DT0047 DT0047: How to install and run the osxMotionAR Activity Recognition library 1.1 273 KB
DT0050 DT0050: How to install and run the osxMotionFX Sensor Data Fusion library 1.2 176 KB
DT0049 DT0049: IFR configuration of BlueNRG/BlueNRG-MS using STM32ODE 2.1 120 KB
DT0075 DT0075: MotionFX orientation estimation 1.0 524 KB

Hardware Resources

Board Manufacturing Specifications
Description Version Size
STM32 Nucleo (64 pins) gerber files 1.0 900 KB
Bill of Materials
Description Version Size
STM32 Nucleo (64 pins) BOM 2.0 192 KB
Schematic Packs
Description Version Size
STM32 Nucleo (64 pins) schematics 1.0 958 KB

Publications and Collaterals

Flyers
Description Version Size
STM32 Nucleo boards 18.0 1 MB
STM32 for makers Releasing your creativity 16.09 1 MB
STM32F401/10/11/12/13 – High-performance Access lines 16.12 1 MB
Brochures
Description Version Size
STM32™ 32-bit MCU family – Leading supplier of ARM® Cortex®-M microcontrollers 18.0 1 MB

Legal

License Agreement
Description Version Size
Evaluation products license agreement 1.0 125 KB
Open Reference Material License Agreement v5 42 KB
