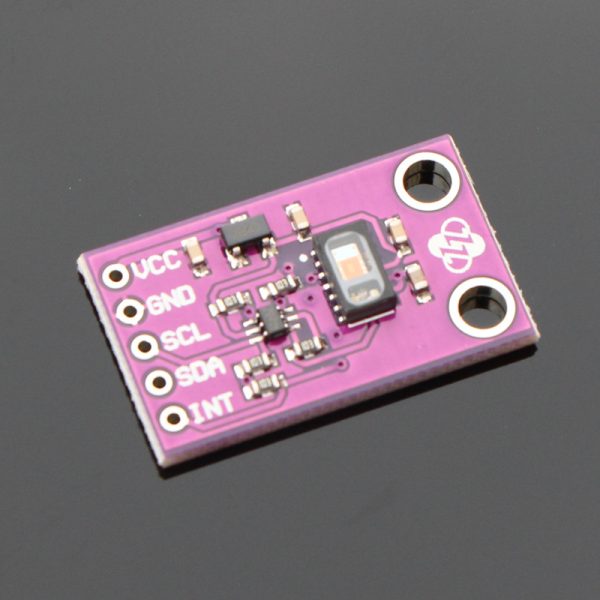

TB2VR_yul8lpuFjy0FnXXcZyXXa_!!602815714

MAX30105 光學感測器 顆粒感應 煙霧探測火焰傳感器模組

MAX30105 光學感測器 顆粒感應 煙霧探測火焰傳感器模組 含 Arduino 函數庫與範例

MAX30105  傳感器是一個靈活，強大的傳感器，可以檢測距離，心率，粒子檢測甚至眼睛的眨眼。MAX30105 配備了三個LED以及非常靈敏的光子探測器。這個想法是脈沖不同的LED，然後檢測什麼發光。根據反映的簽名，可以檢測不同類型的顆粒或材料（如氧氣或火焰中的煙霧）。

貨號： 52484211 分類： , , 標籤： , , ,
  • 商品說明

商品說明

MAX30105 光學感測器 顆粒感應 煙霧探測火焰傳感器模組 含 Arduino 函數庫與範例

MAX30105  傳感器是一個靈活，強大的傳感器，可以檢測距離，心率，粒子檢測甚至眼睛的眨眼。MAX30105 配備了三個LED以及非常靈敏的光子探測器。這個想法是脈沖不同的LED，然後檢測什麼發光。根據反映的簽名，可以檢測不同類型的顆粒或材料（如氧氣或火焰中的煙霧）。MAX30105採用紅色LED，綠色LED和紅外（紅外）LED，可用於現場感應，心跳圖和心率監測等多種用途，包括 Pulse Oximetry。MAX30105 的工作電壓為5V，可與3.3V和5V微控制器通訊。我們還編寫了一個用於MAX30105分組的Arduino庫，該庫用於處理所有I 2 C通信，位移，寄存器寫入和样本讀取。

Particle Sensor Breakout MAX30105

The MAX30105 is an integrated particle-sensing module.It includes internal LEDs, photodetectors, optical elements,and low-noise electronics with ambient light rejection. The
MAX30105 provides a complete system solution to ease the design-in process of smoke detection applications including fire alarms. Due to its extremely small size, the MAX30105 can also be used as a smoke detection sensor for mobile and wearable devices. The MAX30105 operates on a single 1.8V power supply and a separate 5.0V power supply for the internal LEDs.
It communicates through a standard I2C-compatible interface. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.
The MAX30105 utilizes a red LED, a green LED, and an IR (Infrared) LED for presence sensing, heart-beat plotting and heart-rate monitoring among its multitude of uses, including Pulse Oximetry. The MAX30105 is designed to operate at 5V and can communicate with both 3.3V and 5V microcontrollers. We’ve also written an Arduino library for the MAX30105 Breakout which takes care of all of the I2C communication, bit shifting, register writing and sample reading.
  • Built-in Red, IR, and Green LEDs
  • 5V operation (3.3V is allowed, but green LED is not guaranteed to operate)
  • Onboard 1.8V regulation and I2C interface circuitry
  • Sensitivity configurable down to 7.81pA
  • 3200Hz maximum sample rate
  • Built-in 32 sample FIFO (First In, First Out)
  • Applications include presence detection, distance sensing (18″ max), pulse oximetry, blood oxygen saturation level (SpO2), smoke and particle detection
