Lopy & WiPy Expansion board Pycom 開發套件附件 適用 LoPy,WiPy 2.0

-11%

Lopy & WiPy Expansion board Pycom 開發套件附件 適用 LoPy,WiPy 2.0

NT$857 NT$762 未稅

Lopy & WiPy Expansion board Pycom 開發套件附件適用 LoPy,WiPy 2.0

為了有助於加速開發您的項目,此擴展板可易於接入Pycom板上的引腳。提供引腳輸出、用於電源和串行通信的微型USB連接器、鋰聚合物電池充電器、倒置電池保護、微型SD卡槽、按鈕和用戶LED。

已售完

貨號: 114990911(C4-5) 分類: 標籤: , , , ,
  • 商品說明

商品說明

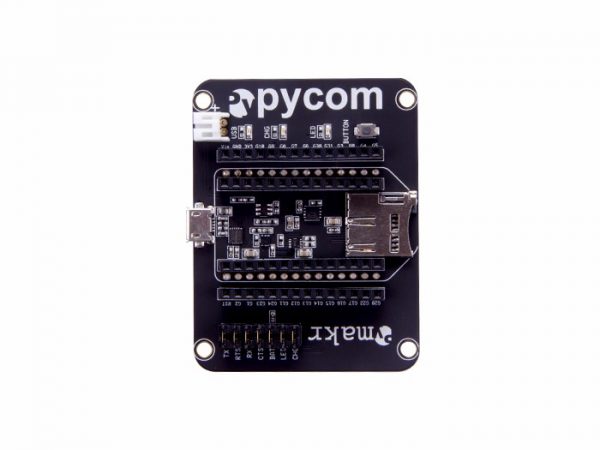

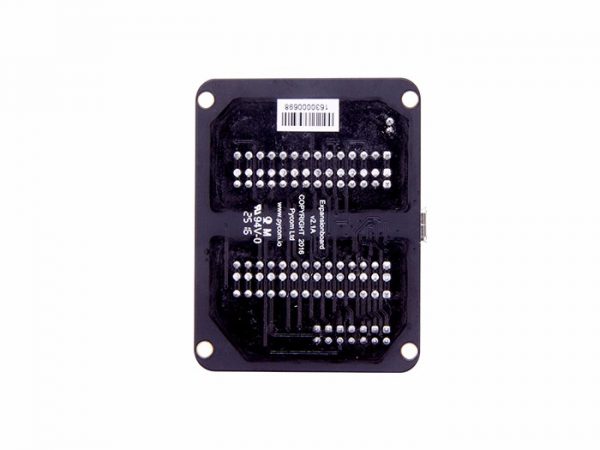

Lopy & WiPy Expansion board Pycom 開發套件附件 適用 LoPy,WiPy 2.0

為了有助於加速開發您的項目,此擴展板可易於接入Pycom板上的引腳。提供引腳輸出、用於電源和串行通信的微型USB連接器、鋰聚合物電池充電器、倒置電池保護、微型SD卡槽、按鈕和用戶LED。

  • USB和鋰聚合物電池供電
  • 2種充電電流– 100 mA和450 mA
  • 2個母管座,用於您的Pycom板(WiPy 2.0、SiPy或LoPy)
  •  JST型電池連接器
  • 電源和充電狀態LED
  • 電池電壓監控
  • 尺寸:65 x 50 x 12 mm。
Description

The expansion board is compatible with both the LoPy and the WiPy 2.0.

    • All  WiPy  and  LoPy  pins are available on breakout pins
    • Micro USB Connector for power and for serial communication.
    • User Button
    • User LED
    • Reverse battery protection
    • LiPo battery charger
    • Micro SD card connector with push-pull function
  • 7 jumpers for enabling and disabling features

  • USB and LiPo battery powered.
  • FT234XD USB to serial converter.
  • LiPo battery charger (BQ24040), with options for 2 different charging currents (100mA and 450mA).
  • TPS2115A with reverse voltage protection.
  • MicroSD card slot.
  • 2 female headers to easily plug in the WiPy 2.0, SiPy or the LoPy. This expansion board is not compatible with WiPy 1.0
  • JST style battery connector.
  • Power LED and charge status LED.
  • 1 user LED and 1 user switch.
  • Battery voltage monitoring via the WiPy ADC.
  • Lots of jumpers to enable/disable features.
  • Dimensions: 65 x 50 x 12 mm.

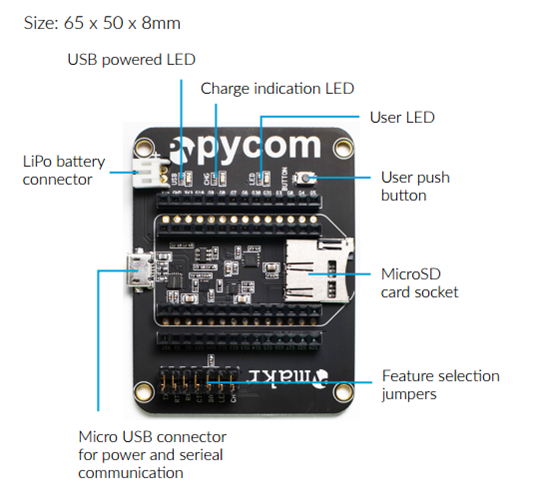

Mechanical

Lopy & WiPy Expansion board Pycom

Part List.jpg

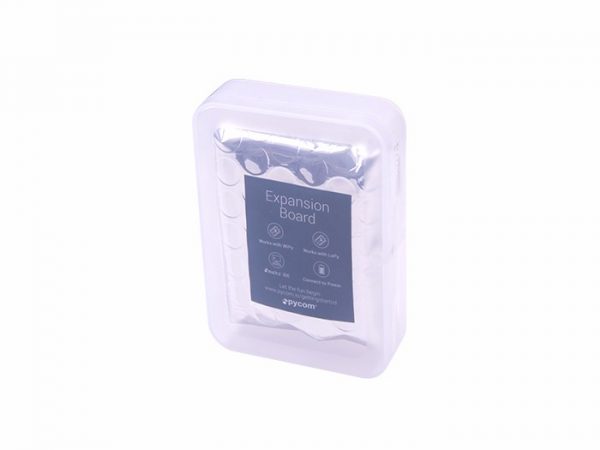

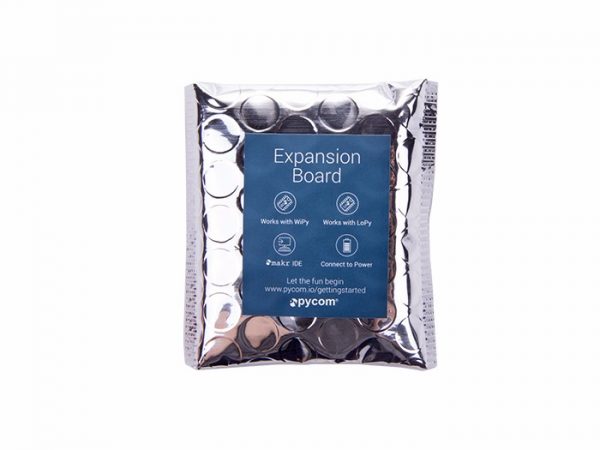

1 x Expansion board for LoPy or WiPy

Documents

User Manual

Documents  download
