LIDAR-Lite v3 雷射激光高性能光學距離測量感測器 Sparkfun原廠

商品說明

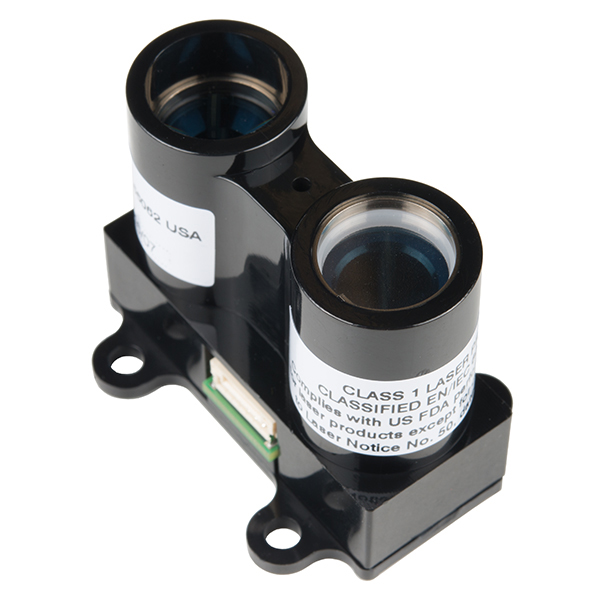

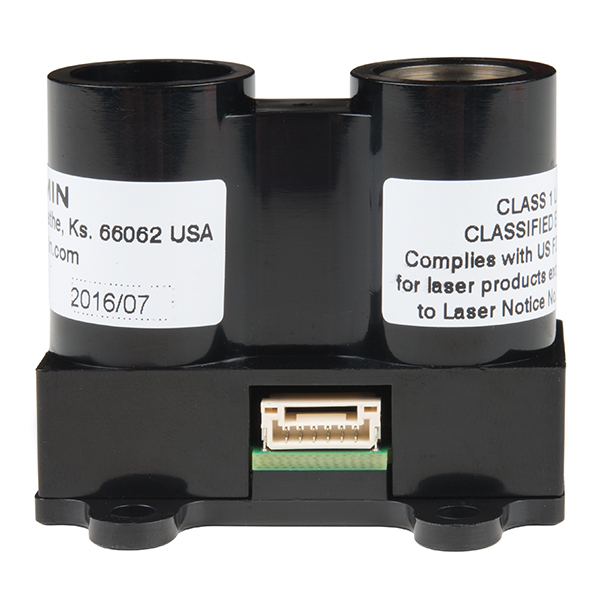

LIDAR-Lite v3 雷射激光高性能光學距離測量感測器

Garmin™的緊湊型高性能光學距離測量傳感器。當空間和重量要求緊張時，LIDAR-Lite v3飆升。LIDAR-Lite v3是無人機，機器人或無人駕駛車輛應用的理想解決方案。這種易於使用的40米激光光學測距傳感器具有使LIDAR-Lite v2如此受歡迎的所有核心功能。體積小，重量輕，在採集過程中功耗低於130mA。而且它是用戶可配置的，因此您可以在精度，工作範圍和測量時間之間進行調整。

每個LIDAR-Lite v3具有邊緣發射，905nm（1.3瓦），單條條紋激光發射器，4米Radian x 2米Radian光束髮散和12.5mm光學孔徑。LIDAR-Lite的第三個版本仍然在5V直流工作，連續運行時的電流消耗率<100mA。除了其他一切以外，LIDAR-Lite是用戶可配置的，允許在精度，操作範圍和測量時間之間進行調整。可以通過I ² C或PWM與附帶的200mm附件電纜連接。

尺寸： 20 x 48 x 40 mm（0.8 x 1.9 x 1.6英寸）

特徵：

• 範圍：0-40m激光發射器
• 精度：距離大於1m時+/- 2.5cm
• 功率：4.75-5V DC; 6V最大
• 電流消耗：105mA空閒; 130mA連續
• 頻率：1-500Hz
• 激光波長/峰值功率：905nm / 1.3瓦
• 光束髮散：4m Radian x 2m Radian
• 光學孔徑：12.5mm
• 接口：I ² C或PWM

文件：

• 操作和技術手冊
• LIDAR-Lite v3 Arduino函數庫
• 產品演示
• 產品頁



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



LIDAR-Lite v3

This is the LIDAR-Lite v3, a compact, high-performance optical distance measurement sensor from Garmin™. When space and weight requirements are tight, the LIDAR-Lite v3 soars. The LIDAR-Lite v3 is the ideal solution for drone, robot or unmanned vehicle applications.

This easy-to-use 40-meter laser-based optical ranging sensor has all the core features that made the LIDAR-Lite v2 so popular. Small in form and light in weight with low power consumption of less than 130mA during an acquisition. And it’s user-configurable so you can adjust between accuracy, operating range and measurement time.

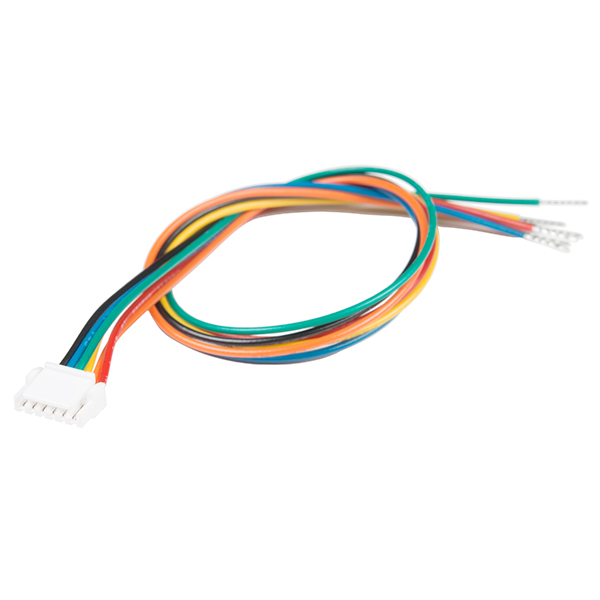

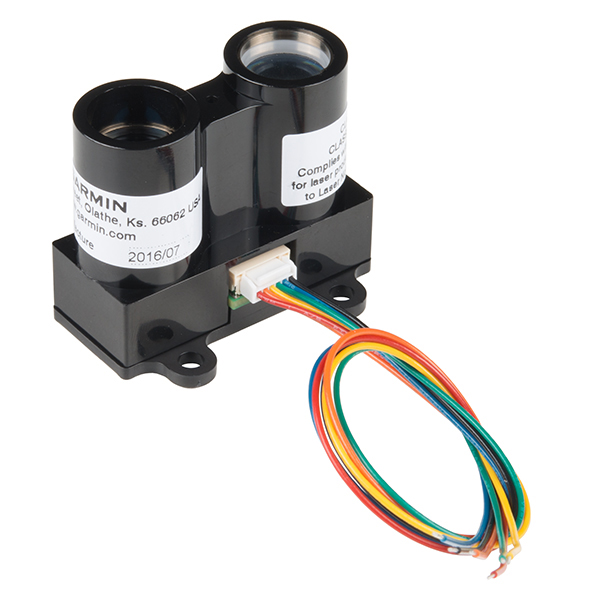

Each LIDAR-Lite v3 features an edge-emitting, 905nm (1.3 watts), single-stripe laser transmitter, 4 m Radian x 2 m Radian beam divergence, and an optical aperture of 12.5mm. The third version of the LIDAR-Lite still operates at 5V DC with a current consumption rate of <100mA at continuous operation. On top of everything else, the LIDAR-Lite is user-configurable, allowing adjustment between accuracy, operating range and measurement time. It can be interfaced via I²C or PWM with the included 200mm accessory cable.

Note: CLASS 1 LASER PRODUCT CLASSIFIED EN/IEC 60825-1 2014. This product is in conformity with performance standards for laser products under 21 CFR 1040, except with respect to those characteristics authorized by Variance Number FDA-2016-V-2943 effective September 27, 2016.



Dimensions: 20 x 48 x 40 mm (0.8 x 1.9 x 1.6 inches)

Features:

• Range: 0-40m Laser Emitter
• Accuracy: +/- 2.5cm at distances greater than 1m
• Power: 4.75–5V DC; 6V Max
• Current Consumption: 105mA idle; 130mA continuous
• Rep Rate: 1–500Hz
• Laser Wave Length/Peak Power: 905nm/1.3 watts
• Beam Divergence: 4m Radian x 2m Radian
• Optical Aperture: 12.5mm
• Interface: I²C or PWM
