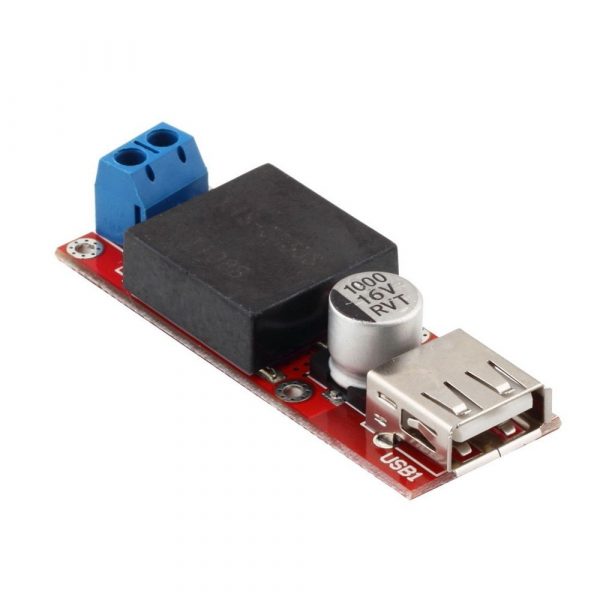

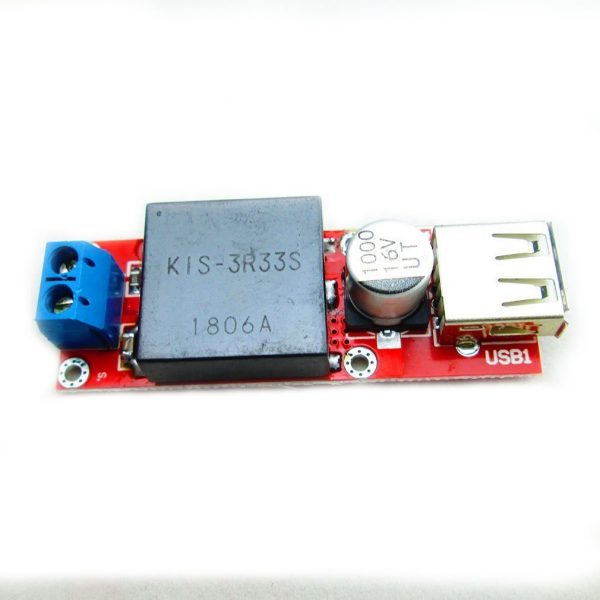

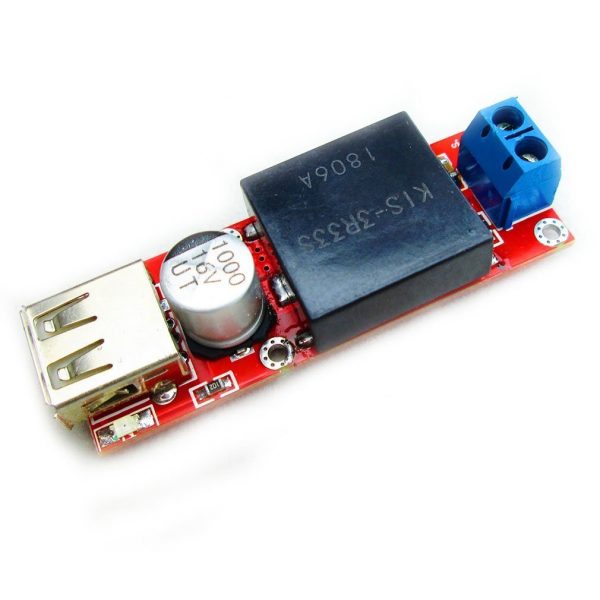

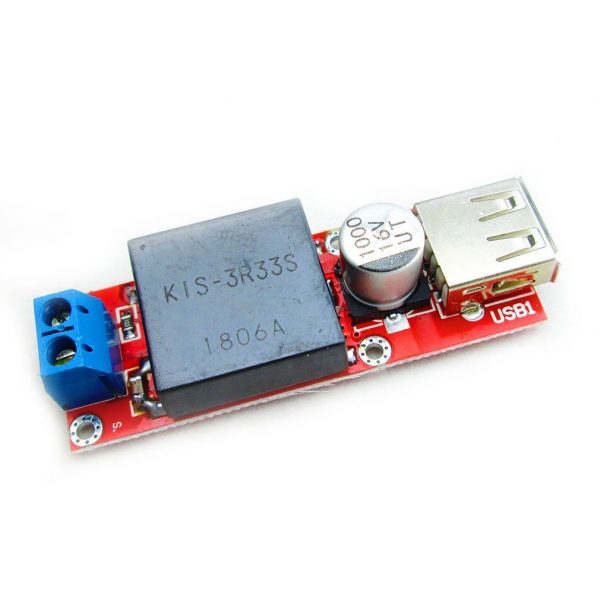

KIS3R33S 7V-24V 轉5V/3A 同步整流 DC-DC降壓電源模組

NT$114 未稅

KIS3R33S 7V-24V 轉5V/3A 同步整流 DC-DC降壓電源模組

本電源模組是根據日本原產的KIS3R33S模組特定設計,輸入電壓7V至24V輸出電壓5.01V,電流連續2.5A輸出峰值4A輸出!能夠提供3A的持續負載電流。經廣大玩家專業測試,具備超高效率,超低損耗的特點,完美超越lm2596電源模塊, 本模組有USB識別功能,使用低 ESR 的原裝三洋濾波電容,可以使紋波電壓低至30mV, 完全能和線性電源媲美!

尚有庫存

貨號: 546890434(A2-20) 分類: 標籤: , , , ,
  • 商品說明

商品說明

KIS3R33S 7V-24V 轉5V/3A 同步整流 DC-DC降壓電源模組

本電源模組是根據日本原產的KIS3R33S模組特定設計,輸入電壓7V至24V輸出電壓5.01V,電流連續2.5A輸出峰值4A輸出!能夠提供3A的持續負載電流。經廣大玩家專業測試,具備超高效率,超低損耗的特點,完美超越lm2596電源模塊, 本模組有USB識別功能,使用低 ESR 的原裝三洋濾波電容,可以使紋波電壓低至30mV, 完全能和線性電源媲美!

使用說明/注意事項:

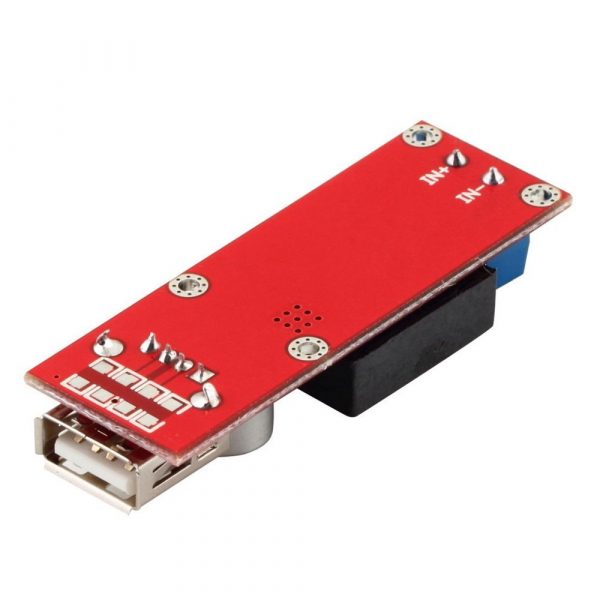

  • 模塊上面標明的IN-(輸入負),IN+(輸入正),OUT-(輸出負),OUT+(輸出正)務必接正確,否則的話可能導致模塊損壞。
  • 本模塊有短路保護功能,5A電流自動保護。

DC 7V-24V To DC 5V 3A USB Output Converter Step Down Module KIS-3R33S

  • This 5V USB output converter module is based on the KIS3R33S module specific design, the input voltage 7V to 24V, output voltage 5.01V 2.5A peak output current of 4A continuous output.
  • Able to provide 3A continuous load current. The majority of players professional testing, with high efficiency, ultra-low loss characteristics, beyond perfect lm2596 power module.
  • Modular nature: Non-isolated Buck
  • This module has a USB recognition. This module uses the original Sanyo low ESR filter capacitor voltage as low as possible so that the ripple 30mV, fully capable and linear power comparable. IN-(input negative), IN + (positive input), OUT-(negative output), OUT + (positive output) must be connected to the right, otherwise may cause damage to the module.
