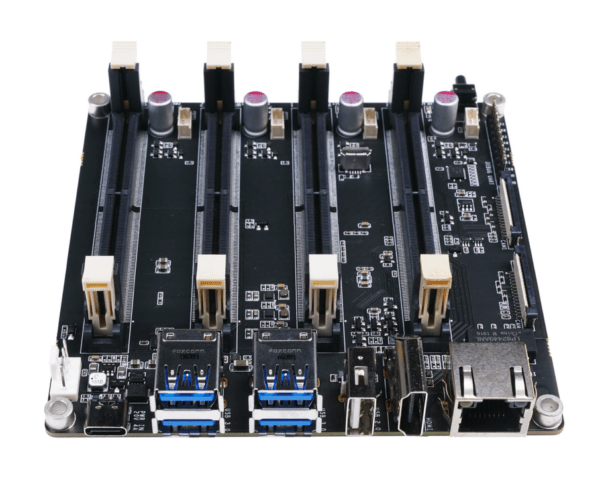

Jetson Mate Cluster Mini – Jetson Nano/NX Carrier Board

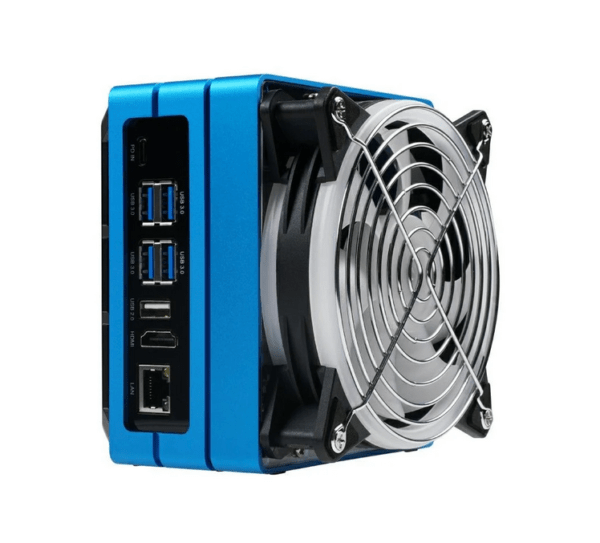

Jetson Mate Cluster Mini 包括一個 Jetson Mate、一個冷卻風扇和一個外殼。Jetson Mate 是一個載板，最多可以安裝 4 個 Nvidia Jetson Nano/NX SoM。板載 5埠交換機使4個SoM能夠相互通訊。所有 3個周邊 SoM 都可以單獨打開或關閉。借助用於 Jetson Nano 系統模組的 65W 2 端口 PD 充電器或用於 Jetson NX 系統模塊的 90W 2 端口 PD 充電器和一條網路線，開發人員可以輕鬆構建自己的 Jetson 集群。

該套件不包括SoM跟電源供應器。如果您有 Jetson Nano SoM，請使用 65W USB Type-C變壓器；如果您有 Jetson NX SoM，請使用 90W USB Type-C變壓器。


產品特徵

• 通過提供易於遵循的指南輕鬆構建 GPU 集群
• 一體式解決方案，帶有機箱和緊湊型冷卻風扇
• 最多可安裝 4 個 NVIDIA Jetson Nano/NX SoM
• 板載 5 端口千兆交換機，用於 SoM 相互通信
• 1個主節點和 3個工作節點，能夠單獨打開/關閉工作節點

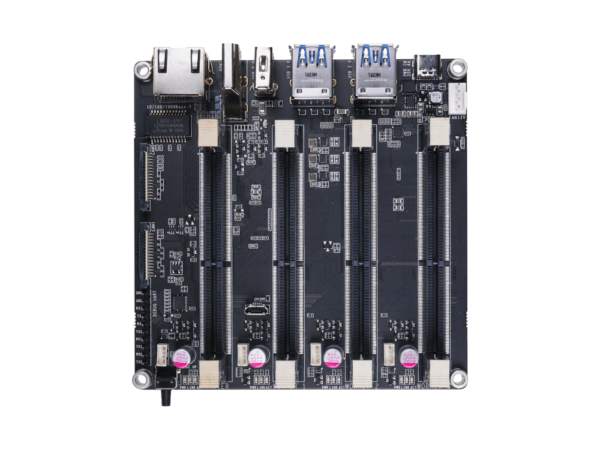

當所有的 SoM 都連接到 Jetson Mate 時，它將如下所示:

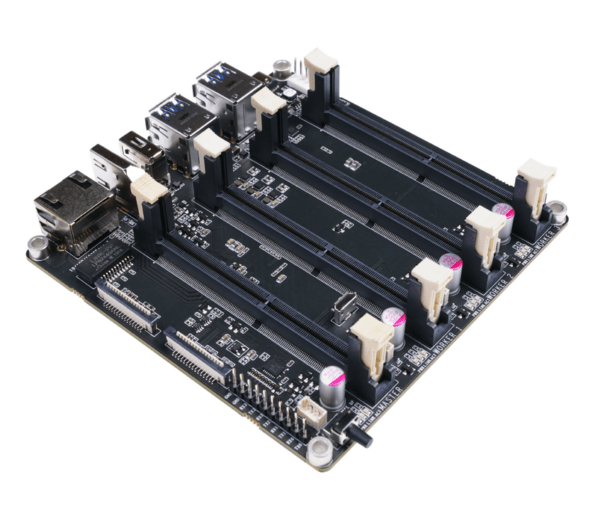

硬件概述

Seeed Weekly Show EP20 | Industrial Case for SBCs, Jetson Mate, re_computer HDD mounting bracket



規格

• Specification: Details
• Onboard 5-Port Gigabit Switch: Microchip KSZ9896CTXC
• Power:  65W PD for Jetson Nano SoMs
  90W PD for Jetson NX SoMs

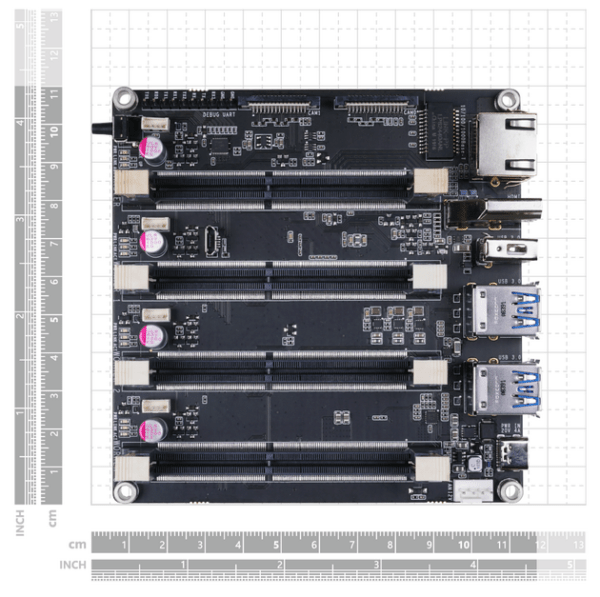

• Dimensions: 110mm x 110mm



出貨清單

• Jetson Mate 載板 x 1
• Jeston Mate 散熱風散座 x 1
• Jetson Mate 機殼 x 1



Documents

• [Wiki] Jetson Mate Cluster Mini – Jetson Nano/NX Carrier Board for GPU Cluster and Server
• [Project] Set up a Jetson NANO/NX Cluster in one systerm



Jetson Mate Cluster Mini – Jetson Nano/NX Carrier Board for GPU Cluster and Server

Features

• Easy to build a GPU cluster with easy-to-follow guides provided
• All-in-one solution with a case, cooling fan in a compact form factor
• Can install up to 4 NVIDIA Jetson Nano/NX SoMs
• Onboard 5-port Gigabit switch for the SoMs to communicate with each other
• One master node with 3 worker nodes with the ability to power on/off the worker nodes separately

Description

Jetson Mate Cluster Mini includes a Jetson Mate, a cooling fan, and a case. Jetson Mate is a carrier board in which you can install up to 4 NVIDIA Jetson Nano/NX SoMs. There is an onboard 5-port Gigabit switch enabling the 4 SoMs to communicate with each other. All the 3 peripheral SoMs can be powered on or off separately. With a 65W 2-Port PD charger, for Jetson Nano SoMs or a 90W 2-Port PD charger for Jetson NX SoMs, and one ethernet cable, developers can easily build their own Jetson Cluster.

資料來源：Seeed Studio 官方技術文件，經台灣物聯科技實測整理後彙整
