HMC6343 Breakout 電子羅盤模組 SparkFun原廠

NT$4,286 NT$4,143 未稅

HMC6343是一款完全集成的高端電子羅盤模塊,可以計算並在幾度內為您提供精確的航向。

尚有庫存

  • 商品說明

商品說明

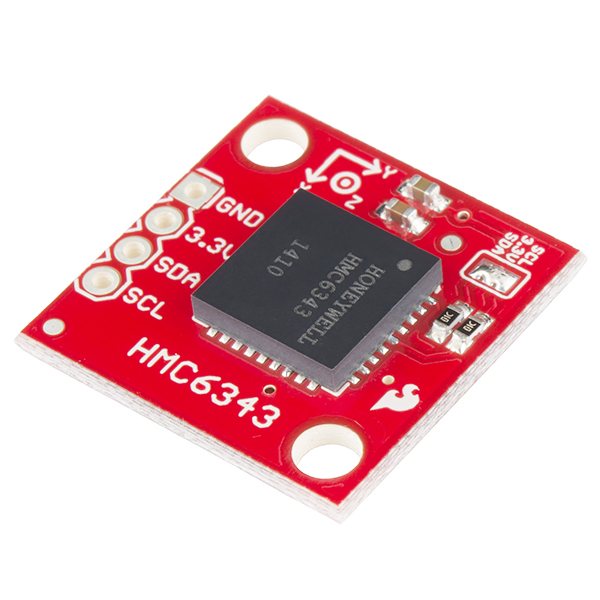

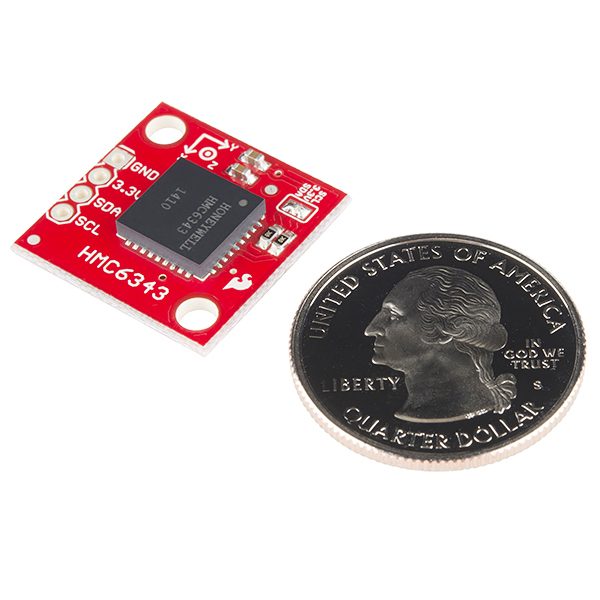

HMC6343 Breakout 電子羅盤模組 SparkFun原廠

HMC6343是一款完全集成的高端電子羅盤模塊,可以計算並在幾度內為您提供精確的航向。 它被傾斜補償並被校準以處理磁性失真。 此分線板可以輕鬆使用HMC6343。 所有這些都需要將電源和I2C連接到微控制器,以便模塊可以接收命令並將數據發回給用戶。

該IC結合了3軸磁阻傳感器和3軸MEMS加速度計,模擬和數字支持電路,微處理器和用於航向計算的固件算法。 HMC6343 Breakout需要提供3.3V @ 4.5mA的電流,可以每200ms(5Hz)測量和計算航向。 HMC6343的這塊主板可以打出發送命令並從電子羅盤收集數據所需的所有引腳,包括GND,3.3V,SDA和SCL。

SparkFun HMC6343突圍

特徵

  • 工作電壓:3.3V
  • 運行模式電流:4.5mA
  • 帶有標題/傾斜輸出的指南針
  • 單軸封裝的3軸MR傳感器,加速度計和微處理器
  • EEPROM存儲器
  • 2 C接口

Documents



=========================================================



The HMC6343 is a fully integrated high end electronic compass module that can compute and give you a heading direction that’s accurate within a couple degrees. It is tilt compensated and is calibrated to handle magnetic distortions. This breakout board allows for easy use of the HMC6343. All that is required is power and I2C connections to a microcontroller so that the module can receive commands and send data back to the user.

The IC combines 3-axis magneto-resistive sensors and 3-axis MEMS accelerometers, analog and digital support circuits, a microprocessor and algorithms in firmware required for heading computation. The HMC6343 Breakout needs to be supplied with 3.3V @ 4.5mA and can measure and compute a heading direction every 200ms (5Hz). This board for the HMC6343 breaks out the all the pins you’ll need to send commands and collect data from the electronic compass including GND, 3.3V, SDA, and SCL.

Features

  • Operating Voltage: 3.3V
  • Run Mode Current: 4.5mA
  • Compass with Heading/Tilt Outputs
  • 3-axis MR Sensors, Accelerometers and a Microprocessor in a Single Package
  • EEPROM Memory
  • I2C Interface
