Grove Shield for Pi Pico v1.0 Pico 擴展板 seeed原廠

商品說明

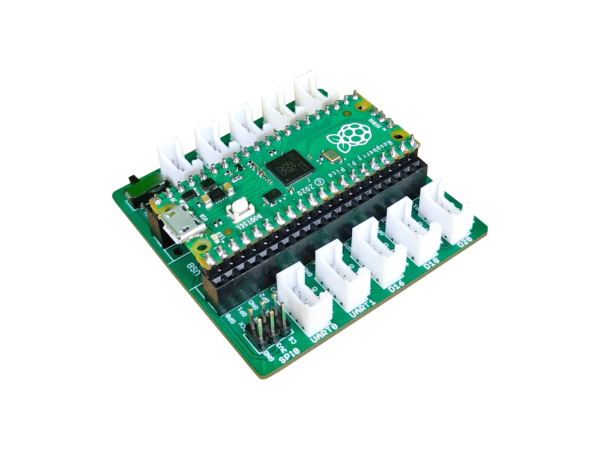

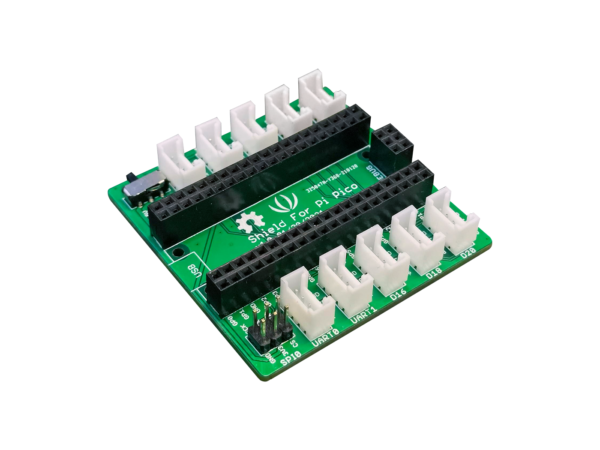

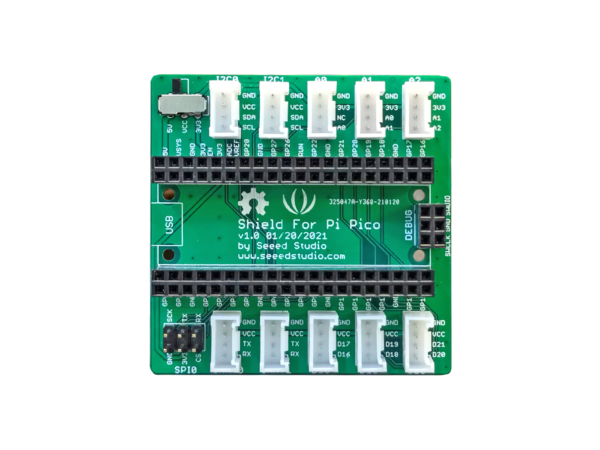

Grove Shield for Pi Pico v1.0 Pico 擴展板

Raspberry Pi Pico是一種新的流行的低成本，高性能微控制器板，那麼如何將Grove傳感器集成到它呢？Grove完美地解決了這個問題。用於Pico Pico v1.0的Grove Shield是用於Raspberry Pi Pico的即插即用屏蔽，它與各種Grove連接器集成在一起，包括2 * I2C，3 *模擬，2 * UART，3 *數字端口，SWD調試接口和SPI引腳，可選3.3v / 5v電源開關。它可以輕鬆快捷地構建原型和項目，而無需跳線和麵包板，您可以探索Pico的無限可能性。屏蔽板是可堆疊的附加板，可充當Pi Pico和Seeed的Grove系統的橋樑。

特徵

• 快速原型製作：易於調試和貼標籤，並可以與grove連接器和SWD引腳一起玩。
• 豐富的外設：2×I2C，2×UART，3×數字，3×模擬，SPI，SWD調試接口。
• 無需焊接：所有引腳都引出。便捷的即插即用Grove連接器支持多種數據協議，包括IIC，Uart，模擬/數字

Documents

• Grove Shield for Pi Pico V1.0



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

Grove Shield for Pi Pico v1.0

Key Features

• Quick Prototyping: Easy debug and Plag and play with grove connectors and SWD pin.

• Rich peripherals: 2 × I2C, 2 × UART, 3 × Digital, 3 ×Analog, SPI, SWD Debug interface.
• No Soldering Needed: All pin led out. Convenient plug and play Grove connectors support multiple data protocols, including IIC, Uart, Analog/Digital

Description

The Raspberry Pi Pico is a new popular low-cost, high-performance microcontroller board, so how to integrate Grove sensor to it?  The grove shield perfectly solved this problem.

The Grove Shield for Pi Pico v1.0 is a plug-and-play shield for Raspberry Pi Pico which integrates with various kinds of Grove connectors, including 2*I2C, 3*Analog, 2*UART, 3*Digital ports, SWD debug interface and SPI pin, 3.3v/5v selectable power switch. It enables the build prototype and project in an easy and quick way without jumper wire and breadboard, you could explore infinite possibilities of Pico. The shield board is a stackable add-on board which acts as a bridge for Pi Pico and Seeed’s Grove system.

Application

• SWD debug
• Rapid prototyping
• Wearable devices
• intelligent control

Part List

Grove shield for Pi Pico x1
