Grove LoRa Radio 433MHz 無線射頻開發模組 seeed原廠

NT$643 NT$567 未稅

Grove-LoRa Radio 433MHz的主要功能模塊是RFM98,它是一款採用LoRa遠程調製解調器的收發器,可提供超長距離擴頻通信且高抗干擾性,同時消耗微量電流.Grove-LoRa Radio 433MHz的核心處理器是ATmega168的,這是一種廣泛使用的芯片,具有很高的性能和低功耗,特別適用於這個Grove模塊。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Grove LoRa Radio 433MHz 無線射頻開發模組

Grove是由Seeed Studio開發的一個非常強大的平台,可以簡化您的物聯網項目。我們已經將grove連接器集成到Seeed生產的大多數主板上,以使它們成為一個系統。這一次,我們將Grove與LORA相結合,為您提供超遠距離無線模塊。

Grove-LoRa Radio 433MHz的主要功能模塊是RFM98,它是一款採用LoRa遠程調製解調器的收發器,可提供超長距離擴頻通信且高抗干擾性,同時消耗微量電流.Grove-LoRa Radio 433MHz的核心處理器是ATmega168的,這是一種廣泛使用的芯片,具有很高的性能和低功耗,特別適用於這個Grove模塊。

我們已經集成了一個簡單的線天線來接收信號,如果信號太弱,不用擔心,天線旁邊的MHF連接器可以用來增加一個帶有MHF接口的天線,雙天線可以獲得更多的信號。

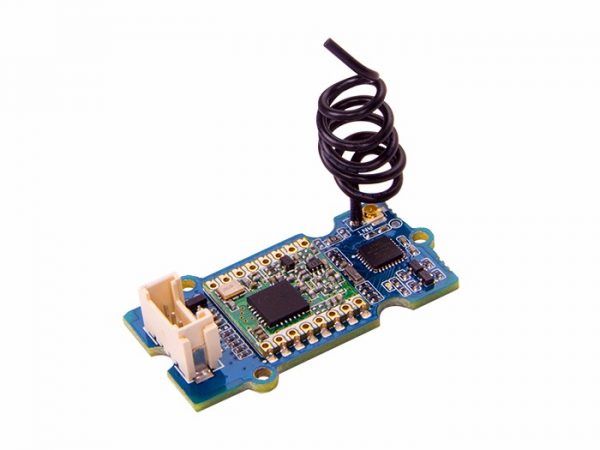

Grove - LoRa Radio 433MHz



特徵

  • 使用基於SX1276LoRa®的RFM95模塊
  • 工作電壓:5V / 3.3V
  • ~28mA(Avg)@ + 20dBm持續傳輸模式
  • 〜8.4毫安(平均)@待機模式
  • ~20mA(Avg)@接收模式,BW-500kHz
  • 工作溫度:-20 – 70℃
  • 接口:Grove – UART(RX,TX,VCC,GND)
  • 簡易線天線或者帶MHF連接頭的高增益天線
  • 工作頻率: 433MHz的
  • 電源輸出能力+ 20dBm 100 mW
  • 尺寸:20 *40毫米
  • 速率:0.3kps〜50kps
  • 簡單易用的Arduino庫
  • 備用可擴展MHF天線接頭

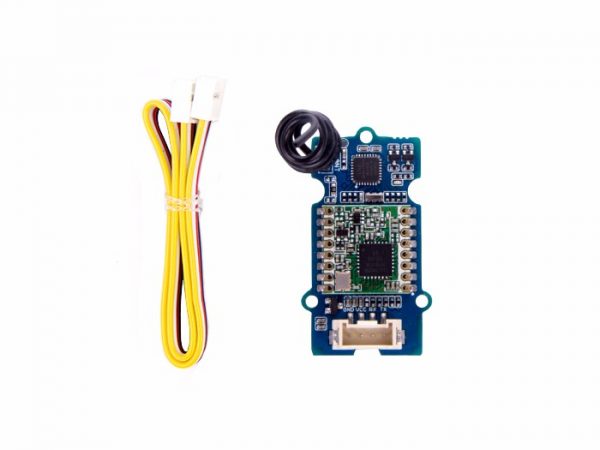

出貨清單

  • Grove – LoRa Radio 433MHz x1

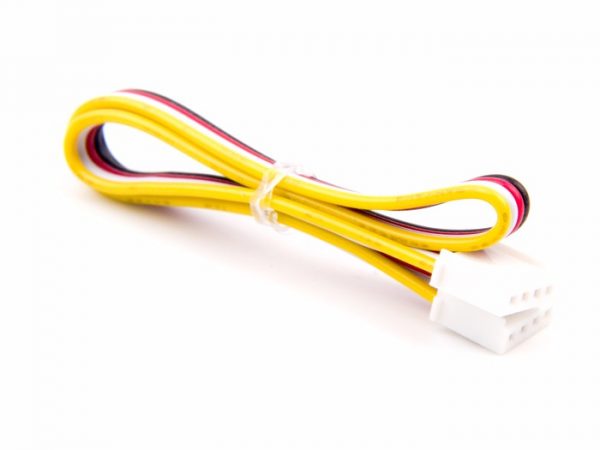

  • Grove連接線 x1



Documents



=========================================================



Grove LoRa Radio 433MHz

Grove is a very powerful platform developed by Seeed Studio to simplify your IoT projects.We have integrated the grove connector to most boards produced by Seeed to make them become a system. This time, we combined Grove with LoRa to provide an ultra-long-range wireless module for you.

The main functional module in Grove – LoRa Radio 433MHz is RFM98, which is a transceiver features the LoRa long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst mini-missing current consumption. The heart of Grove – LoRa Radio 433MHz is ATmega168, a widely used chip with very high-performance and low power consumption, especially suitable for this grove module.

There we already integrated a simple wire antenna to receive signal, if the signal is too weak to receive, don’t worry, the MHF connector next to the antenna is for adding a second antenna which has MHF interface to gain more signal.

Note

  • Please keep the antenna vertical to the board and as straight as possible to make the best performance.
  • Please avoid making any big metal object near the antenna and a metal cape is also not recommended if you need to add a cape for your device.

Features

  • Using RFM95 module based on SX1276 LoRa®
  • ~28mA(Avg) @+20dBm continuous transmit
  • ~8.4mA(Avg)@standby mode
  • ~20mA(Avg) @receive mode, BW-500kHz
  • Simple wire antenna or MHF Connector for external high gain antenna
  • +20dBm – 100 mW Power Output Capability

Technical details

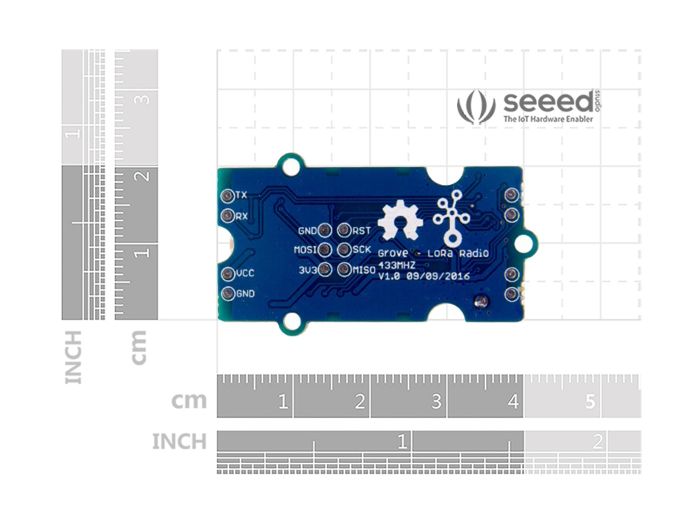

Dimensions 40mm x20mm x15mm
Weight G.W 11g
Battery Exclude
Inputting voltage 5V/3.3V
Working Temperature Working Temperature:-20 – 70℃
Communication Interface UART
Working Frequency 433MHz
