Grove – Infrared Emitter 紅外線發射模組 seeed原廠

商品說明

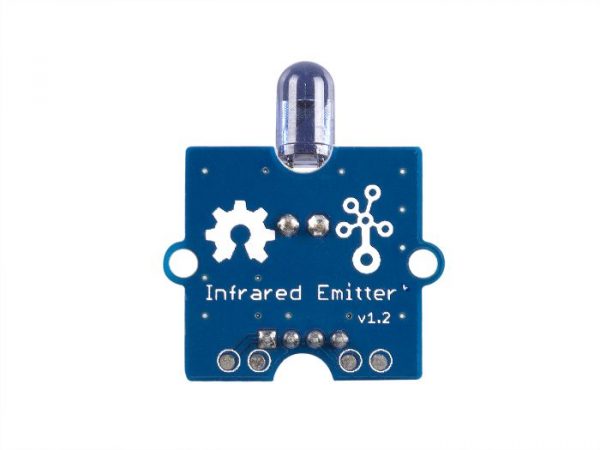

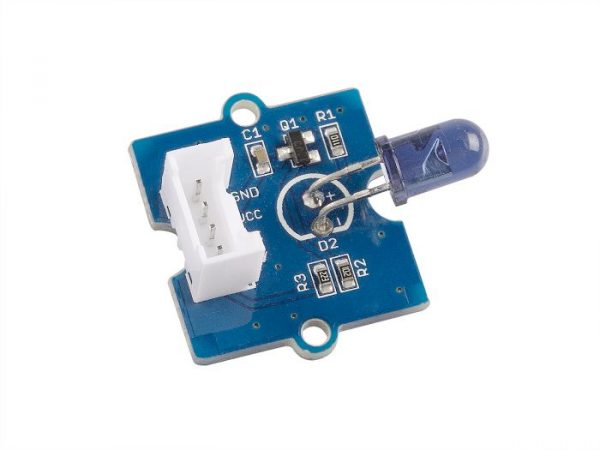

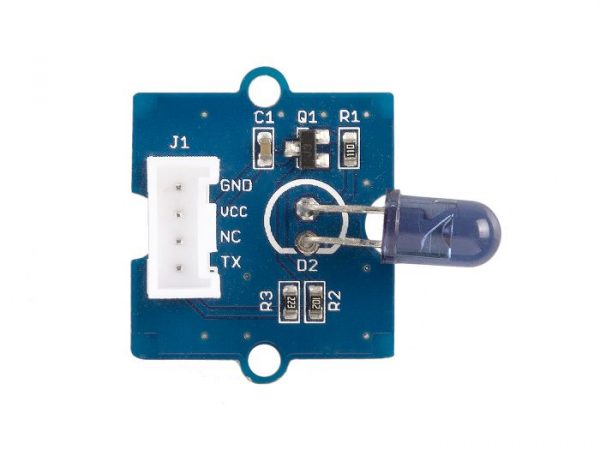

Grove Infrared Emitter 紅外線發射模組

用於通過紅外LED傳輸紅外信號，而在另一側有紅外接收器用於獲取信號。紅外LED就像任何其他LED一樣，它的波長940nm。我們不僅可以使用發射器來傳輸數據或命令，而且還可以使用Arduino模擬遙控控制您的家用電器。紅外發射器可以傳輸10米有效的信號。超過10米，接收器可能無法獲得信號。

規格

• 電壓：3.3-5V
• 信號有效距離：10m



出貨清單

• Grove – Infrared Emitter x1
• Grove連接線 x1



Documents

• Grove – Infrared Emitter wiki
• IR Send and Receiver Library
• TSAL6200 Datasheet
• Grove-Infrared Emitter eagle files



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Grove – Infrared Emitter

The Infrared Emitter is used to transmit infrared signals through an infrared LED, while there is an Infrared receiver to get the signals on the other side . An infrared LED is like any other LED, with its color centered around 940nm. We can use the emitter not only to transmit data or commands, but also to emulate remotes to control your home appliance using an Arduino. The Infrared Emitter can transmit signals reliable up to 10 meters. Beyond 10 meters, the receiver may not get the signals.
