Grove – Hall Sensor 霍爾感測器 seeed原廠

NT$200 NT$181 未稅


貨號: 101020046(A9-13) 分類: , , 標籤: , ,
  • 商品說明


Grove  Hall Sensor 霍爾感測器


Grove  - 霍爾傳感器



  • Grove兼容接口
  • 有400ns的上升和下降過渡期。
  • 高續航能力霍爾傳感器
  • 反接電池保護



  • Grove – Hall Sensor x1
  • Grove連接線 x1

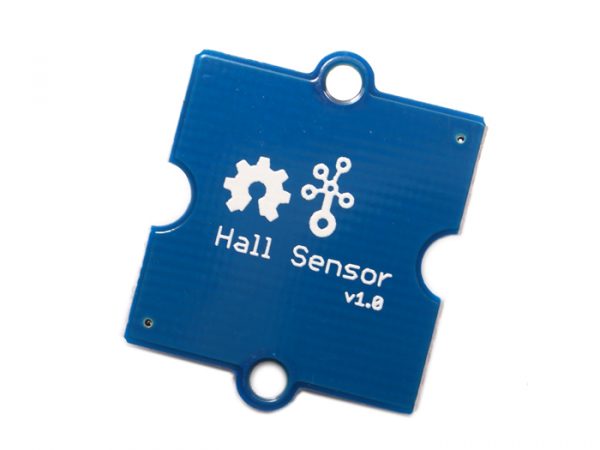

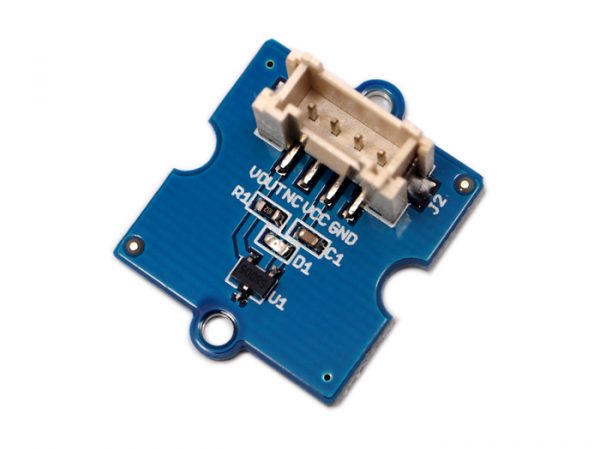

Grove – Hall Sensor

The Hall Sensor measures the Hall Effect, which is a production of a voltage difference across an electrical conductor, transverse to an electric current in the conductor as well as a magnetic field perpendicular to the current. The output of the continuous-time switch Hall sensor on this Twig switches low and turns on when a magnetic field (south polarity) perpendicular to the Hall sensor exceeds the BOP threshold, and it switches high and turn on when the magnetic field disappears.
  • Grove compatible interface
  • 400ns transition period for rise and fall.
  • Continuous-time hall effect sensor
Application Ideas
  • RPM meter.
  • Simple dc motor.

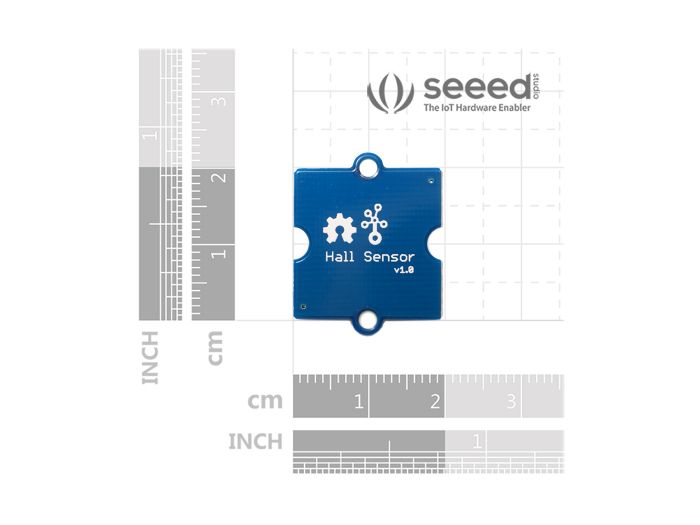

Mechanic Dimensions
  • 20mm by 24mm
