Name: FlexiForce 壓力感測器-25磅（1“area） Sparkfun原廠
SKU: SEN-11207(B3-7)
Price: 945 TWD
Availability: InStock

FlexiForce 壓力感測器-25磅（1“area） Sparkfun原廠

NT$900 未稅

這是Tekscan的壓阻力感測器。你按下的越硬，感測器的阻力就越低。努力的壓力，阻力從無限變化到〜50k。

尚有庫存

貨號： SEN-11207(B3-7) 分類： Sparkfun 美國原廠, 電子模組 / 感測器, 壓力感測器, 彎曲感測器標籤： FlexiForce, FlexiForce壓力感測器, SEN-11207, sparkfun 台灣代理

商品說明

商品說明

FlexiForce 壓力感測器 – 25磅（1“area）

這是Tekscan的壓阻力感測器。你按下的越硬，感測器的阻力就越低。努力的壓力，阻力從無限變化到〜50k。感測器本身薄且靈活，但彎曲時阻力不會改變。只有當壓力施加到感測器末端的圓形區域時，電阻才會改變。用作存在感測器（有人站立），重量感測器，壓力感測器（衝擊測試）等

整體長度約為2.25英寸，傳感器配有一個0.1英寸的加強型麵包板友好連接器。

FlexiForce 壓力感測器的壓力範圍從0到25磅。

FlexiForce Pressure Sensor - 25lbs (1" area)

Documents

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

FlexiForce Pressure Sensor – 25lbs (1″ area)

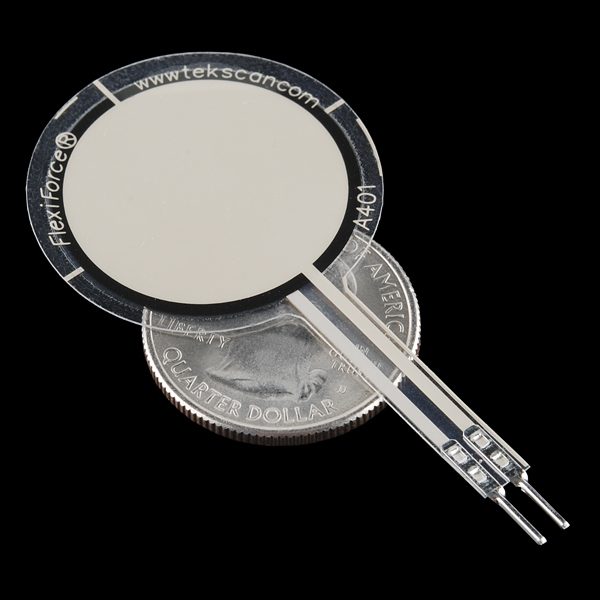

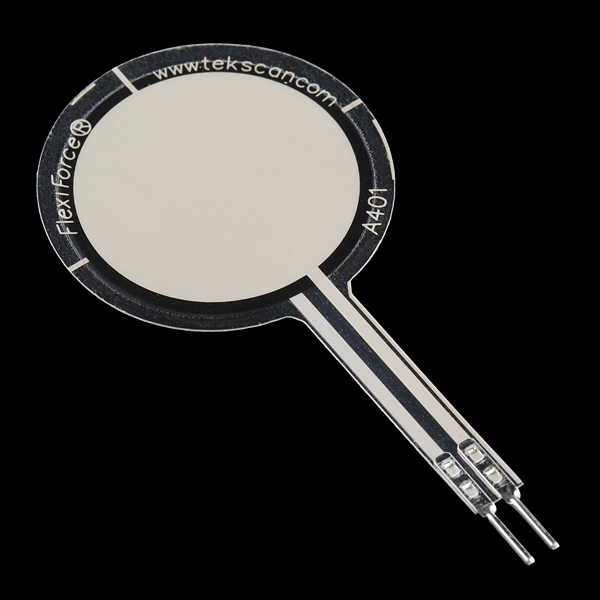

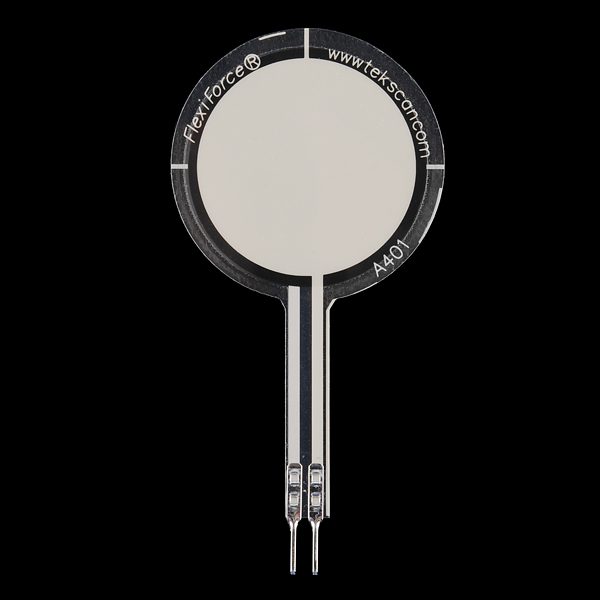

This is a piezoresistive force sensor from Tekscan. The harder you press, the lower the sensor’s resistance. Pressing hard, the resistance changes from infinite to ~50k. The sensor itself is thin and flexible, but the resistance does not change while being flexed. Resistance changes only when pressure is applied to the round area at the end of the sensor. Used as a presence sensor (someone standing), weight sensor, pressure sensor (impact testing), etc.

The overall length is about 2.25″. The sensor comes with a 0.1″ spaced, reinforced, breadboard friendly connector.

This sensor ranges from 0 to 25lbs of pressure.
