DS18B20 測溫傳感器 模組 for For WeMos D1 mini 溫度感測器模組

-12%

DS18B20 測溫傳感器 模組 for For WeMos D1 mini 溫度感測器模組

NT$81 NT$71 未稅

DS18B20 測溫傳感器模組 for For WeMos D1 mini 溫度感測器模組

尚有庫存

貨號: 214372537(A7-17) 分類: 標籤: , , , , , ,
  • 商品說明
  • 評論 (0)

商品說明

DS18B20 測溫傳感器 模組 for For WeMos D1 mini 溫度感測器模組

DS18B20 測溫傳感器 產品特點:

  1. 配套D1 MINI使用
  2. Arduino 兼容,使用Arduino IDE進行編程
  3. 11XI/O引腳
  4. 1XADC引腳(輸入0-3.3V)
  5. 支持OTA上線

發貨清單(靜電袋包裝):

1.長型排母X2PCS
2.短型排母X2PCS
3.普通排針X2PCS

4.DS18B20測溫模塊(FOR D1-MINI)X1PCS

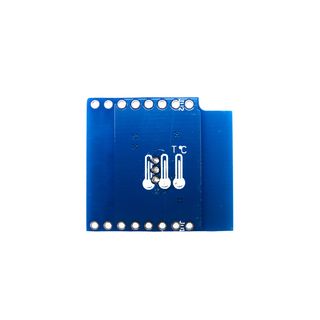

DS18B20 測溫傳感器 模組 for For WeMos D1 miniDS18B20 測溫傳感器

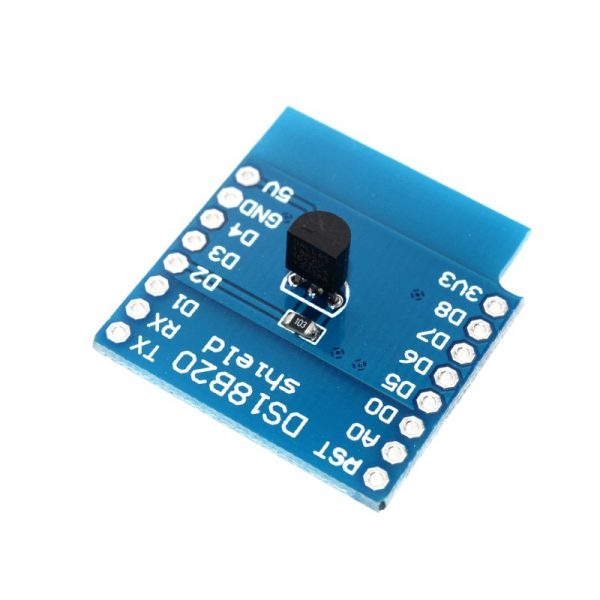

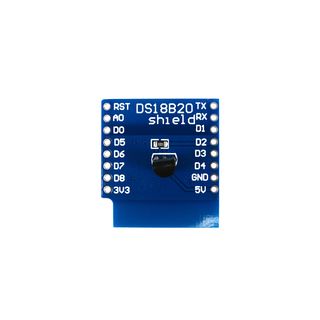

引腳定義(DS18B20測溫模塊VCC與GND連接D1 MINI主板,佔用數據IO口為D2):

The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user-programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definition requires only one data line (and ground) for communication with a central micro-processor. In addition, the DS18B20 can derive power directly from the data line (?parasite power?), eliminating the need for an external power supply.

Each DS18B20 has a unique 64-bit serial code, which allows multiple DS18B20s to function on the same 1-Wire bus. Thus, it is simple to use one microprocessor to control many DS18B20s distributed over a large area. Applications that can benefit from this feature include HVAC environmental controls, temperature monitoring systems inside buildings, equipment, or machinery, and process monitoring and control systems.

Features

    • Unique 1-Wire® Interface Requires Only One Port Pin for Communication
    • Reduce Component Count with Integrated Temperature Sensor and EEPROM
    • Measures Temperatures from -55°C to +125°C (-67°F to +257°F)
    • ±0.5°C Accuracy from -10°C to +85°C
    • Programmable Resolution from 9 Bits to 12 Bits
    • No External Components Required
    • Parasitic Power Mode Requires Only 2 Pins for Operation (DQ and GND)
    • Simplifies Distributed Temperature-Sensing Applications with Multidrop Capability
    • Each Device Has a Unique 64-Bit Serial Code Stored in On-Board ROM
    • Flexible User-Definable Nonvolatile (NV) Alarm Settings with Alarm Search Command Identifies Devices with Temperatures Outside Programmed Limits

Lieferumfang

1x WeMos DS18B20 Shield für D1 mini

2x Stiftleiste kurz

2x Buchsenleiste kurz

2x Buchsenleiste lang
