Name: SeeedStudio BeagleBone Green 綠色 狗骨頭 單板電腦 ARM開發板 兼容Grove感測器
SKU: 102010027
Price: 1890 TWD
Availability: OutOfStock

SeeedStudio BeagleBone Green 綠色狗骨頭單板電腦 ARM開發板兼容Grove感測器

NT$1,800 未稅

BeagleBone Black 及 Seeed’s Grove 著力開發的BeagleBone Green 承襲 BeagleBoard 家族的設計特性：體積小性能強大，可擴充性強。

Beaglebone 運行的是完整的Linux 操作系統，代碼的編寫編譯都可以在本地進行，而且可以使用的語言種類繁多。例如，常用的C 、C++ 、Python 、Perl 都可以用來為Beaglebone 編程。不像Arduino ，只是一個最基本的單片機，程序的編寫、編譯都是在計算機上進行，而且調試非常困難。不僅如此，Beaglebone 自帶了基於Web 的Cloud9 編輯器，這使得你只要有電腦和瀏覽器，就可以為Beaglebone 編程。

備註: 有客戶問到原廠影片中 Green 為測試模型，所以有鈕釦型電池座的設計，但最終銷售版本是沒有的喔。

請參考官方網站上影片文件說明中後面有備註 Note: The RTC battery was removed from the final design. http://beagleboard.org/green

已售完

貨號： 102010027 分類： BeagleBone 狗骨頭開發板標籤： arm, bbg, BeagleBone, BeagleBone Green, linux, 德州儀器, 狗骨頭

商品說明

商品說明

BeagleBone Black 及 Seeed’s Grove 著力開發的BeagleBone Green 承襲 BeagleBoard 家族的設計特性：體積小性能強大，可擴充性強。

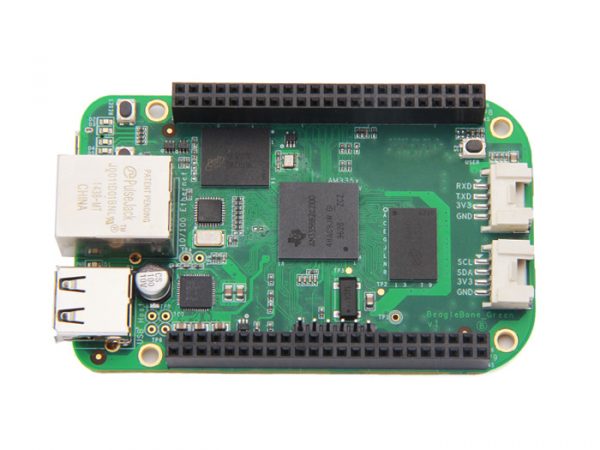

Features:

Based on AM3358 1GHz ARM Cortex-A8, 512MB DDR3 RAM
Provides 4GB 8-bit eMMC on-board flash storage
Cost-effective BeagleBone® compatible board with on-board Grove connectors to extend possibilities
Fully compatible with BeagleBone® Black capes

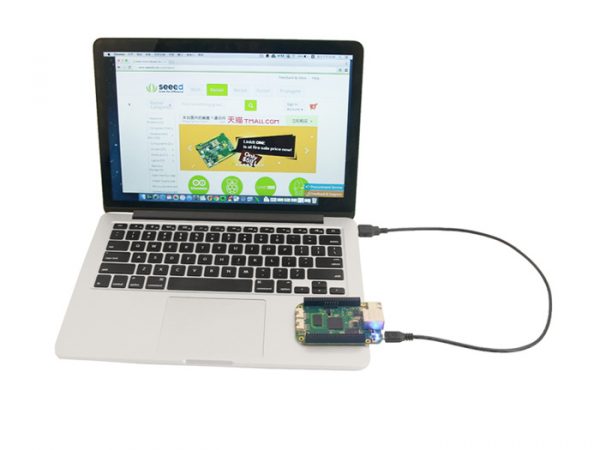

Board can be powered by Micro USB
Both CE and FCC certified.

BeagleBone Boards Comparison Table

	BeagleBone® Black	Seeed Studio BeagleBone® Green	Seeed Studio BeagleBone® Green Wireless	Seeed Studio BeagleBone® Green Gateway
Processor	AM3358 1GHz ARM® Cortex-A8	AM3358 1GHz ARM® Cortex-A8	AM3358 1GHz ARM® Cortex-A8	AM3358 1GHz ARM Cortex-A8
Co-processor	2x PRU 32-bit microcontrollers	2x PRU 32-bit microcontrollers	2x PRU 32-bit microcontrollers	2x PRU 32-bit microcontrollers
RAM	512MB DDR3 RAM	512MB DDR3 RAM	512MB DDR3 RAM	512MB DDR3 RAM
EEPROM	4GB 8-bit eMMC onboard flash storage	4GB 8-bit eMMC onboard flash storage	4GB 8-bit eMMC onboard flash storage	4GB 8-bit eMMC onboard flash storage
Graphics Accelerator	3D graphics accelerator	3D graphics accelerator	3D graphics accelerator	3D graphics accelerator
CPU Supports	NEON floating-point accelerator	NEON floating-point accelerator	NEON floating-point accelerator	NEON floating-point
Power	USB client for power & communications	USB client for power & communications	USB client for power & communications	USB client for power & communications
USB	1x USB host	1x USB host	4x USB2.0 host	2 x USB2.0 Host
Network	Ethernet	Ethernet	Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE	Ethernet 10/100M Bit and Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE
GPIO	2×46 pin headers	2x 46 pin headers	2x 46 pin headers	2x 46 pin headers
HDMI Port	HDMI port	2x Grove connectors	2x Grove connectors	2 x Grove Connectors
