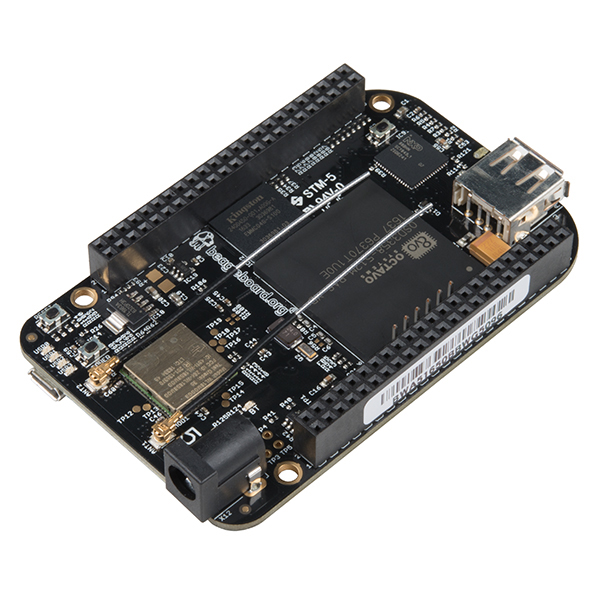

14162-02
14162-01

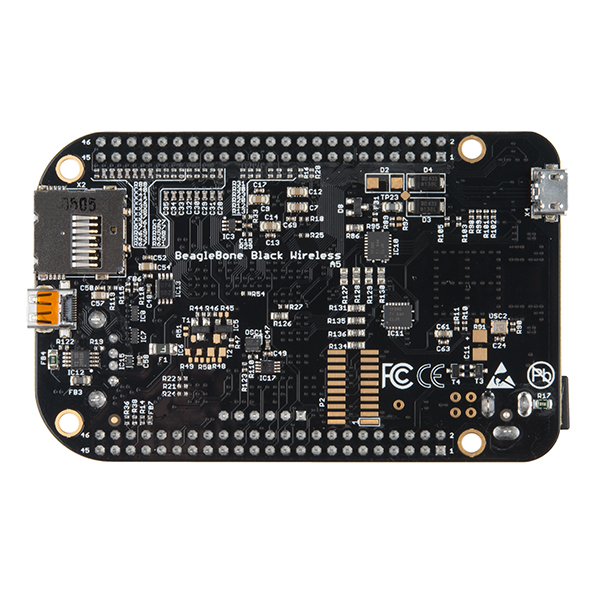

14162-04

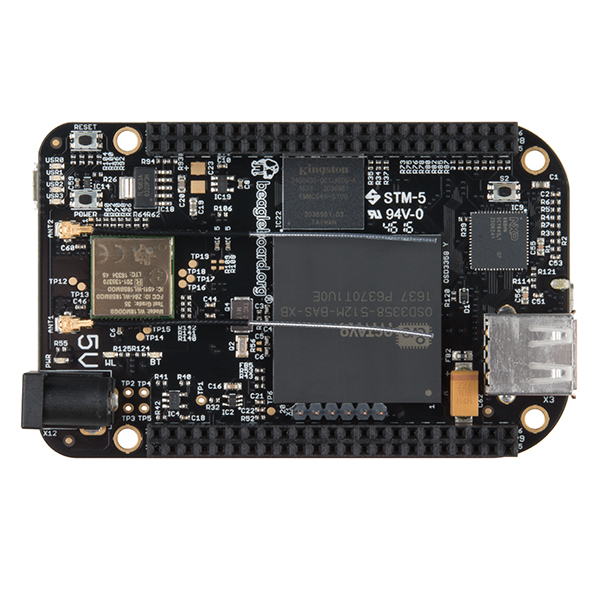

14162-05
14162-02
14162-01
14162-04
14162-05

BeagleBone Black Wireless 德儀狗骨頭 Black Wireless 開發板 SparkFun原廠

貨號： DEV-14162 分類： 標籤： , , , , , ,
  • 商品說明

商品說明

BeagleBone Black Wireless 德儀狗骨頭 Black Wireless 無線開發板

BeagleBone Black Wireless是一個低成本，信用卡大小的開發平台，得到了快速增長的社區的良好支持。BeagleBone Black計算機採用板載802.11 b / g / n 2.4GHz WiFi和藍牙替換10/100以太網端口，現在內置無線網絡功能。BeagleBone Black Wireless是最容易使用和修改其大小的IoT Linux計算機。最終，BeagleBone Black Wireless仍然是物理計算和小型嵌入式應用的理想選擇。

憑藉Octavo Systems OSD3358 1GHz ARM Cortex-A8處理器提供的大量I / O和處理能力進行實時分析，BeagleBone Black Wireless可以補充開發插件板，增強了Black的功能。他們被稱為披肩，因為Underdog是一隻小獵犬，他戴著斗篷。有道理，對嗎？

BeagleBone Black Wireless每秒超過300萬次Dhrystone操作和矢量浮點算術運算，不僅可以連接所有機器人電機驅動器，位置或壓力傳感器和2D或3D攝像頭，還可以運行OpenCV，OpenNI和其他圖像採集和分析軟件，以識別機器人周圍的物體和控制它的姿勢。

與BeagleBone Black一樣，無線版本保留了HDMI輸出，串行調試端口，PC USB接口，USB 2.0主機以及重置和電源按鈕。此版本增加了兩個用於WiFi和藍牙的狀態LED。另外還保留了預裝Debian Linux的4GB板載eMMC內存，允許BeagleBone Black Wireless在大約10秒內啟動，並且只需一根USB線就可以在不到5分鐘的時間內通過Web瀏覽器進行開發。

BeagleBone黑色無線



特徵

  • 八開系統OSD3358 1GHz的ARM ® Cortex-A8處理器
  • 512MB DDR3內存
  • 4GB 8位eMMC板載閃存
  • 3D圖形加速器
  • NEON浮點加速器
  • 2x PRU 32位微控制器
  • 連接：
    • 用於電源和通信的USB客戶端
    • USB主機
    • 802.11b / g / n和藍牙4.1加BLE
    • HDMI
    • 2個46針頭
  • 軟件兼容性：
    • Debian與帶有BoneScript庫的Node.js上的Cloud9 IDE
    • Android和Ubuntu的第三方支持
    • 和更多…



出貨清單

  • BeagleBone黑色無線 x1
  • 3英尺USB-A到Mini-B USB連接線 x1



Documents



原廠介紹 https://beagleboard.org/black-wireless

＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



BeagleBone Black Wireless is a low-cost, credit-card-sized development platform with good support from a fast-growing community. Replacing the 10/100 Ethernet port with onboard 802.11 b/g/n 2.4GHz WiFi and Bluetooth, the BeagleBone Black computer now comes with built-in wireless networking capability. BeagleBone Black Wireless is the easiest to use and modify IoT Linux computer of its size. Ultimately, the BeagleBone Black Wireless is still perfect for physical computing and smaller embedded applications.

With plenty of I/O and processing power for real-time analysis provided by the Octavo Systems OSD3358 1GHz ARM Cortex-A8 processor, It can be complemented with cape plug-in boards, which augment Black’s functionality. They’re called capes because Underdog is a beagle, and he wears a cape. Makes sense, right?

At more than 3 million Dhrystone operations per second and vector floating point arithmetic operations, the BeagleBone Black Wireless is capable of not just interfacing to all of your robotics motor drivers, location or pressure sensors and 2D or 3D cameras, but also running OpenCV, OpenNI and other image collection and analysis software to recognize the objects around your robot and the gestures you might make to control it.

BeagleBone Black Wireless 德儀狗骨頭

Like BeagleBone Black, the wireless version retains HDMI output, serial debug port, PC USB interface, USB 2.0 host, and reset and power buttons. This version adds two more status LEDs for WiFi and Bluetooth. Also retained is the 4GB of onboard eMMC memory with Debian Linux pre-installed, allowing BeagleBone Black Wireless to boot in around 10 seconds, and have you developing through your web browser in less than 5 minutes using just a single USB cable.



Features

  • Octavo Systems OSD3358 1GHz ARM® Cortex-A8 Processor
  • 512MB DDR3 RAM
  • 4GB 8-bit eMMC onboard flash storage
  • 3D graphics accelerator
  • NEON floating-point accelerator
  • 2x PRU 32-bit microcontrollers
  • Connectivity:
    • USB client for power and communications
    • USB host
    • 802.11b/g/n and Bluetooth 4.1 plus BLE
    • HDMI
    • 2x 46 pin headers
  • Software Compatibility:
    • Debian with Cloud9 IDE on Node.js with BoneScript library
    • Third-party support for Android and Ubuntu
    • and More…

Includes

  • 1x BeagleBone Black Wireless
  • 1x 3ft USB-A to Mini-B USB Cable
