Arduino Make Your UNO Kit 自創音樂播放套件組 原廠公司貨 義大利製

商品說明

通過手動組裝 Arduino UNO 來學習電子學基礎知識，通過安裝每個組件來熟悉焊接，然後使用唯一成為合成器的套件釋放您的創造力！

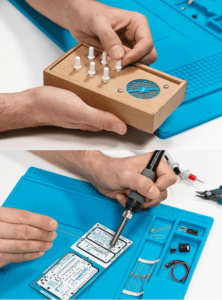

Arduino Make Your UNO KIT 套件確實是學習焊接的最佳方式。 當你完成後，可從外盒包裝建構一個合成器並製作出屬於你自己的音樂。套件包含建構您自己的 Arduino UNO 和音頻合成器擴展板的所有組件的零件。按照在線分步指示，您將學習如何焊接您自己的 Arduino UNO 和音頻合成器擴展板。 最後您將建構出自己的數字樂器，準備好創造酷炫的聲音。

技術規格

• Arduino Make Your UNO
• 1 x Make Your UNO PCB
• 1 x USB C Serial adapter Board
• 7 x Resistors 1K Ohm
• 2 x Resistors 10K Ohm
• 2 x Resistors 1M Ohm
• 1 x Diode (1N4007)
• 1 x 16MHz Crystal
• 4 x Yellow LEDs
• 1 x Green LED
• 1 x Push-Button
• 1 x MOSFET
• 1 x LDO (3.3V)
• 1 x LDO (5V)
• 3 x Ceramic capacitors (22pF)
• 3 x Electrolytic capacitors (47uF)
• 7 x Polyester capacitors (100nF)
• 1 x Socket for ATMega 328p
• 2 x I/O Connectors
• 1 x Connector header 6 pins
• 1 x Barrel jack connector
• 1 x ATmega 328p Microcontroller
• Arduino Audio Synth
• 1 x Audio Synth PCB
• 1 x Resistor 100k Ohm
• 1 x Resistor 10 Ohm
• 1 x Audio amplifier (LM386)
• 1 x Ceramic capacitors (47nF)
• 1 x Electrolytic capacitors (47uF)
• 1 x Electrolytic capacitors (220uF)
• 1 x Polyester capacitor (100nF)
• 4 x connectors pin header
• 6 x potentiometer 10K Ohm with plastic knobs
• Spare parts
• 2 x Electrolytic capacitors (47uF)
• 2 x Polyester capacitor (100nF)
• 2 x Ceramic capacitors (22pF)
• 1 x Push-Button
• 1 x Yellow LEDs
• 1 x Green LED
• Mechanical parts
• 5 x Spacers 12mm
• 11 x Spacers 6mm
• 5 x screw nuts
• 2 x screws 12mm

教學指導

• 官方組裝教學網站 (Make Your UNO)
• 產品數據手冊 (Datasheet)
• 電路圖 (Schematics)

技術補充（英文）

以下為原廠英文技術說明，提供進階使用者參考。

Learn the basics of electronics by assembling manually your Arduino UNO, become familiar with soldering by mounting every single component, and then unleash your creativity with the only kit that becomes a synth!

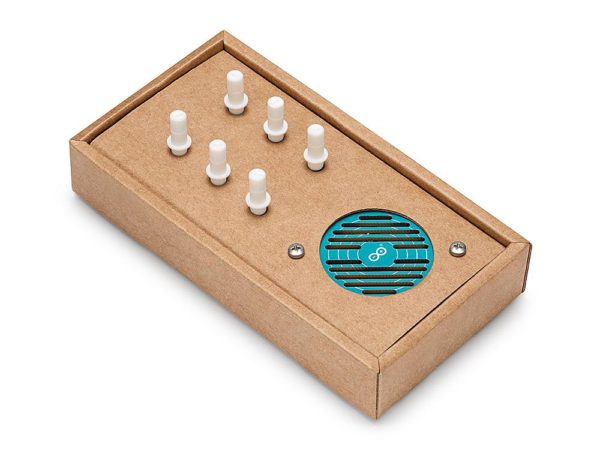

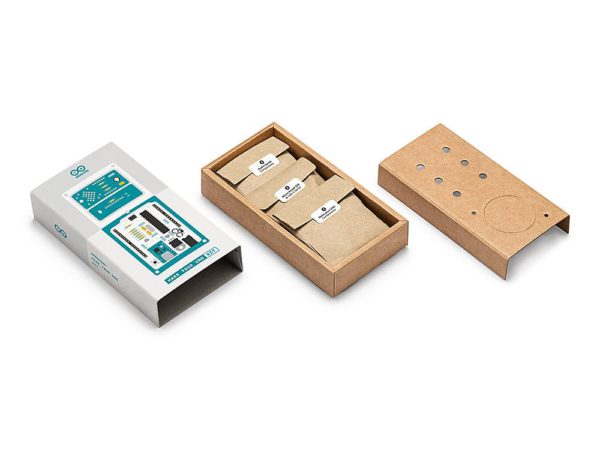

The Arduino Make Your UNO kit is really the best way to learn how to solder. And when you are done, the packaging allows you to build a synth and make your music.

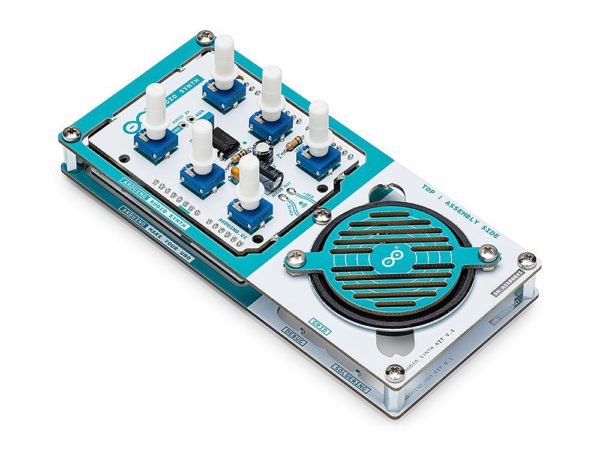

A kit with all the components to build your very own Arduino UNO and audio synthesizer shield.

The Make Your UNO Kit comes with a complete set of instructions in a dedicated content platform. This includes video material, a 3D interactive viewer for following detailed instructions, and how to program your board once it is finished.
