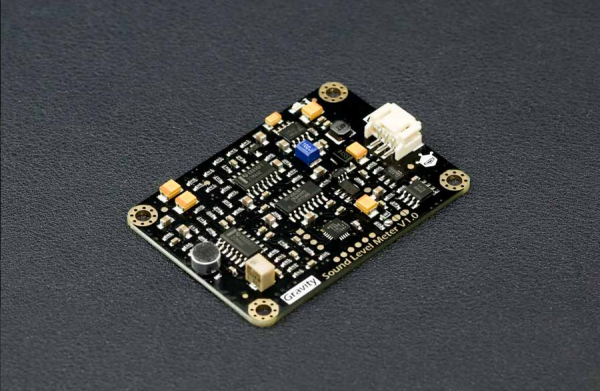

Gravity: Analog Sound Level Meter 模擬聲級計 分貝計 噪音感測器 DFRobot原廠
NT$1,905 NT$1,240 未稅
聲級計(也稱為分貝計,噪音計)是一種基本的噪聲測量儀器。我們推出了一款與Arduino兼容的聲級計,即插即用。它可以準確地測量周圍環境的聲級。
尚有庫存
- 商品說明
商品說明
Analog Sound Level Meter 模擬聲級計 分貝計 噪音感測器
聲級計(也稱為 分貝計,噪音計)是一種基本的 噪聲測量儀器。我們推出了一款與 Arduino 兼容的聲級計,即插即用。它可以準確地測量周圍環境的聲級。本產品採用儀表電路,低噪音麥克風,使其非常珍貴。它支持3.3~5.0V寬輸入電壓,0.6~2.6V電壓輸出。分貝值與輸出電壓成線性關係,無需複雜算法即可實現簡單的轉換。該連接器即插即用,無需焊接,因此該產品可輕鬆應用於您的應用中。
聲級計廣泛應用於環境噪聲檢測,如公路噪聲監測站,室內噪聲監測等。現在是時候DIY自己的聲級檢測器來保護您的聽力。
![]() |
|

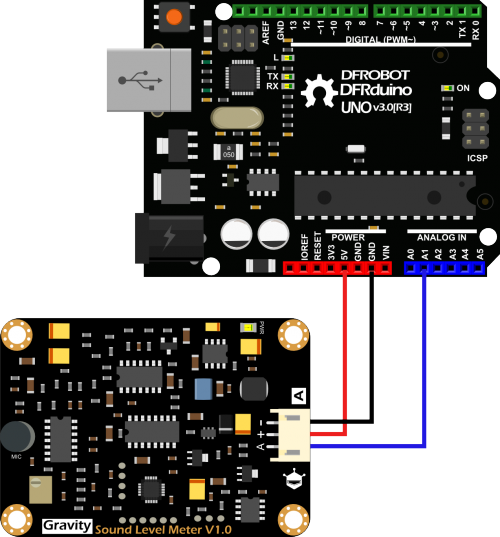

接線圖
特徵
- 高精度:使用儀表電路,低噪音麥克風
- 寬電壓輸入:3.3~5.0V
- 簡單轉換:線性模擬輸出,0.6~2.6V線性對應30~130dBA,無需複雜算法
- 易於使用:即插即用,無需焊接
規格
-
- 測量範圍:30dBA~130dBA
- 測量誤差:±1.5dB
- 頻率加權:加權
- 頻率響應:31.5Hz~8.5KHz
- 時間特徵:125ms
- 輸入電壓:3.3~5.0V
- 輸入電流:22mA @ 3.3V,14mA @ 5.0V
- 輸出電壓:0.6~2.6V

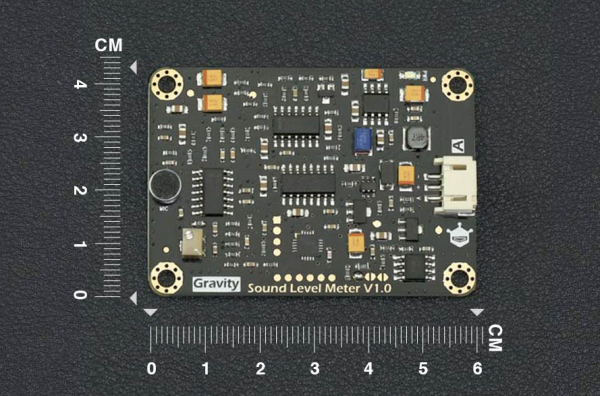

- 模塊尺寸:60mm * 43mm / 2.37in * 1.68in

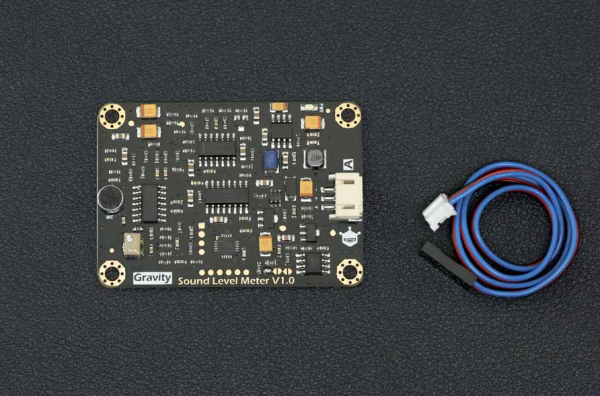

出貨清單
- 模擬聲級計x1
- 重力模擬電纜x1
Documents
更多相關產品請查看
=========================================================
Gravity: Analog Sound Level Meter
This is an Arduino compatible sound level meter(also known as decibel meter, noise meter). It uses instrument circuit and low noise microphone, which enable it to accurately measure the sound level of the surrounding environment. It can be applied to environmental noise testing, such as highway noise monitoring station, bedroom noise monitoring, etc.
Nowadays, there are many kinds of sounds surrounding, some of which are really noisy. It is really essential to measure whether the sound is noisy enough to do damage to our health.
Sound level meter (also known as the decibel meter, noise meter) is a basic noise measurement instrument. We have launched a sound level meter, which is compatible with Arduino, plug-and-play. It can accurately measure the sound level of the surrounding environment. This product uses instrument circuit, low noise microphone, which make it highly precise. It supports 3.3~5.0V wide input voltage, 0.6~2.6V voltage output. The decibel value is linear with the output voltage, which leads to a simple conversion, without complex algorithm. The connector is plug-and-play, without welding, so this product can be easily used in your application.
Sound level meter is widely used in environmental noise detection, such as highway noise monitoring station, room noise monitoring and so on. It’s time for you to DIY a sound level detector to protect your hearing.
Attention
Do not place this module on the surface of the conductor or the semiconductor, otherwise it will short the microphone’s pins. It is recommended to place this module on a dry insulator’s surface or fix with nylon columns to hang in the air.
FEATURES
- High Precision: use instrument circuit, low noise microphone
- Wide Voltage Input:3.3~5.0V
- Simple Conversion: linear analog output, 0.6~2.6V linear correspondence 30~130dBA, no complex algorithm is required
- Easy to Use: plug and play, without soldering
SPECIFICATION
- Measuring Range: 30dBA ~ 130dBA
- Measurement Error: ±1.5dB
- Frequency Weighted: A Weighted
- Frequency Response: 31.5Hz ~ 8.5KHz
- Time Characteristics: 125ms
- Input Voltage: 3.3 ~ 5.0V
- Input Current: 22mA@3.3V, 14mA@5.0V
- Output Voltage: 0.6 ~ 2.6V
- Module Size: 60mm * 43mm / 2.37in*1.68in
DOCUMENTS
SHIPPING LIST
- Analog Sound Level Meter x1
- Gravity Analog Cable 3Pin x1
