5路火焰感測器模組 超廣角度感測 模擬數字雙重訊號輸

商品說明

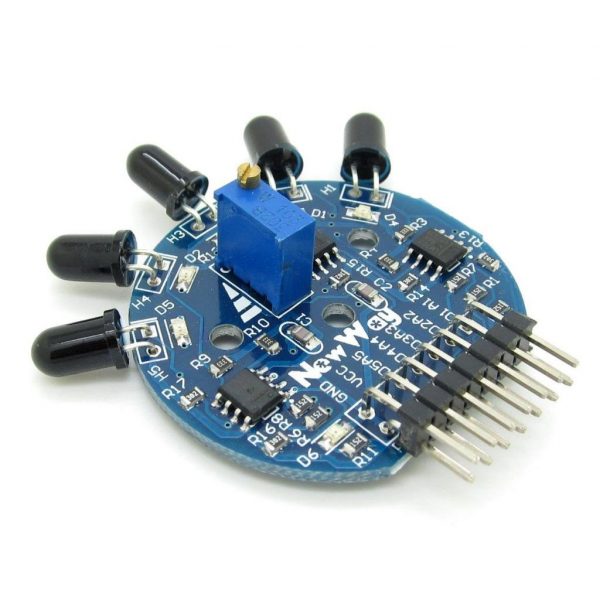

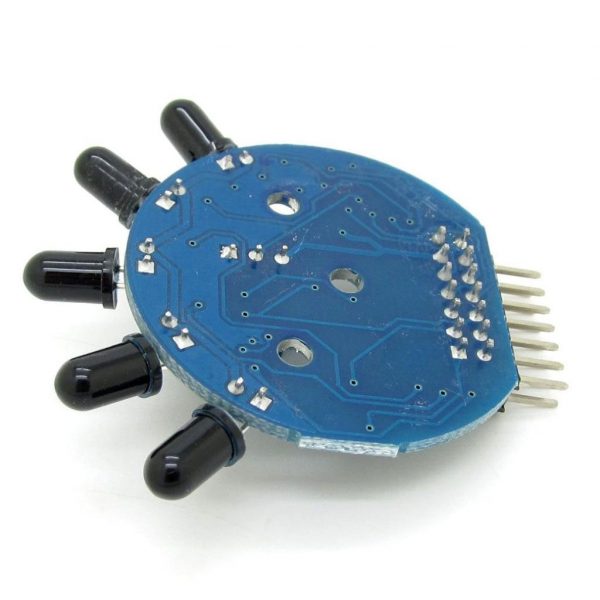

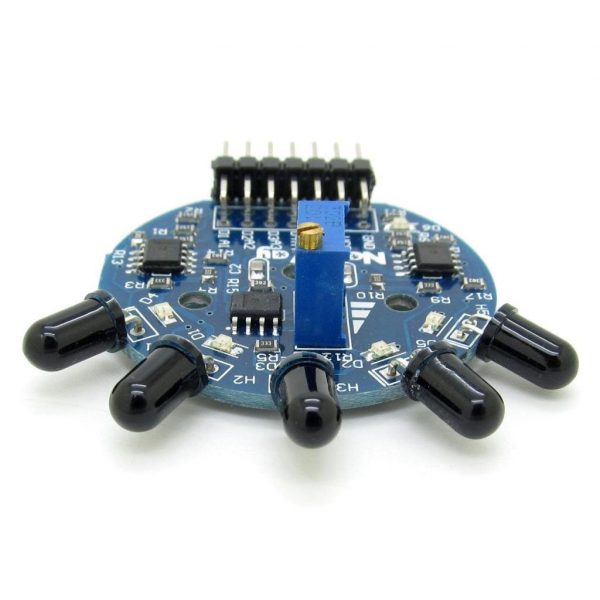

5路 火焰感測器 模組 超廣角度感測 模擬 & 數字雙重訊號輸出

5路 火焰感測器 模組 能夠探測火焰發出的波段範圍分別為700—1100 nm的短波近紅外線(SW-NIR)，通過電信號（電壓信號）進行輸出。

1. 1. 採用五路火焰感測模組設計，探測範圍廣（普通的單個火焰傳感器的探測範圍大概在30°左右，隨著距離的增加，範圍逐漸減小，本產品探測範圍大於120°）
   2. 能夠輸出數字信號（高低電平），易於使用
   3. 能夠輸出模擬信號（電壓信號），可以更加精確的測量信號，適合高精度的場合
   4. 五路輸出全部具有狀態指示燈，使得不論在調試或是在實際運用中都帶來極大的方便
   5. 數字輸出探測距離可調，模擬輸出靈敏度可調，設計更加靈活
   6. 採用 1%電阻設計（市面上的火焰傳感器都是用的5%電阻設計的），信號輸出更加精確，適合需求高精度測量的場合
   7. 板載 3個M3安裝孔，方便安裝
   8. 3.3V-9V供電，可兼容大部分單片機系統

1. 貼片器件全部採用 SMT工藝全自動焊接，軍工品質值得信賴

5路 火焰感測器 模組 超廣角度感測

SMT Automatic Welding Digital Analog Output 5 Channels Flame Fire Sensor Module

Detection wavelength: 700 ~ 1100nm
Supply voltage: 3.3V ~ 9V
Five channel flame sensor design, wide range of detection (the detection range of the ordinary single flame sensor is probably about
30°, as the distance increases, the range is gradually reduced, the detection range of the product is greater than 120°)
Able to output a digital signal (high and low), easy to use
Able to output an analog signal (voltage signal), the measurement signal can be more accurately, the occasions for high precision
All five outputs status indicator, so whether debug or bring great convenience in the practical application of
Digital output detection distance adjustable.The analog output sensitivity adjustable, more flexible design
Using 1% resistor design, signal output is more accurate, suitable for the needs of high-precision measurement occasions
Onboard 3 M3 mounting holes for easy installation
3.3V-9V power supply, and is compatible with most of the SCM system
The patch devices used in all SMT process automatic welding, military quality reliable
Package included: 1pcs 5 Channels Flame Sensor Module
