ANT700 多工 伸縮天線 SMA – 300 MHz至1.1 GHz

商品說明

ANT700 多工 伸縮天線 SMA – 300 MHz至1.1 GHz

ANT700 是一款多工伸縮式天線，設計工作頻率範圍為300 MHz至1.1 GHz，總長度可配置為9.5 cm至24.5 cm。

ANT700 均由不銹鋼製成，具有SMA(公)連接頭、旋轉軸和可調節彎頭。

ANT700 是一款50歐姆天線，專為HackRF One設計，是HackRF One的首選天線，當然也可使用在其他適合的硬體項目！

原廠資料：https://greatscottgadgets.com/ant700/





＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝



Telescopic Antenna SMA – 300 MHz to 1.1 GHz (ANT700)

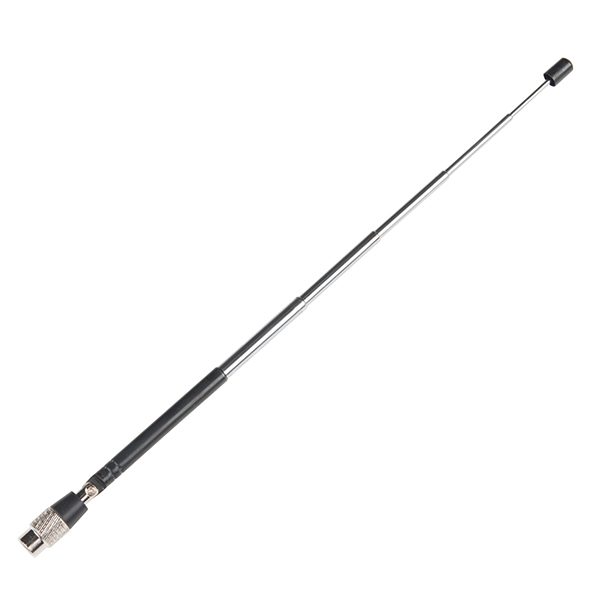

This ANT700 is a telescopic antenna designed for operation from 300 MHz to 1.1 GHz with a total length that is configurable from 9.5 cm to 24.5 cm. Each ANT700 is constructed of stainless steel and features an SMA male connector, rotating shaft, and adjustable elbow.

The ANT700 is a 50 Ohm antenna designed to match HackRF One. It is the perfect first antenna for general purpose use with HackRF One, but we won’t stop you from using it with different projects!



Documents

• Product Page
