Weather Shield 天氣感測擴展板 Sparkfun美國製

商品說明

SparkFun Weather Shield是一款易於使用的 Arduino 擴展板，可讓您獲得氣壓，相對濕度，亮度和溫度。該擴展板上還有可外加選購的感測器擴展端口，如風速，方向，雨量計和GPS，用於定位和超精准定時。Weather Shield 採用Si7021 濕度/溫度感測器，MPL3115A2氣壓感測器和ALS-PT19光感測器。



特徵

• 濕度/溫度傳感器— Si7021
• 氣壓— MPL3115A2
• 光傳感器— ALS-PT19

Documents

• Schematic
• Eagle Files
• Hookup Guide
• Weather Station Tutorial
• Datasheets
  • Si7021
  • MPL3115A2
  • ALS-PT19
• Wish List
• GitHub



＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝

SparkFun Weather Shield

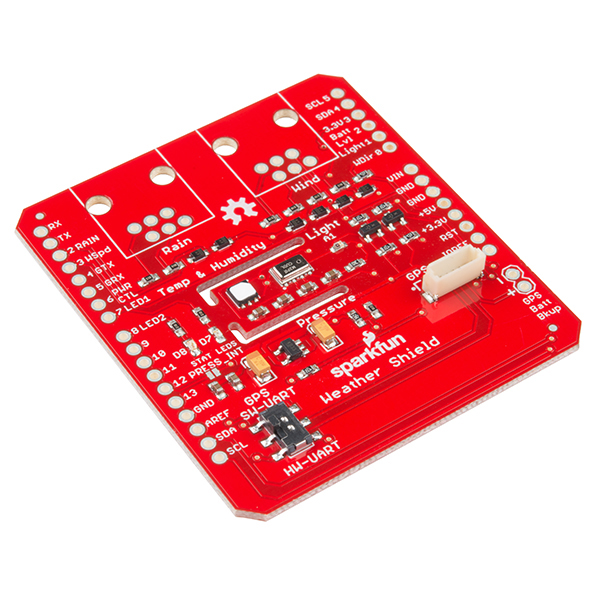

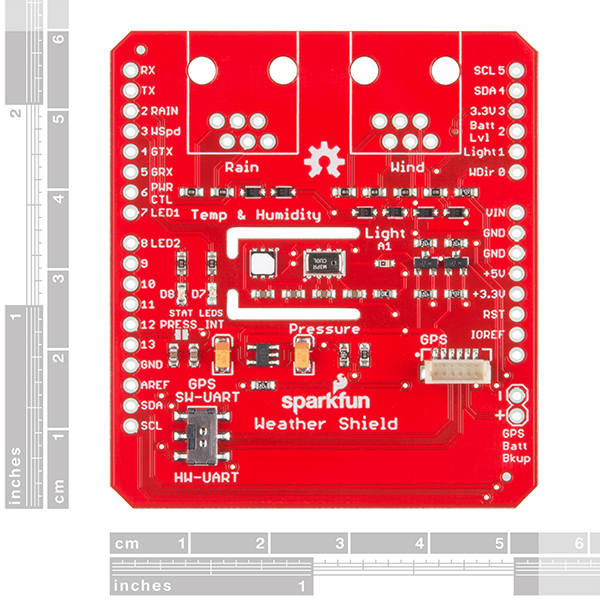

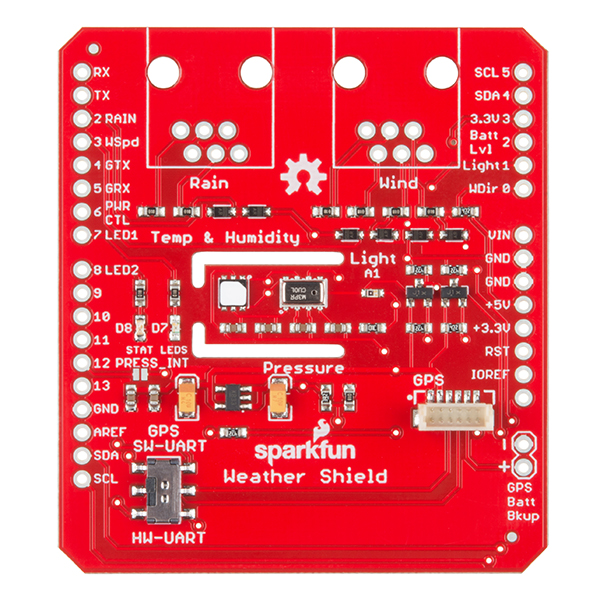

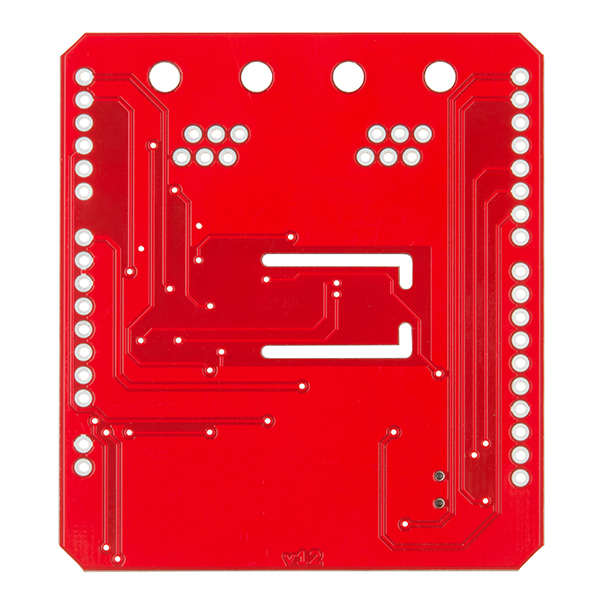

The SparkFun Weather Shield is an easy-to-use Arduino shield that grants you access to barometric pressure, relative humidity, luminosity and temperature. There are also connections on this shield to optional sensors such as wind speed, direction, rain gauge and GPS for location and super accurate timing.

The Weather Shield utilizes the Si7021 humidity/temperature sensor, the MPL3115A2 barometric pressure sensor and the ALS-PT19 light sensor. The shield relies on the Si7021 and MPL3115A2 Arduino libraries.

Each shield comes with two unpopulated RJ11 connector spaces (for optional hookup of rain and wind sensors) and a 6-pin GPS connector (for optional hookup of a GP635T GPS module). Finally, each Weather Shield can operate from 3.3V up to 16V and has built-in voltage regulators and signal translators.

Note: The Weather Shield comes as a stand-alone board. Headers, connectors and additional sensors will need to be purchased separately; check the Wish List below or the Recommended Products on this page.

Note: This shield was designed for the SparkFun RedBoard and Arduino Uno and will not work with other boards (like the Arduino Yun, for example) without modification.

Features

• Humidity/Temperature Sensor — Si7021
• Barometric Pressure — MPL3115A2

Light Sensor — ALS-PT19

Documents

• Schematic
• Eagle Files
• Hookup Guide
• Weather Station Tutorial
• Datasheets
  • Si7021
  • MPL3115A2
  • ALS-PT19
• Wish List
• GitHub
