樹莓派官方 正式報關進口 7吋觸控顯示器 Raspberry Pi 樹莓派官方出品 市場上唯一支持10點觸控

-5%

樹莓派官方 正式報關進口 7吋觸控顯示器 Raspberry Pi 樹莓派官方出品 市場上唯一支持10點觸控

NT$3,000 NT$2,838 未稅

加購選項: 2016 原廠推出了配套的原廠外殼 一機整合您的樹莓派與觸控螢幕

樹莓派基金會官方版本,正式報關進口 7吋觸控顯示器 Raspberry Pi 樹莓派官方出品 市場上唯一支持10點觸控

本商品是原廠樹莓派基金會出品的觸控螢幕套件,市場上唯一支持10點觸控,非中國 waveshare 微雪出的觸控螢幕

  • 7吋觸控螢幕
  • 螢幕體積大小:194mm x 110mm x 20mm
  • 螢幕解析度:800 x 480 / 60fps (24-bit全彩)
  • FT5406 10指觸控,電容式。
  • 整體重量:277g
  • 功耗:2.23 Watt

尚有庫存

    • NT$
  • 商品說明
  • 技術文件
  • 評論 (0)
  • 交流討論

商品說明

加購選項: 2016 原廠推出了配套的原廠外殼 一機整合您的樹莓派與觸控螢幕  點擊本處查看

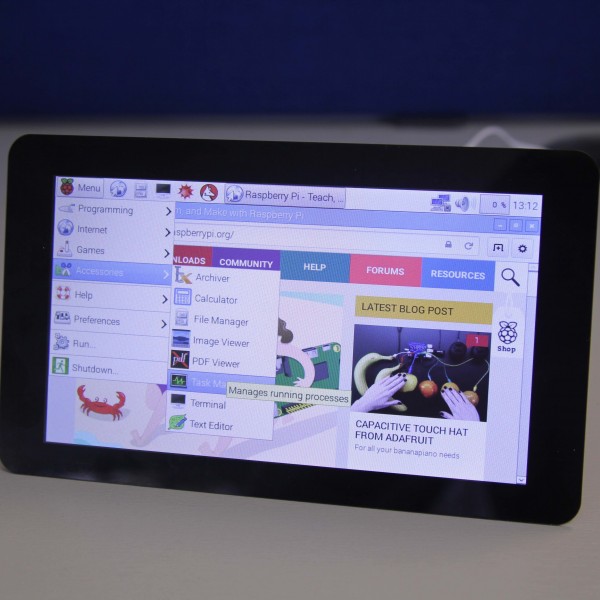

Raspberry Pi LCD Touch Screen — 7 inch

The Raspberry Pi has it’s very own official LCD Touch Screen. A few years in the making, the Raspberry Pi Foundation wanted you to have the perfect display screen for your Pi without compromise.

Features & Benefits of the Pi LCD Touch Screen
• Multi-touch capacitive touch screen — supports up to 10 finger touches
• 7 inch display
• 800 x 480 pixel resolution at 60 frames per second (fps)
• 24-bit RGB colour
• 70° viewing angle
• Only two connections required
• Flexible power supply
• No electronic interference
• Full Raspbian OS functionality without a keyboard and mouse
• Kivy touch screen development software available —http://kivy.org/docs/installation/installation-rpi.html

LCD Touch Screen Contents

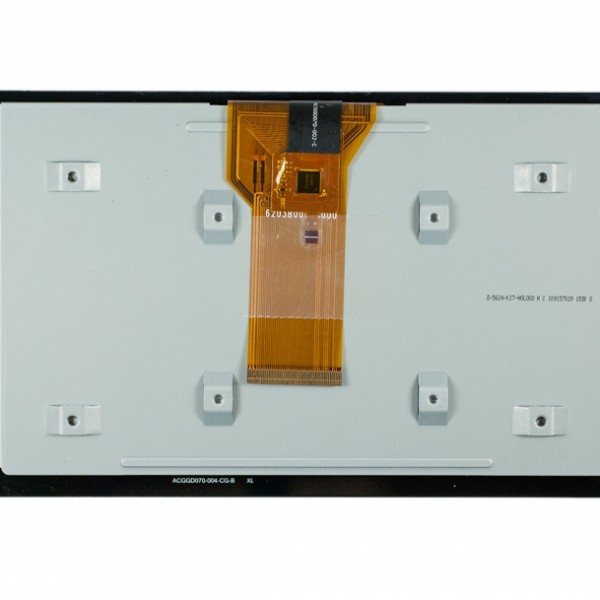

• LCD touch screen

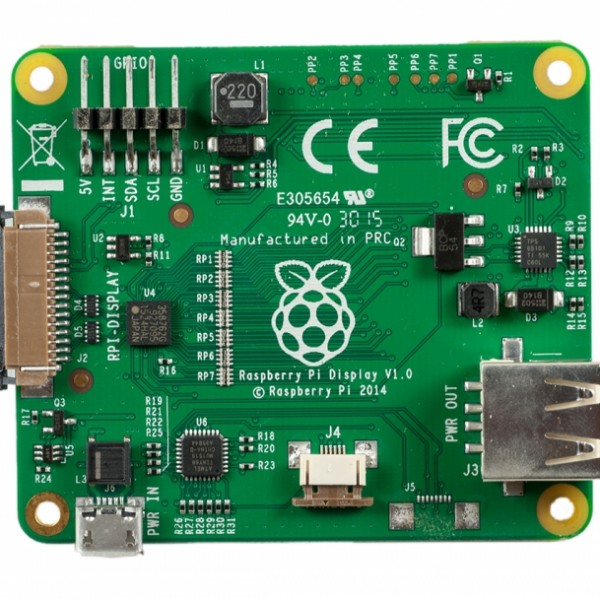

• Adapter board
• DSI ribbon cable
• 4 jumper wires
• Mounting hardware

Setting up your LCD Touch Screen

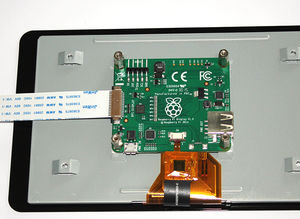

Set up is quick and easy. The adapter board and your Pi are mounted to the rear of the LCD using the basic fixings supplied. The DSI ribbon cable provides the display interface between the Pi and the LCD assembly.

Power Supply Options for your LCD Touch Screen
• Separate supply — Power the display board separately to the Pi using a uUSB power supply of least 500 mA
• Raspberry Pi 2A power supply — Connect a Pi power supply (8226373) to the display board. The board can then power the Pi via USB connection
• GPIO jumpers — Power the display board from the Pi using the supplied jumper wires

https://www.raspberrypi.org/blog/the-eagerly-awaited-raspberry-pi-display/
