原廠輝盛 MG996R 55G 180度 金屬齒輪伺服器 舵機

-9%

原廠輝盛 MG996R 55G 180度 金屬齒輪伺服器 舵機

NT$305 NT$276 未稅

原廠輝盛 MG996R  180度 金屬齒輪伺服器 舵機 ,數位式 11 KG大扭力舵機/伺服馬達

脈寬信號 500-1500-2500,對應的角度是-90度~+90度

TOWER PRO(輝盛)最新大扭力舵機MG996R (MG995升級產品)6v/11Kg , 輝盛新品,原MG995的升級產品,速度,拉力和精確度都有相應提高,是目前市場上較具性價比大扭力舵機之一

尚有庫存

  • 商品說明
  • 評論 (0)
  • 交流討論

商品說明

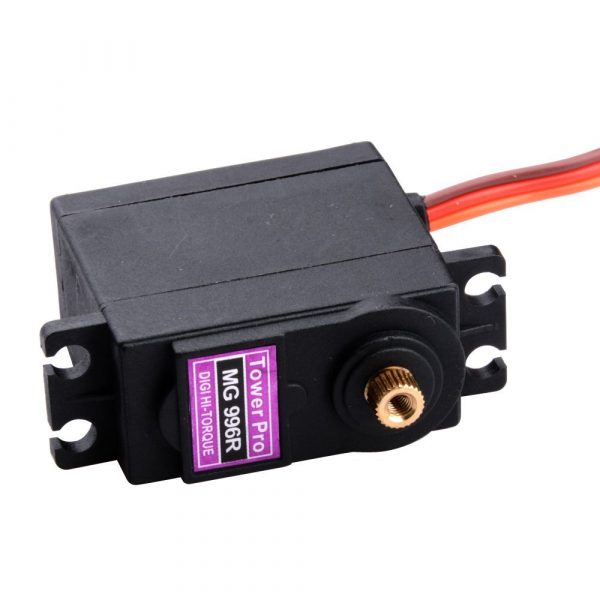

原廠輝盛 MG996R  180度 金屬齒輪伺服器 舵機
MG996R  11KG大扭力舵機/伺服馬達

脈寬信號 500-1500-2500,對應的角度是-90度~+90度

產品名稱:TOWER PRO(輝盛)最新大扭力舵機MG996R (MG995升級產品)6v/11Kg
廠家編號:MG996R
產品淨重: 55g
產品尺寸: 40.7*19.7*42.9mm
產品拉力: 9.4kg/cm(4.8V ), 11kg/cm(6V)
反應速度: 0.17sec/60degree(4.8v) 0.14sec/60degree(6v)
工作電壓: 4.8-7.2V
工作溫度: 0℃-55℃
齒輪形式: 金屬齒輪
工作死區: 5us (微秒)

小馬達尺寸標示圖B

接線說明

MG996R is an upgraded version of MG995 servo.
The new PCB and IC control system which makes it far more accurate.
Its internal gearing and motor are also upgraded to improve dead bandwidth and centering.
It is a great choice for 1/10 buggy and airplane helicopter, RC-cars from 10 to 6-th scale truggy and monster and many RC model.

We are the original manufacturer of TowerPro MG995 servo.
There are many counterfeit servos of TowerPro from China dealers selling on eBay, Amazon and Alibaba websites.
If the suppliers removed “TowerPro” logo from the photos and the products description, they are selling counterfeits low quality servo.
Please identify the supplier before you purchased the goods. Only our authorized dealers who provide reliable quality servos and after services.

Specification:

Weight: 55g
Dimension: 40.7×19.7×42.9mm
Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
Operating voltage: 4.8~ 6.6v
Gear Type: Metal gear
Temperature range: 0- 55deg
Servo Plug: JR (Fits JR and Futaba)
Dead band width: 1us

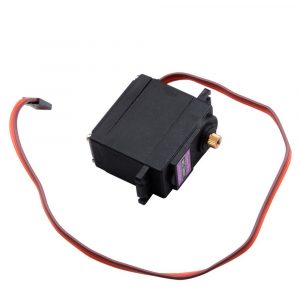

servo wire length: 32cm

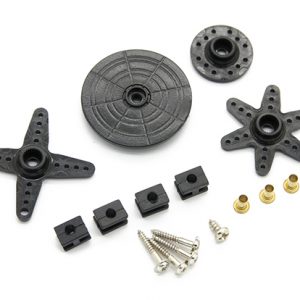

servo arms &screws included and fit with Futaba servo arm
It’s universal “S” type connector that fits most receivers, including Futaba, JR, Hitec ,GWS, Cirrus, Blue Bird, Blue Arrow, Corona, Berg, Spektrum.
CE &RoHS approved
We have upgraded our servo gear set and shaft to aluminum 6061-T6.
It is stronger and lighter than copper.
