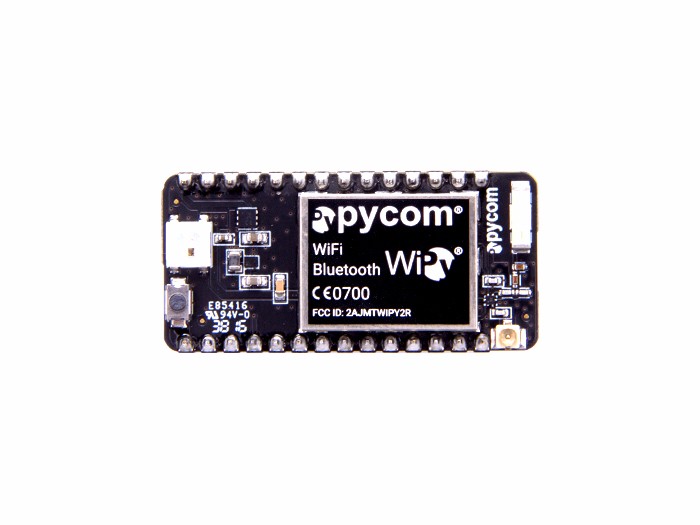

WiPy 2.0 藍芽 / Wi-Fi 開發板 產品介紹
WiPy 2.0是MicroPython啟用WiFi和藍牙開發板，專門設計用於物聯網應用。其核心在於Espressif ESP32片上系統(SoC)，具有雙核微控制器、WiFi、藍牙和512 KB RAM。所有這些集成在一個板中，測量尺寸僅為42 x 20 x 3.5 mm！
易於使WiPy脫穎而出。您在PC或Mac上使用Python的知識將直接傳輸用於使用MicroPython和WiPy，因此，學習曲線最小。Pycom開發了直觀的API，有助於充分利用板。
- 集成式SoC，帶強大的CPU，藍牙（經典和BLE）和WiFi
- 遠達1 km WiFi範圍
- 與使用管座的標準試驗電路板兼容(RS 102-9147 )。Pycom提供具有微型USB連接器、按鈕、LED和電池連接器的擴展板(RS 125-953 )。
- 超低電源使用量
- 網絡處理器可處理WiFi連接性和IPv6堆棧，從而可使主處理器自由運行用戶應用程序。
- ULP協處理器監控GPIO、ADC通道並控制大多數內部外圍設備（在深度睡眠模式下），且僅消耗25 uA
特點
- 尺寸：42 x 20 x 3.5 mm（不包括管座）
- 工作溫度： -40°C至85°C
- 3V3超低噪聲開關調節器
- 電源– 3.3 V至5.5 V
- ESP32雙核微控制器和WiFi/藍牙4.2無線電
- 重置開關
- RGB心跳LED
- 32 Mbit閃存存儲器
- 射頻開關
- SMD天線和U.FL連接器
接口
- -2個UART、2個SPI、I2C、I2S、微型SD卡
- 模擬通道：8個12位ADC
- 計時器：4個16位，帶PWM和輸入捕獲
- 所有外圍設備上帶DMA
- GPIO：高達24
WiPy 2.0, The tiny Micro Python enabled WiFi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy is all about taking the Internet of Things to the next level.
Features
- Powerful CPU, BLE and state of the art WiFi radio
- 1KM Wi Range
- MicroPython enabled, the Linux of IoT for fast deployment
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro controllers
- Hardware floating point acceleration
- Python multi-threading
Specification
Processing
- Espressif ESP32 chipset
- Dual processor + WiFi radio System on Chip.
- Network processor handles the WiFi connectivity and the IPv6 stack.
- Main processor is entirely free to run the user application.
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherals during deep-sleep mode while only consuming 25uA.
Interfaces
- 2 x UART, 2 x SPI, I2C, I2S, micro SD card
- Analog channels: 8×12 bit ADCs
- Timers: 4×16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24
Security and Certifications
- SSL/TLS support
- WPA Enterprise security
- FCC – 2AJMTWIPY2R
- CE 0700
Memory
- RAM: 512KB
- External flash 4MB
- Hardware floating point acceleration
- Python multi-threading
Hash / encryption
Wifi
Bluetooth
RTC
Power
Mechanical
Part List
1 x WiPy 2.0
