RedBearLab BLE Nano Kit v2 低功耗藍牙開發板 nRF52832

-10%

RedBearLab BLE Nano Kit v2 低功耗藍牙開發板 nRF52832

NT$1,286 NT$1,152 未稅

RedBearLab BLE Nano Kit v2 低功耗藍牙開發板 nRF52832

RedBearLab 的 BLE Nano v2 是市場上最小的藍牙4.2 / 5.0 低功耗(BLE)開發板。通過此套件中包含的DAPLink USB,您可以更輕鬆地將固件部署到BLE Nano v2。在每個BLE Nano的核心是NordicnRF52832,一個ARM Cortex-M4F片上系統(SoC),加上BLE能夠以超低功耗運行在64MHz。RedBearLab BLE Nano還支持運行iOS 7/8,Android 4.3或更高版本以及Windows Phone 8.1的眾多不同的無線設備。

已售完

  • 商品說明
  • 評論 (0)

商品說明

RedBearLab BLE Nano Kit v2 低功耗藍牙開發板 nRF52832

RedBearLab 的 BLE Nano v2 是市場上最小的藍牙4.2 / 5.0 低功耗(BLE)開發板。通過此套件中包含的DAPLink USB,您可以更輕鬆地將固件部署到BLE Nano v2。在每個BLE Nano的核心是NordicnRF52832,一個ARM Cortex-M4F片上系統(SoC),加上BLE能夠以超低功耗運行在64MHz。RedBearLab BLE Nano還支持運行iOS 7/8,Android 4.3或更高版本以及Windows Phone 8.1的眾多不同的無線設備。

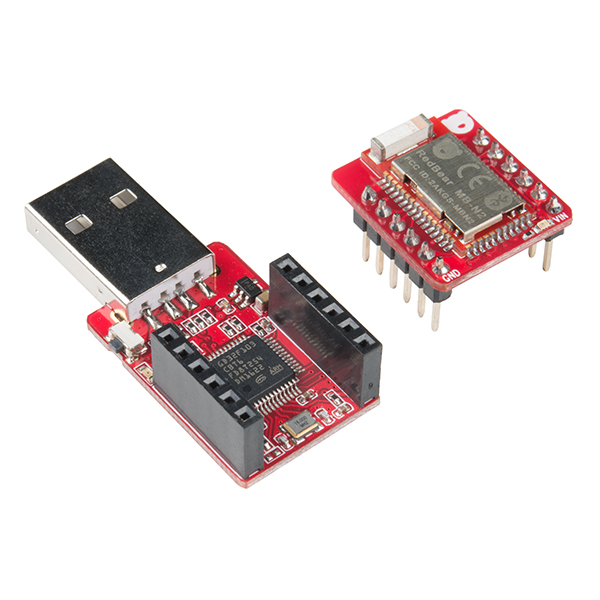

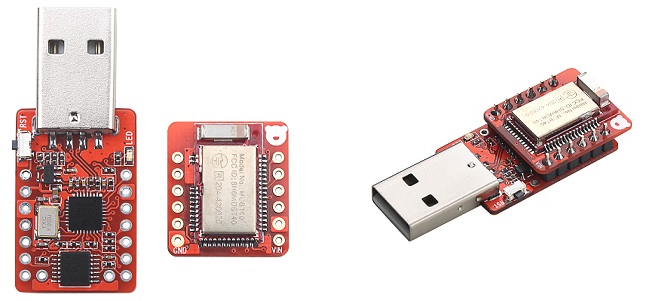

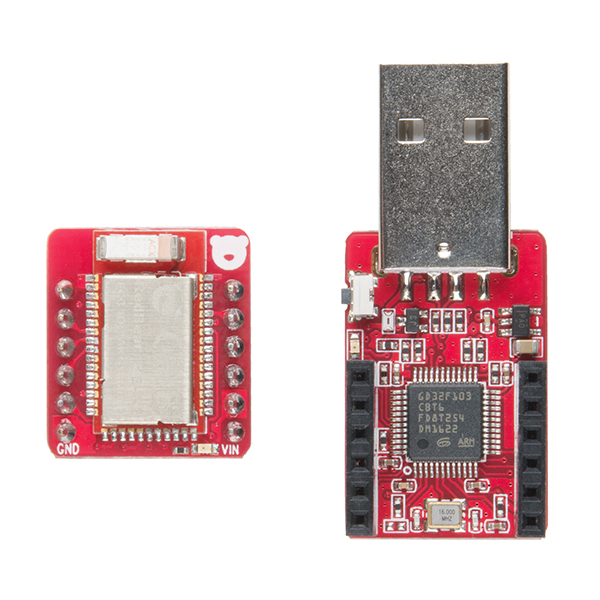

DAPLink板作為USB加密狗,從USB端口接受5V,並通過板載LDO將其調節到3.3V,可用於為RedBearLab BLE Nano v2供電。當插入計算機時,USB板將顯示為串行端口和可移動的大容量存儲磁盤。開發支持藍牙智能的“配件”(附件設備+配套應用程序)比以往任何時候都容易。您可以快速生成針對物聯網(IoT)和其他有趣項目的原型和演示。RedBearLab BLE Nano v2可以在1.8V至3.6V之間工作,使其能夠與各種電子元件配合使用。由於RedBearLab BLE Nano v2的工作電壓低至1.8V,因此DAPLink USB闆卡的設計運行速度為1.8V。所有您需要做的是讓USB板以1.8V運行是短路開關S.然後調節器將輸出1.8V,以允許您的納米使用適用的組件。

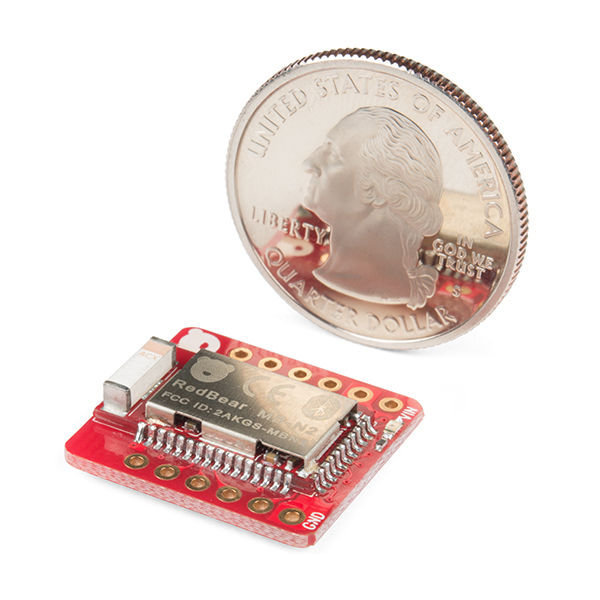

  • 最小的BLE開發板,只有18.5mm x 21.0mm
  • Nordic nRF51822 SoC支持BLE Central和BLE Peripheral角色
  • 超低功耗
  • 支持1.8V至3.3V的電壓
  • 軟件開發使用mbed.org,GCC,Keil或Arduino
  • 許多圖書館和例子可用
  • 使用我們的MK20 USB板或空中下載輕鬆實現固件下載(即將推​​出)
  • 使用我們的免費Android應用和iOS應用程序

開發藍牙智能啟用的“配件”(附件設備+配套應用程序)比以往任何時候都容易。您可以快速製作物聯網(IoT)和其他有趣項目的原型和演示目標。BLE Nano可以在1.8V至3.3V之間工作,因此它可以與許多電子元件配合使用。

當前支持的BLE中央設備:

iOS 7或8

  • iPhone 4s
  • iPhone 5/6(所有型號)
  • iPod touch 5
  • iPad 3/4 / mini / Air

Android 4.3或更高版本(4.4推薦用於穩定)與藍牙4.0硬件支持

Windows Phone 8.1

  • 諾基亞Lumia 630
  • (請報告任何其他Windows Phone設備支持)

帶有內置藍牙4.0或USB加密狗的Windows 8.1

Mac OSX 10.9.2內置藍牙4.0或USB加密狗

Linux與BlueZ 5.1內置藍牙4.0或USB加密狗

原廠技術文件與範例

板載LED連接到引腳19(P0_19)。

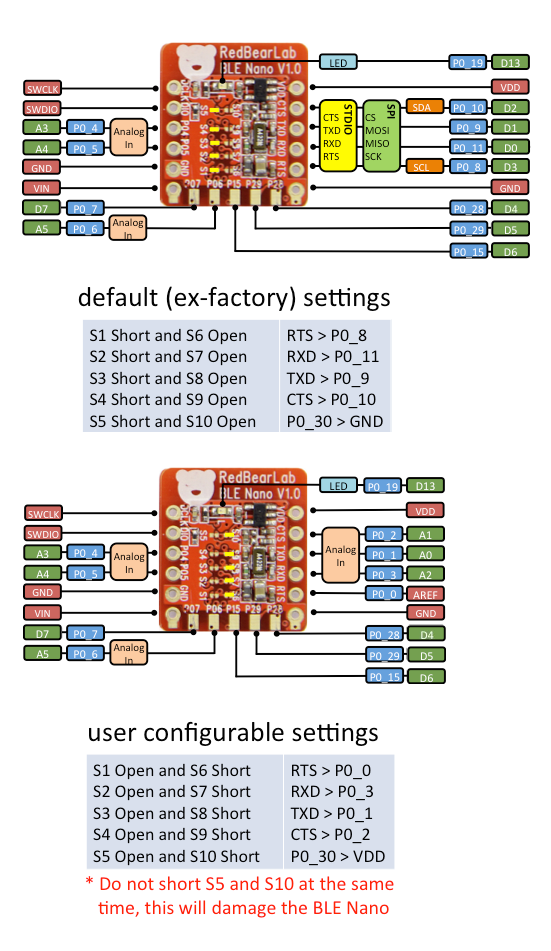

引腳30(P0_30)用作信號引腳。如果短路開關S5但開關S10斷開,引腳30將為GND(低電平); 如果短S10但是斷開S5,引腳30將為VDD(高電平)。開發人員可以根據引腳30的狀態對固件做出適當的決定; 一些Nordic的固件檢測這個來決定哪個引腳用作串行(UART)引腳。

開關S1至S4和S6至S9用於選擇要用作UART連接(RTS,RXD,TXD和CTS)的引腳。默認情況下,它們連接到p8到p11,大多數北歐固件使用此設置,例如其Packet Sniffer固件。如果您想為您的項目提供更多的模擬引腳,您可以考慮將串行接口路由到p0到p3。


MK20 USB板

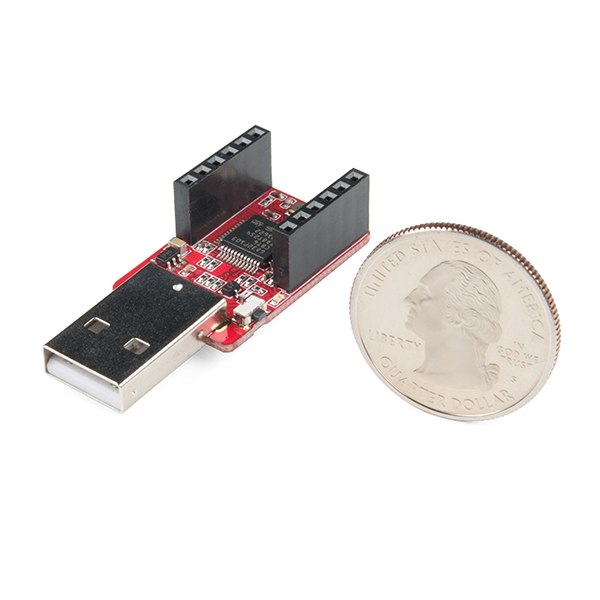

MK20(Freescale MK20DX128VFM5)USB板作為加密狗,它從USB端口接受5V,並通過可用於為BLE Nano供電的板載LDO調節到3.3V。它在您的計算機上顯示為串行端口和可移動的大容量存儲磁盤。請參閱BLE Nano入門指南,了解如何使用MK20 USB板部署固件。

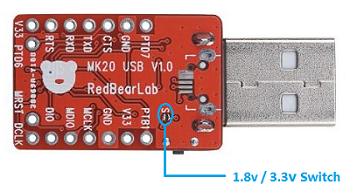

由於BLE Nano可以工作在1.8V以下,所以我們設計了MK20 USB板,運行在1.8V,簡單的開關S,那麼調節器就會輸出1.8V。這將允許您的BLE Nano使用1.8V組件。

RedBearLab BLE Nano Kit v2 – nRF52832

The BLE Nano v2 from RedBearLab is the smallest Bluetooth 4.2/5.0 Low Energy (BLE) development board on the market. With the included DAPLink USB in this kit, you’ll be able to deploy firmware to BLE Nano v2 even easier. At each BLE Nano’s core is a NordicnRF52832, an ARM Cortex-M4F System on Chip (SoC), plus BLE capable of running at 64MHz with ultra low power consumption. The RedBearLab BLE Nano also supports numerous different wireless devices running iOS 7/8, Android 4.3 or higher, and Windows Phone 8.1.

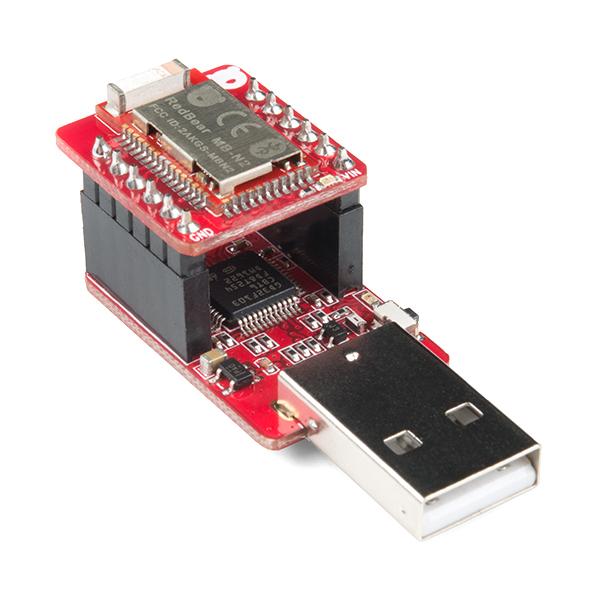

The DAPLink board functions as a USB dongle, accepting 5V from the USB port and regulating it to 3.3V via the onboard LDO, which can be used to power RedBearLab BLE Nano v2. When plugged into your computer, the USB board will appear as both a serial port and a removable mass storage disk.

Developing a Bluetooth Smart-enabled ‘appcessory’ (accessory device + companion application) is easier than ever. You can quickly produce prototypes and demos targeted for Internet of Things (IoT) and other interesting projects. The RedBearLab BLE Nano v2 can operate under 1.8V to 3.6V, making it able to work in conjunction with a wide variety of electronic components. Since the RedBearLab BLE Nano v2 can work as low as 1.8V, the DAPLink USB board has been designed to run at 1.8V as well. All you need to do to get the USB board to run at 1.8V is short the switch S. Then the regulator will output 1.8V instead, allowing your Nano to work with applicable components.
