Raspberry Pi COMPUTE MODULE IO BOARD V3 樹莓派最新產品

NT$4,952 NT$4,552 未稅

Raspberry Pi 三代 compute module I/O BOARD V3 樹莓派最新產品

樹莓派也同時推出運算模組IO控制版V3(Compute Module IO Board V3, CMIO3),為有意設計運算模組的人提供模版協助建造測試。工業電腦模組 3代  IO板(CMIO V3)適用於Compute Module 3或Compute Module 3 Lite的開發。此外,IO板還有一個SD卡插槽來支持Compute Module Lite 3。要開始開發,請將Compute Module 3或Compute Module 3 Lite插入IO板。IO板提供必要的電源,設置Raspbian並對模塊進行編程。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Raspberry Pi 三代 COMPUTE MODULE IO BOARD V3 工業電腦模組

樹莓派最新產品

樹莓派也同時推出運算模組IO控制版V3(Compute Module IO Board V3, CMIO3),為有意設計運算模組的人提供模版協助建造測試。工業電腦模組 3代  IO板(CMIO V3)適用於Compute Module 3或Compute Module 3 Lite的開發。此外,IO板還有一個SD卡插槽來支持Compute Module Lite 3。要開始開發,請將Compute Module 3或Compute Module 3 Lite插入IO板。IO板提供必要的電源,設置Raspbian並對模塊進行編程。

  • 2 個60 個接腳,一個有60個接腳,可以程式化控制的接腳由GPIO1到 GPIO45。
  • 2 個micro USB type B
  • 1 個USB type A
  • 2 個 CSI 接口給攝影機
  • 2 個 DSI接口給顯示面板
  • 1 個 HDMI 接口
  • 1 個 Micro USB 的電源接頭

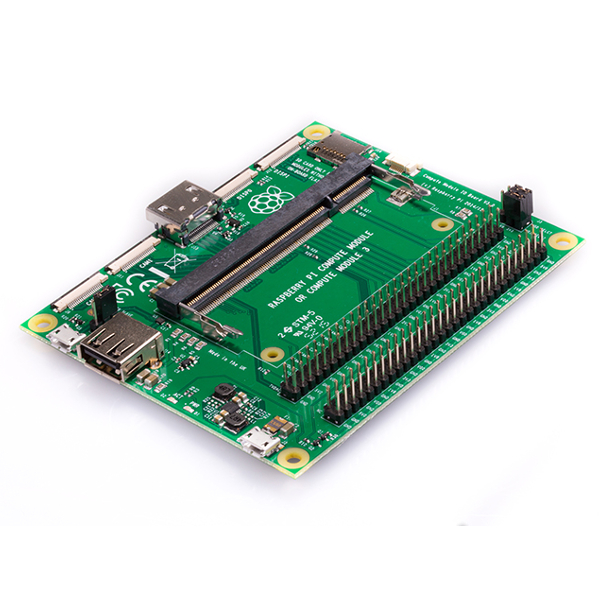

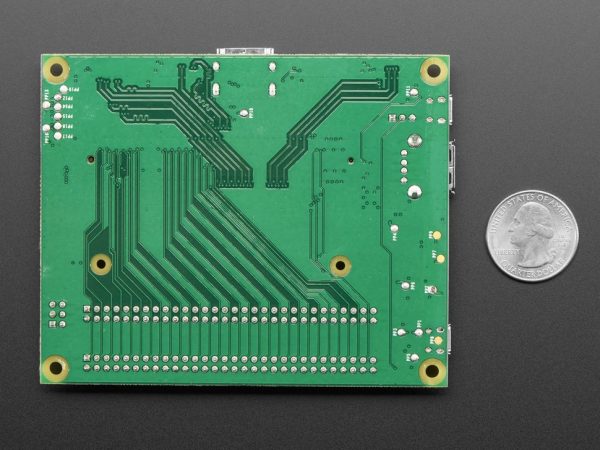

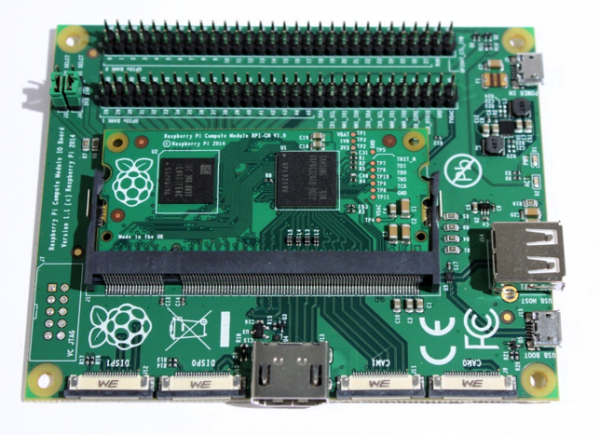

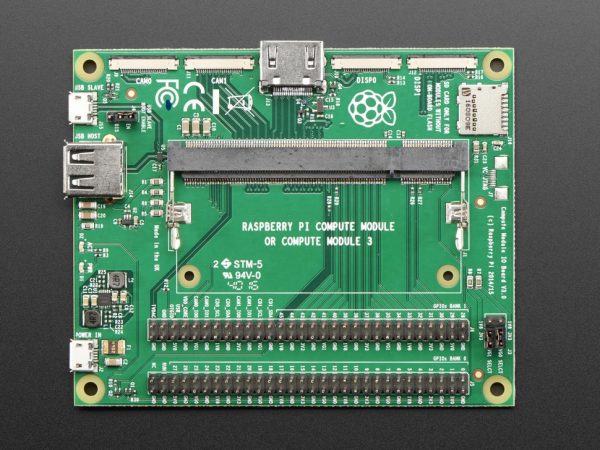

The Compute Module IO Board V3 is a development kit for those who wish to make use of the Raspberry Pi in a more flexible form factor, intended for industrial applications. The IO Board V3 is made for developing with CM3, CM3L, and CM1. (This kit replaced the original Compute Module IO Board in January 2017).

This item is just the I/O board, and does not contain a matching Compute Module. The Compute Module contains the guts of a Raspberry Pi 3 (the BCM2837 processor and 1GB RAM) but does not have any easy-to use ports for development. That’s where this IO Board comes in!

The accompanying IO Board is a simple, open-source breakout board that you can plug a Compute Module into. The board hosts 120 GPIO pins, an HDMI port, a USB port, two camera ports, and two display ports. Designing the Module into a custom system should be relatively straightforward as the Raspberry Pi Foundation has put all the tricky bits onto the Module itself, and you have the freedom to add extra components and place parts exactly where your product needs them.

Once you’ve got your design and peripherals chosen for use, you can take the I/O board design files, remove all the components you aren’tusing, and get the perfect Pi design for the Compute Module!
