Raspberry Pi Compute module 3 樹莓派3代工業單板電腦 eMMC 版本 非閹割 lite 版本

-17%

Raspberry Pi Compute module 3 樹莓派3代工業單板電腦 eMMC 版本 非閹割 lite 版本

NT$1,414 NT$1,171 未稅

Raspberry Pi Compute module 3 樹莓派3代工業單板電腦 全功能板 物聯網設備和家庭和工廠自動化最佳利器

Raspberry Pi Compute module 3 樹莓派3代工業單板電腦 配備了 1.2GHz 的 BCM2837 處理器,1GB RAM 和 4G eMMC, 樹莓派(Raspberry Pi)發佈了一款新的單板運算模組 Compute Module 3 (CM3) ,這是自 2014 年初代 CM1 後首次更新。樹莓派目前的主要型號包括Model A、Model B、運算模組(Compute Module),以及只要5美元的Zero,其中運算模組是針對工業用的單板電腦,利用 DDR2 SO-DIMM 介面設計。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Raspberry Pi Compute module 3 樹莓派3代工業單板電腦 全功能板 物聯網設備和家庭和工廠自動化最佳利器

注意:本開發板為 eMMC 版本 非閹割 lite 版本

樹莓派3代工業單板電腦 配備了 1.2GHz 的 BCM2837 處理器,1GB RAM 和 4G eMMC, 樹莓派(Raspberry Pi)發佈了一款新的單板運算模組 Compute Module 3 (CM3) ,這是自 2014 年初代 CM1 後首次更新。樹莓派目前的主要型號包括Model A、Model B、運算模組(Compute Module),以及只要5美元的Zero,其中運算模組是針對工業用的單板電腦,利用 DDR2 SO-DIMM 介面設計。

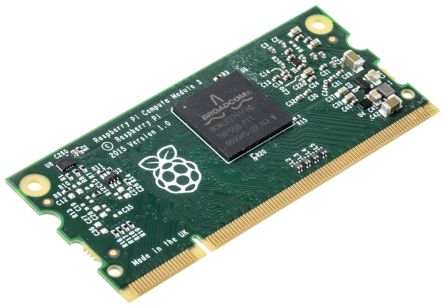

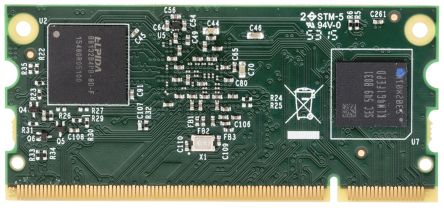

Raspberry Pi Compute Modules 3

The Raspberry Compute Modules 3 are suitable for designers who are happy with Raspberry Pi3 functionality but require a smaller form factor (67.6 mm x 31 mm) for their embedded designs.

These modules are DDR2-SODIMM, mechanically-compatible System on Modules (SoMs) containing a BCM2837 processor System on Chip (SoC) with 1 Gbyte LPDDR2 RAM and 4 Gbytes eMMC Flash memory. Also these modules have extra input/output (I/O) interfaces in addition to the Raspberry Pi model A/B boards.

The Compute Module is a Raspberry Pi in a more flexible form factor, intended for industrial application. CM3 is the Raspberry Pi 3-based revision of the original Compute Module.

The Compute Module contains the guts of a Raspberry Pi 3 (the BCM2837 processor and 1GB RAM) as well as a 4GB eMMC Flash device (which is the equivalent of the SD card in the Pi). The Pi 3 has a processor speed of 1.2GHz and runs at roughly 10 times the speed of the Pi 1 due to its quad-core CPU. This is all integrated on to a small 67.6mm x 31mm board which fits into a standard DDR2 SODIMM connector (the same type of connector as used for laptop memory). The Flash memory is connected directly to the processor on the board, but the remaining processor interfaces are available to the user via the connector pins. You get the full flexibility of the BCM2837 SoC (which means that many more GPIOs and interfaces are available as compared to the Raspberry Pi), and designing the Module into a custom system should be relatively straightforward as we’ve put all the tricky bits onto the Module itself.
