Particle Sensor Breakout – MAX3010 SparkFun 原裝進口

NT$790 NT$571 未稅

Particle Sensor Breakout – MAX3010  SparkFun 原裝進口

SparkFun MAX30105 Particle Sensor Breakout 粒子傳感器是一個靈活,強大的傳感器,可以檢測距離,心率,粒子檢測甚至眼睛的眨眼。MAX30105配備了三個LED以及非常靈敏的光子探測器。這個想法是脈沖不同的LED,然後檢測什麼發光。根據反映的簽名,可以檢測不同類型的顆粒或材料(如氧氣或火焰中的煙霧)。MAX30105採用紅色LED,綠色LED和紅外(紅外)LED,可用於現場感應,心跳圖和心率監測等多種用途,包括Pulse Oximetry。MAX30105的工作電壓為5V,可與3.3V和5V微控制器通訊。我們還編寫了一個用於MAX30105分組的Arduino庫,該庫用於處理所有I  C通信,位移,寄存器寫入和樣本讀取。

尚有庫存

  • 商品說明
  • 評論 (0)

商品說明

Particle Sensor Breakout – MAX3010  SparkFun 原裝進口

SparkFun MAX30105 Particle Sensor Breakout 粒子傳感器是一個靈活,強大的傳感器,可以檢測距離,心率,粒子檢測甚至眼睛的眨眼。MAX30105配備了三個LED以及非常靈敏的光子探測器。這個想法是脈沖不同的LED,然後檢測什麼發光。根據反映的簽名,可以檢測不同類型的顆粒或材料(如氧氣或火焰中的煙霧)。MAX30105採用紅色LED,綠色LED和紅外(紅外)LED,可用於現場感應,心跳圖和心率監測等多種用途,包括Pulse Oximetry。MAX30105的工作電壓為5V,可與3.3V和5V微控制器通訊。我們還編寫了一個用於MAX30105分組的Arduino庫,該庫用於處理所有I  C通信,位移,寄存器寫入和樣本讀取。

Particle Sensor Breakout – MAX3010 規格

  • 內置紅,紅,綠LED
  • 5V操作(允許3.3V,但綠色LED不能保證運行)
  • 板載1.8V調節和I 2 C接口電路
  • 靈敏度可配置為7.81pA
  • 3200Hz最大採樣率
  • 內置32個採樣FIFO(先進先出)
  • 應用包括存在檢測,距離感測(最大18“),脈搏血氧飽和度,血氧飽和度水平(SpO2),煙霧和粒子檢測

文件:

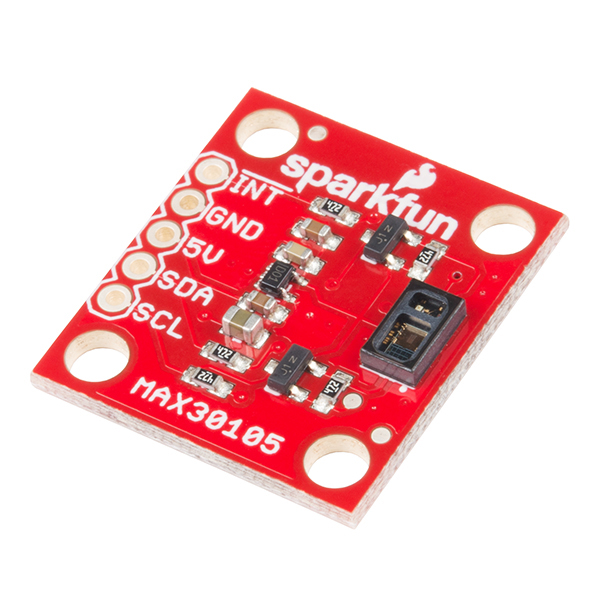

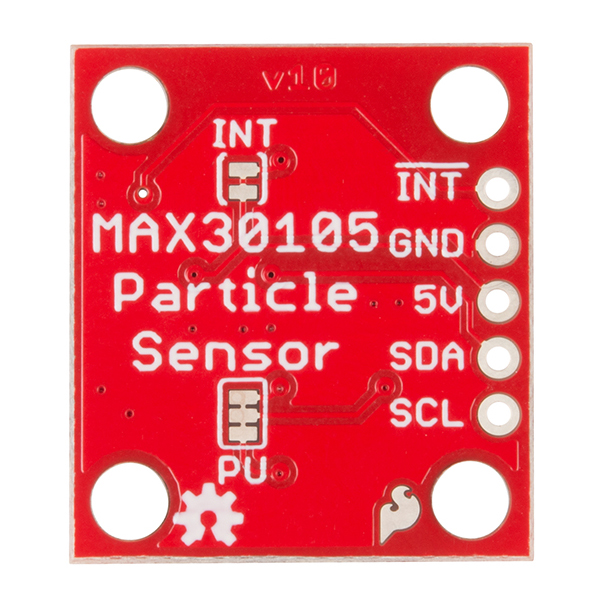

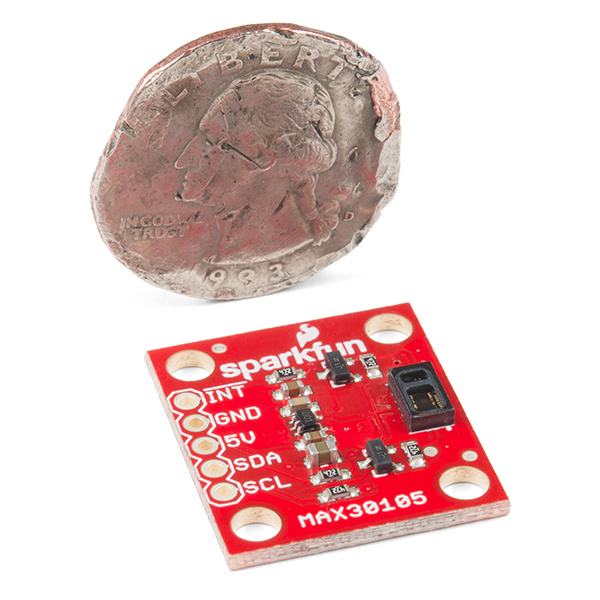

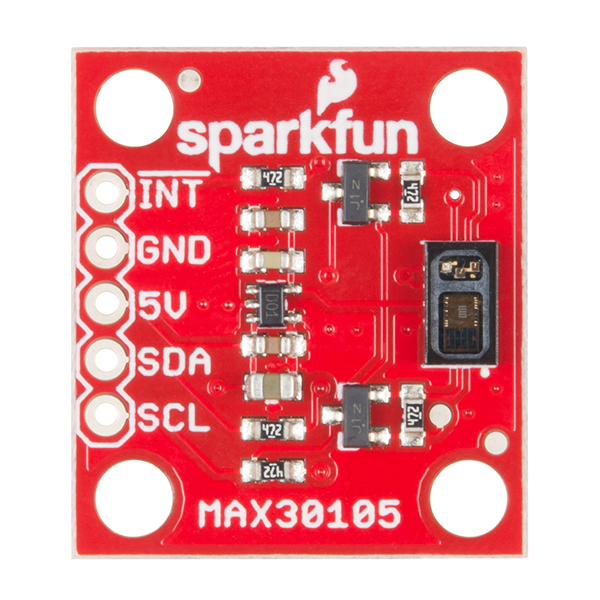

SparkFun Particle Sensor Breakout – MAX30105

Description: The SparkFun MAX30105 Particle Sensor is a flexible, powerful sensor enabling sensing of distance, heart rate, particle detection and even the blinking of an eye. The MAX30105 has been equipped with three LEDs as well as a very sensitive photon detector. The idea is to pulse the different LEDs, then detect what shines back. Based on the reflected signature it’s possible to detect different types of particles or materials (such as oxygenated blood or smoke from a fire).

The MAX30105 utilizes a red LED, a green LED, and an IR (Infrared) LED for presence sensing, heart-beat plotting and heart-rate monitoring among its multitude of uses, including Pulse Oximetry. The MAX30105 is designed to operate at 5V and can communicate with both 3.3V and 5V microcontrollers. We’ve also written an Arduino library for the MAX30105 Breakout which takes care of all of the I2C communication, bit shifting, register writing and sample reading.

Features:

  • Built-in Red, IR, and Green LEDs
  • 5V operation (3.3V is allowed, but green LED is not guaranteed to operate)
  • Onboard 1.8V regulation and I2C interface circuitry
  • Sensitivity configurable down to 7.81pA
  • 3200Hz maximum sample rate
  • Built-in 32 sample FIFO (First In, First Out)
  • Applications include presence detection, distance sensing (18″ max), pulse oximetry, blood oxygen saturation level (SpO2), smoke and particle detection

Documents:
